9027 STE (954170236-A) - Husqvarna 27" Snow Blower (2004-09) AUGER HOUSING & IMPELLER Parts Diagram

27" Snow Blower

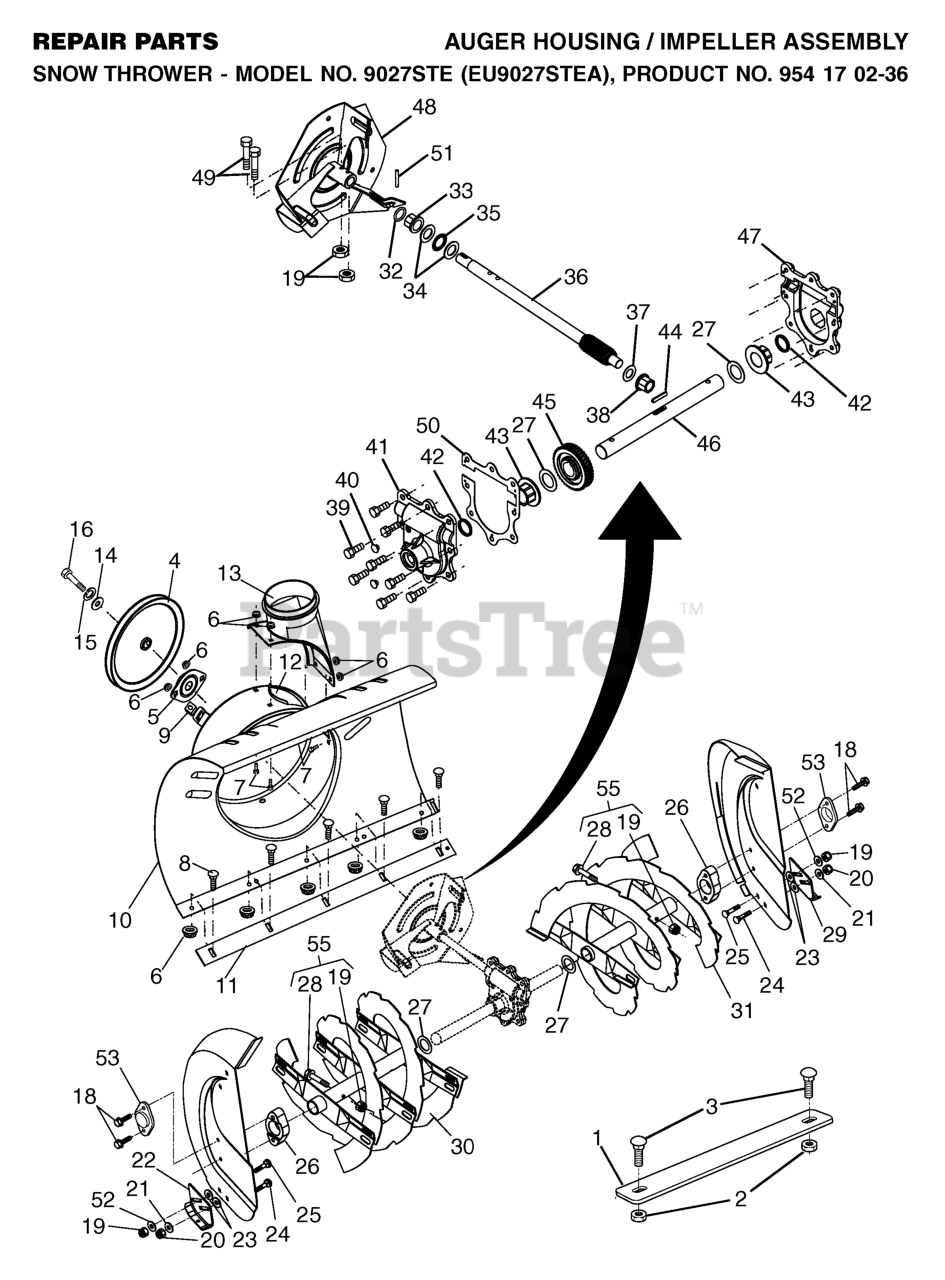

AUGER HOUSING & IMPELLER Parts Diagram

  • Title
29

Husqvarna 532184093

SKID PLATE LH
(Superseded to 532174762)

$9.49

$

In Stock, only 2 left!

0

22

Husqvarna 532184094

SKID PLATE RH
(Superseded to 532436125)

$

$

Not available

14

Husqvarna 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532174684

BEARING TRUST 3/4 NTA-1220

$9.99

$

In Stock, only 2 left!

0

1

Husqvarna 532188703

WEIGHT, AUGER HOUSING 27
(Superseded to 532182515)

$97.99

$

Usually ships in 3-10 days

0

20

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532191079

PULLEY, IMPELLER
(Superseded to 532427071)

$

$

Not available

42

$

$

Not available

43

Husqvarna 532174701

BUSHING FLANGE 1"

$

$

Not available

13

Husqvarna 532175322

BASE DISCHARGE CHUTE
(Superseded to 585056901)

$11.99

$

In Stock, only 4 left!

0

41

Husqvarna 532174688

HOUSING.GEARBOX.RH.SNOW

$

$

Not available

11

Husqvarna 532184097

BAR, SCRAPER 27"
(Superseded to 532404932)

$11.99

$

In Stock, only 2 left!

0

27

Husqvarna 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

34

Husqvarna 532174681

WASHER, THRUST 3/4

$14.99

$

In Stock, only 3 left!

0

46

Husqvarna 532174657

SHAFT, AUGER

$68.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532188170

BEARING RETAINER, PLASTIC

$9.99

$

In Stock, only 1 left!

0

5

Husqvarna 532188909

BEARING FLANGE

$28.99

$

In Stock, Qty 6

0

$9.49

$

In Stock, only 2 left!

0

45

Husqvarna 532174659

WORM GEAR
(Superseded to 598831601)

$265.99

$

In Stock, only 3 left!

0

50

Husqvarna 532175311

GASKET.AUGER.GEARBOX

$9.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532187925

BEARING.BALL.AUGER.SHAFT

$62.99

$

In Stock, only 2 left!

0

33

Husqvarna 532174700

BUSHING FLANGE 3/4
(Superseded to 532407769)

$9.49

$

In Stock, only 1 left!

0

10

Husqvarna 532188211

AUGER HOUSING WELDMENT
(Superseded to 532188167)

$

$

Not available

49

Husqvarna 874780426

SCREW.HEX.HD1/4-20X
(Superseded to 596322101)

$3.99

$

In Stock, Qty 13

0

18

Husqvarna 532179582

SCREW, HEX HD 5/16X1

$7.49

$

In Stock, only 3 left!

0

25

Husqvarna 532185600

SHOULDER BOLT

$4.99

$

In Stock, only 2 left!

0

47

Husqvarna 532174687

LH GEARBOX HOUSING
(Superseded to 532407765)

$26.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874950512

Screw, Hex Head 5/16-18 x 3/4

$4.99

$

In Stock, only 3 left!

0

6

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532174683

WASHER, THRUST 5/8

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 532192994

AUGER ASM 27" RH
(Superseded to 532192105)

$319.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532166785

LOCKNUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 1 left!

0

51

Husqvarna 532184205

PIN, ROLL 3/16 X 1-1/8
(Superseded to 532007836)

$4.99

$

In Stock, Qty 7

0

31

Husqvarna 532192993

AUGER ASM 27" LH
(Superseded to 532435542)

$

$

Not available

23

Husqvarna 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 12

0

44

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

38

Husqvarna 532174686

BUSHING.FLANGE.(.625X.75)

$

$

Not available

15

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

3

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 2 left!

0

39

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 872270506

BOLT
(Superseded to 872110506)

$7.49

$

In Stock, Qty 19

0

7

Husqvarna 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 13

0

28

Husqvarna 532192090

BOLT.SHOULDER.SHEAR.1/4-20.
(Superseded to 588077502)

$5.99

$

In Stock, Qty 8

0

9

Husqvarna 532178820

NUT, CAGE 3/8-16

$7.49

$

In Stock, only 2 left!

0

40

Husqvarna 532086447

PLUG.AUGER.GEAR.BOX.SNOW

$

$

Not available

55

Husqvarna 532188243

KIT, BOLT, SHEAR
(Superseded to 601001986)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 597433002)

$4.99

$

In Stock, Qty 13

0

48

Husqvarna 532184105

IMPELLER ASSY
(Superseded to 532175321)

$78.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532053847

WASHER
(Superseded to 819091214)

$10.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532174660

SHAFT, IMPELLER
(Superseded to 532407757)

$102.99

$

Usually ships in 3-10 days

0
