902501 (FT 524 R) - Ariens 24" Front Tine Tiller, 5hp Tecumseh (SN: 000101 & Above) Electric Start And Shield Extensions Parts Diagram

24" Front Tine Tiller, 5hp Tecumseh

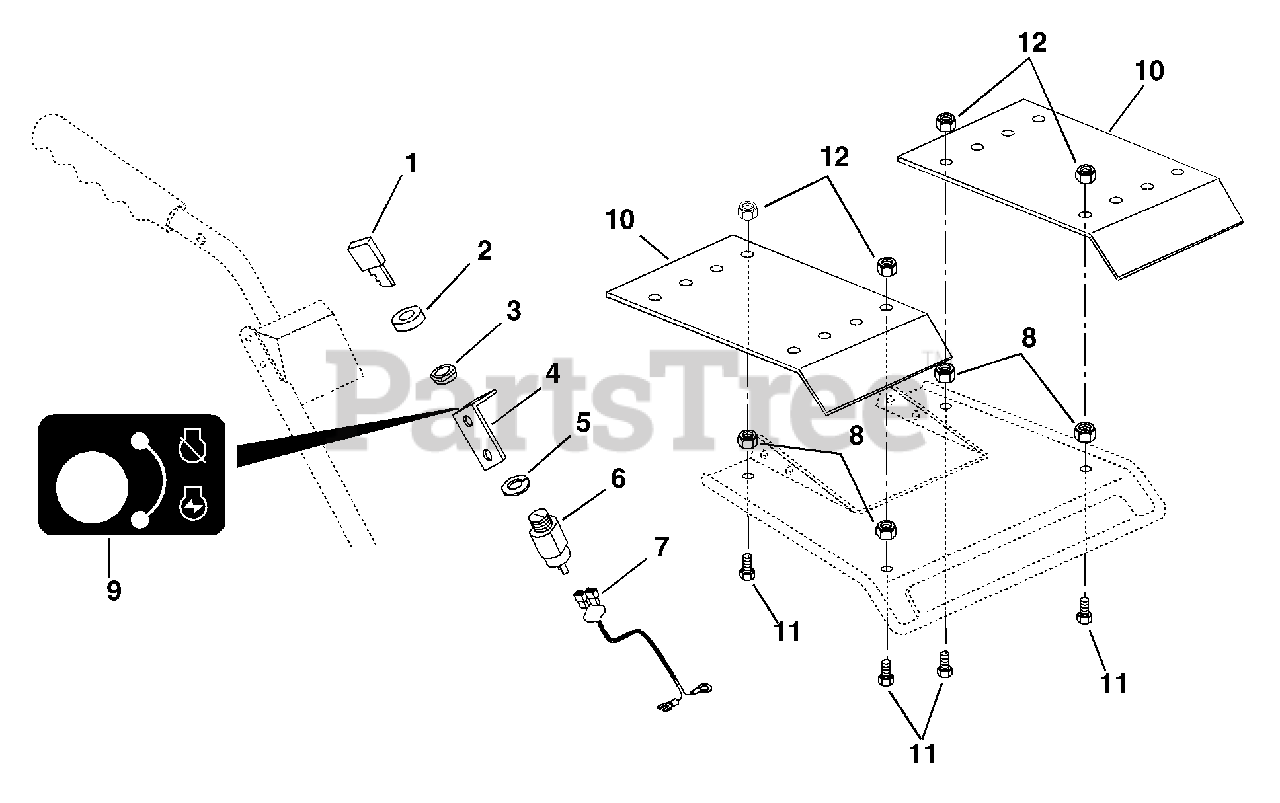

Electric Start And Shield Extensions Parts Diagram

  • Title
1

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

2

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 06517300

NUT-PANEL .625-32 GRECO

$7.99

$

Usually ships in 4-12 days

0

4

Ariens 00247000

BRACKET, COMMON

$3.49

$

Usually ships in 4-12 days

0

5

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 02456500

KEY SWITCH ASSEMBLY
(Superseded to 52406900)

$39.99

$

Usually ships in 4-12 days

0

7

Ariens 00246000

WIRE HARNESS 301

$

$

Not available

8

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07712800

DECAL - TILLER SWITCH

$

$

Not available

10

Ariens 00246700

SHIELD EXTENSION

$25.99

$

Usually ships in 4-12 days

0

11

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0
