902304 (FT 516) - Ariens 16" Front Tine Tiller, 5hp Tecumseh (SN: 000101 & Above) Frames & Linkage Parts Diagram

16" Front Tine Tiller, 5hp Tecumseh

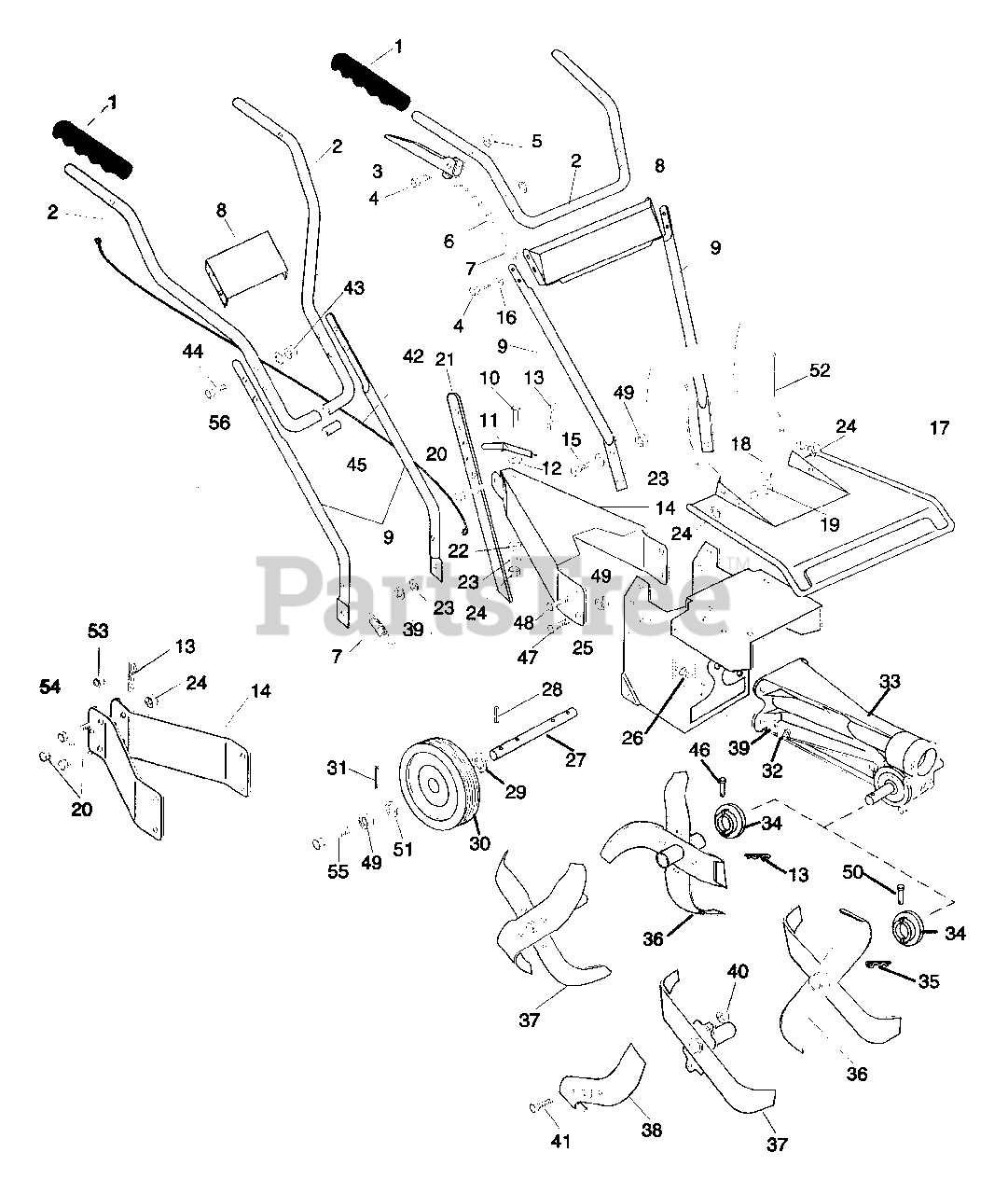

Frames & Linkage Parts Diagram

  • Title

1

Ariens 07500600

GRIP
(Superseded to 07500113)

Note: (029,303)

$

$

Not available

1

Ariens 07518600

HANDLE GRIP- BLACK PVC-SM1217

Note: (030,304)

$15.99

$

Usually ships in 4-12 days

0

2

Ariens 00243251

RIGHT UPPER HANDLEBAR

Note: (030,304)

$

$

Not available

2

Ariens 00243151

LEFT UPPER HANDLEBAR

Note: (030,304)

$

$

Not available

2

Ariens 00234700

HANDLEBAR
(Superseded to 50203300)

Note: (029)

$

$

Not available

3

Ariens 00248700

HANDLE, CLUTCH

Note: (029,303)

$

$

Not available

4

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00227000

CLUTCH CHAIN

Note: (029,303)

$18.99

$

In Stock, only 4 left!

0

7

Ariens 08300800

SG-TENS .080X.25X31.6 WLD 35

Note: (029,303)

$

$

Not available

7

Ariens 08309900

SG-TENS .092X.69X1.75 WLD 54

Note: (030,304)

$

$

Not available

8

Ariens 00231400

HANDLEBAR PANEL

Note: (029,303)

$

$

Not available

8

Ariens 00283800

NAME PLATE

Note: (030,304)

$

$

Not available

9

Ariens 00203400

LOWER HANDLE BAR
(Superseded to 00203451)

Note: (029,303)

$77.99

$

In Stock, only 2 left!

0

9

Ariens 00234000

HANDLEBAR, LOWER
(Superseded to 00234051)

Note: (030,304)

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 00239300

HANDLEBAR, LOWER
(Superseded to 00239351)

Note: (030,304)

$

$

Not available

10

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 00231000

RETAINER CLIP
(Superseded to 00231059)

Note: (029,303)

$

$

Not available

12

Ariens 01022900

WAVE WASHER .515 X 1.00 X .125

Note: (029,303)

$

$

Not available

13

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

Note: (029,303)

$2.99

$

In Stock, only 2 left!

0

13

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

Note: (030,304)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 00231700

DEPTH STICK HOLDER
(Superseded to 50203500)

Note: (029,303)

$

$

Not available

14

Ariens 00239459

DEPTH STICK HOLDER
(Superseded to 00239400)

Note: (030,304)

$

$

Not available

15

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 00246300

TINE HOOD
(Superseded to 50203600)

$

$

Not available

18

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 00220000

CLEVIS PIN .437/.431X1.50 YWZC
(Superseded to 06815600)

Note: (029,303)

$

$

Not available

20

Ariens 06811600

PIN-CLEV .438X.958 PL

Note: (030,304)

$

$

Not available

21

Ariens 00229859

DEPTH STICK
(Superseded to 00229851)

Note: (029,303)

$54.99

$

Usually ships in 4-12 days

0

21

Ariens 00239559

DEPTH STICK
(Superseded to 00239500)

Note: (030,304)

$27.00

$

Usually ships in 4-12 days

0

22

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

Note: (029,303)

$14.99

$

Usually ships in 4-12 days

0

23

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (029,303)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 00219000

FRAME
(Superseded to 00242959)

Note: (029,303)

$

$

Not available

25

Ariens 00242959

FRAME

Note: (030,304)

$

$

Not available

26

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

Note: (029,303)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

Note: (030,304)

$

$

Not available

27

Ariens 00229300

AXLE ROD

Note: (029,303)

$48.99

$

Usually ships in 4-12 days

0

28

Ariens 05800200

PIN-ROLL .125X1.38

Note: (029,303)

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 00229400

SPACER .76 X .51 X .56

$19.99

$

Usually ships in 4-12 days

0

30

Ariens 07104000

WHL

Note: (029,303)

$

$

Not available

30

Ariens 07126500

T/WHL ASSY
(Superseded to 51116000)

Note: (030,304)

$67.99

$

In Stock, only 1 left!

0

31

Ariens 06712600

@PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 50202400

GEAR CASE - CAST IRON

Note: (029,303)

$

$

Not available

33

Ariens 50202800

GEAR CASE-ALUM-902806,07,08,09

Note: (808,) (030,304)

$

$

Not available

34

Ariens 00125200

DUST CAP

Note: (029,303)

$26.99

$

In Stock, Qty 6

0

34

Ariens 00283400

DUST CAP

Note: (030,304)

$9.99

$

Usually ships in 4-12 days

0

35

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

36

Ariens 00238200

RH INNER TINE SPOOL

Note: (029,303)

$

$

Not available

36

Ariens 00238300

LH INNER TINE SPOOL

Note: (029,303)

$94.99

$

In Stock, only 1 left!

0

36

Ariens 00236800

R.H. INNER TINE SPOOL

Note: (030,304)

$

$

Not available

36

Ariens 00238600

L.H. INNER TINE SPOOL
(Superseded to 00238651)

Note: (030,304)

$219.99

$

Usually ships in 4-12 days

0

37

Ariens 00238400

LH OUTER TINE SPOOL

Note: (029,303)

$

$

Not available

37

Ariens 00238500

RH OUTER TINE SPOOL

Note: (029,303)

$161.99

$

In Stock, only 1 left!

0

37

Ariens 00238751

R H OUTER TINE SPOOL

Note: (030,304)

$81.99

$

Usually ships in 4-12 days

0

37

Ariens 00238851

L H OUTER TINE SPOOL

Note: (030,304)

$219.99

$

Usually ships in 4-12 days

0

38

Ariens 00238100

TURBO-TINE
(Superseded to 00238151)

Note: (029,303)

$

$

Not available

38

Ariens 00238000

TURBO-TINE
(Superseded to 00238051)

Note: (029,303)

$27.99

$

Usually ships in 4-12 days

0

39

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

Note: (029,303)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 06536400

@NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

41

Ariens 05958700

@BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

42

Ariens 00239600

CLUTCH CABLE FORWARD

Note: (030,304)

$34.99

$

In Stock, only 1 left!

0

43

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (030,304)

$0.99

$

In Stock, Qty 10

0

44

Ariens 07003600

BLT-CRVD-HD .31-18X1.44 YWZC

Note: (030,304)

$

$

Not available

45

Ariens 00243300

HANDLEBAR INSERT

Note: (808,)

$

$

Not available

46

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

Note: (030,304)

$3.49

$

Usually ships in 4-12 days

0

47

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (303,029)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (030,304)

$1.49

$

In Stock, Qty 20+

0

48

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0

49

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (030,304)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 00212300

CLEVIS PIN

Note: (029,303)

$3.49

$

In Stock, only 3 left!

0

51

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

52

Ariens 00240000

SHIELD

$5.99

$

Usually ships in 4-12 days

0

53

Ariens 00239900

SPACER .333X.520X.340

Note: (030,304)

$

$

Not available

54

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (030,304)

$1.49

$

In Stock, Qty 20+

0

55

Ariens 01117600

SHOULDER BOLT .50 X 1.51 YWZC

Note: (030,304)

$

$

Not available

56

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (030,304)

$0.99

$

In Stock, Qty 20+

0
