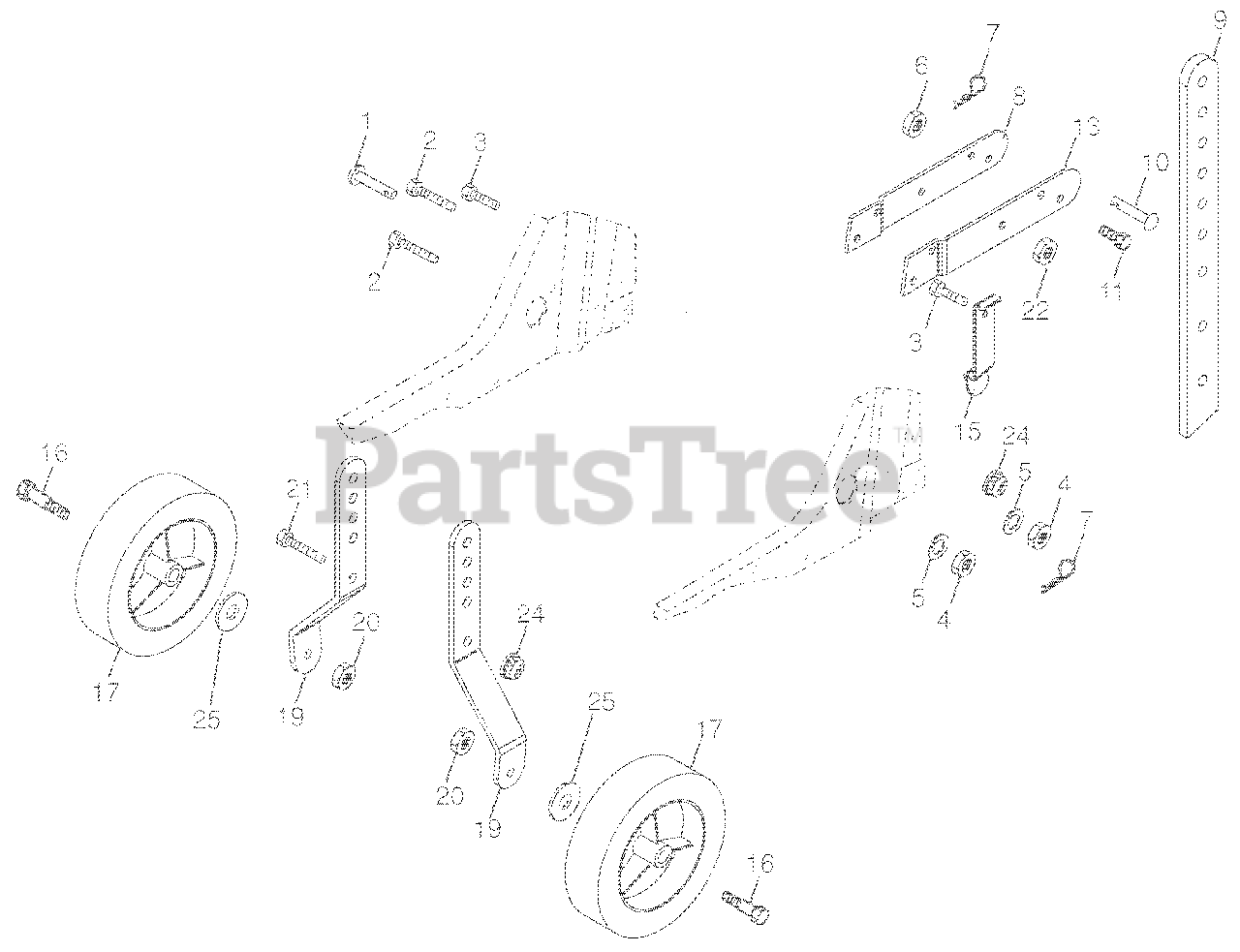

902032 (960860001-05) - Ariens 24" Front Tine Tiller Wheel And Depth Stake Assembly Parts Diagram

24" Front Tine Tiller

Wheel And Depth Stake Assembly Parts Diagram

  • Title

1

Ariens 21546837

Pin, Clevis

$

$

Not available

2

Ariens 21546806

Bolt, Hex Head 5/16-18 x 1-1/4
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

3

Ariens 21546915

Bolt, Hex Head 5/16-18 x 3/4
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 21546775

Nut, Hex 5/16-18

$

$

Not available

5

Ariens 21546002

Washer, Lock 5/16

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 21546787

Locknut, Washer Insert 3/8-16
(Superseded to 06535800)

$2.49

$

In Stock, only 2 left!

0

7

Ariens 21546742

Clip, Hairpin
(Superseded to 06712900)

$5.99

$

In Stock, Qty 11

0

8

Ariens 21546361

Support, Depth Stake, R.H.

$22.99

$

Usually ships in 4-12 days

0

9

Ariens 21546068

Stake, Depth

$

$

Not available

10

Ariens 21546743

Pin, Clevis

$7.49

$

Usually ships in 4-12 days

0

11

Ariens 21546816

Bolt, Hex Head 3/8-16 x 1-3/4
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 21546349

Support, Depth Stake, L.H.

$12.99

$

Usually ships in 4-12 days

0

15

Ariens 21546745

Spring, Stake

$

$

Not available

16

Ariens 21546063

Bolt, Shoulder

$7.49

$

Usually ships in 4-12 days

0

17

Ariens 21546555

Wheel

$

$

Not available

19

Ariens 21546836

Bracket, Wheel

$

$

Not available

20

Ariens 21546785

Nut, Hex, Crownlock 3/8-16

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 21546805

Bolt, Hex Head 5/16-18 x 1
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 21546786

Locknut, Washer Insert 5/16-18
(Superseded to 21546784)

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 21546796

Nut, Hex, Flangelock
(Superseded to 06500020)

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 21546289

Washer, 17/32 x 7/8 x 16 Ga.

$5.99

$

Usually ships in 4-12 days

0
