902032 (960860001-05) - Ariens 24" Front Tine Tiller Belt Guard And Pulley Assembly Parts Diagram

24" Front Tine Tiller

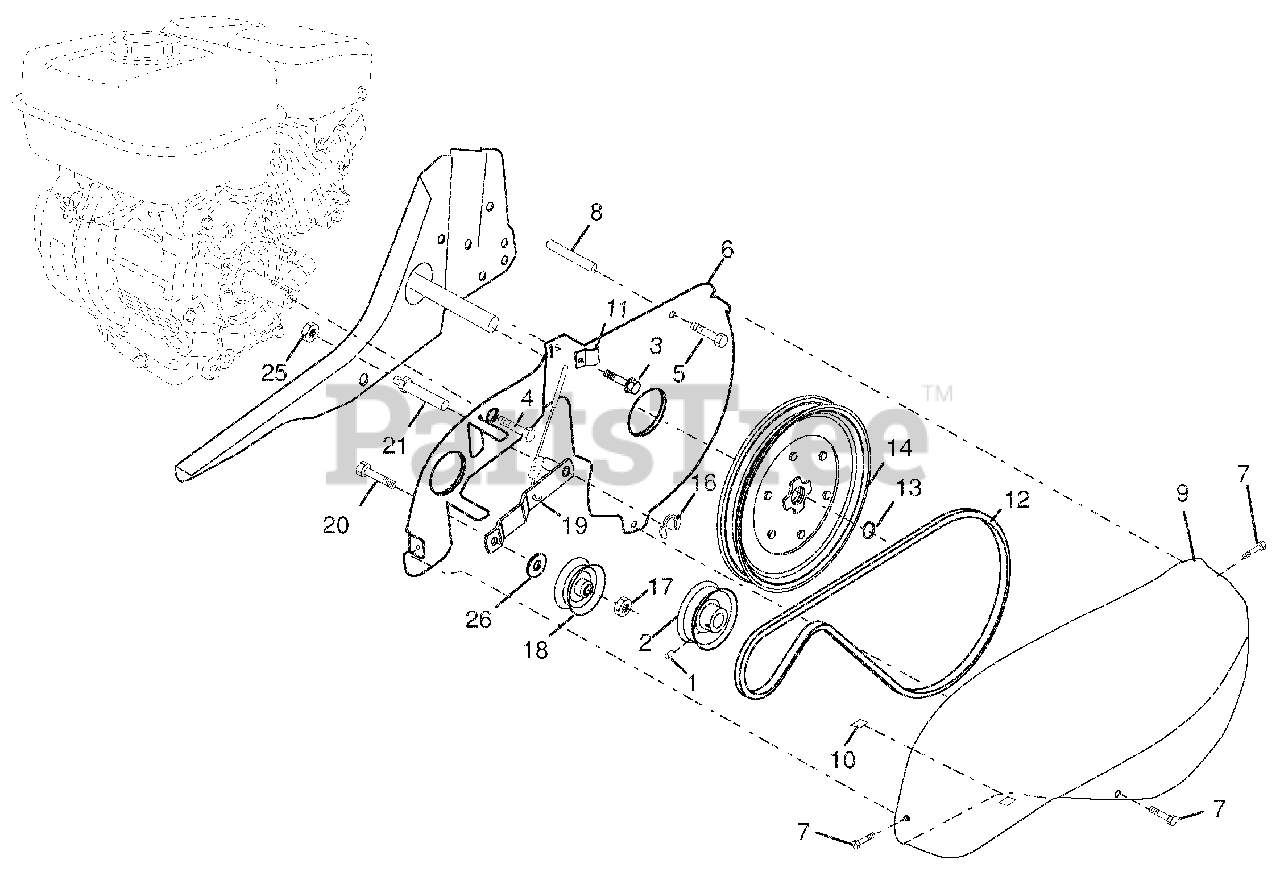

Belt Guard And Pulley Assembly Parts Diagram

  • Title

1

Ariens 21546545

Screw Set 5/16-18 x 3/8 Patch
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

2

Ariens 21546079

Sheave, Engine

$

$

Not available

3

Ariens 21547474

Screw, Self-Tapping

$

$

Not available

4

Ariens 21546813

Bolt, Hex Head 5/16-24 unf x 1

$

$

Not available

5

Ariens 21546198

Bolt, Thd Roller 1/4-20 x 2-1/

$

$

Not available

6

Ariens 21546700

Shield, Inner Belt Guard

$

$

Not available

7

Ariens 21546185

Screw Hex Wsh Hd #8-18 x 1/2

$

$

Not available

8

Ariens 21546096

Spacer Split

$

$

Not available

9

Ariens 21547630

GUARD, BELT

$31.99

$

Usually ships in 4-12 days

0

10

Ariens 21546040

Pad, Idler

$

$

Not available

11

Ariens 21546839

Clip, Cable

$

$

Not available

12

Ariens 21546835

V-Belt

$26.99

$

Usually ships in 4-12 days

0

13

Ariens 21546052

Ring, Retainer

$

$

Not available

14

Ariens 21546123

Sheave, Transmisison

$

$

Not available

16

Ariens 21546056

Ring, Klip

$6.49

$

Usually ships in 4-12 days

0

17

Ariens 21546908

Nut, Hex

$

$

Not available

18

Ariens 21548261

PULLEY, IDLER

$56.99

$

Usually ships in 4-12 days

0

19

Ariens 21548783

ARM, IDLER

$

$

Not available

20

Ariens 21548655

BOLT, 5/16-18 X 1 1/2

$

$

Not available

21

Ariens 21546039

Shaft, Idler Arm

$28.99

$

Usually ships in 4-12 days

0

25

Ariens 21546777

Nut, Hex, Jam 5/16-18

$

$

Not available

26

Ariens 21548784

WASHER, FLAT

$

$

Not available
