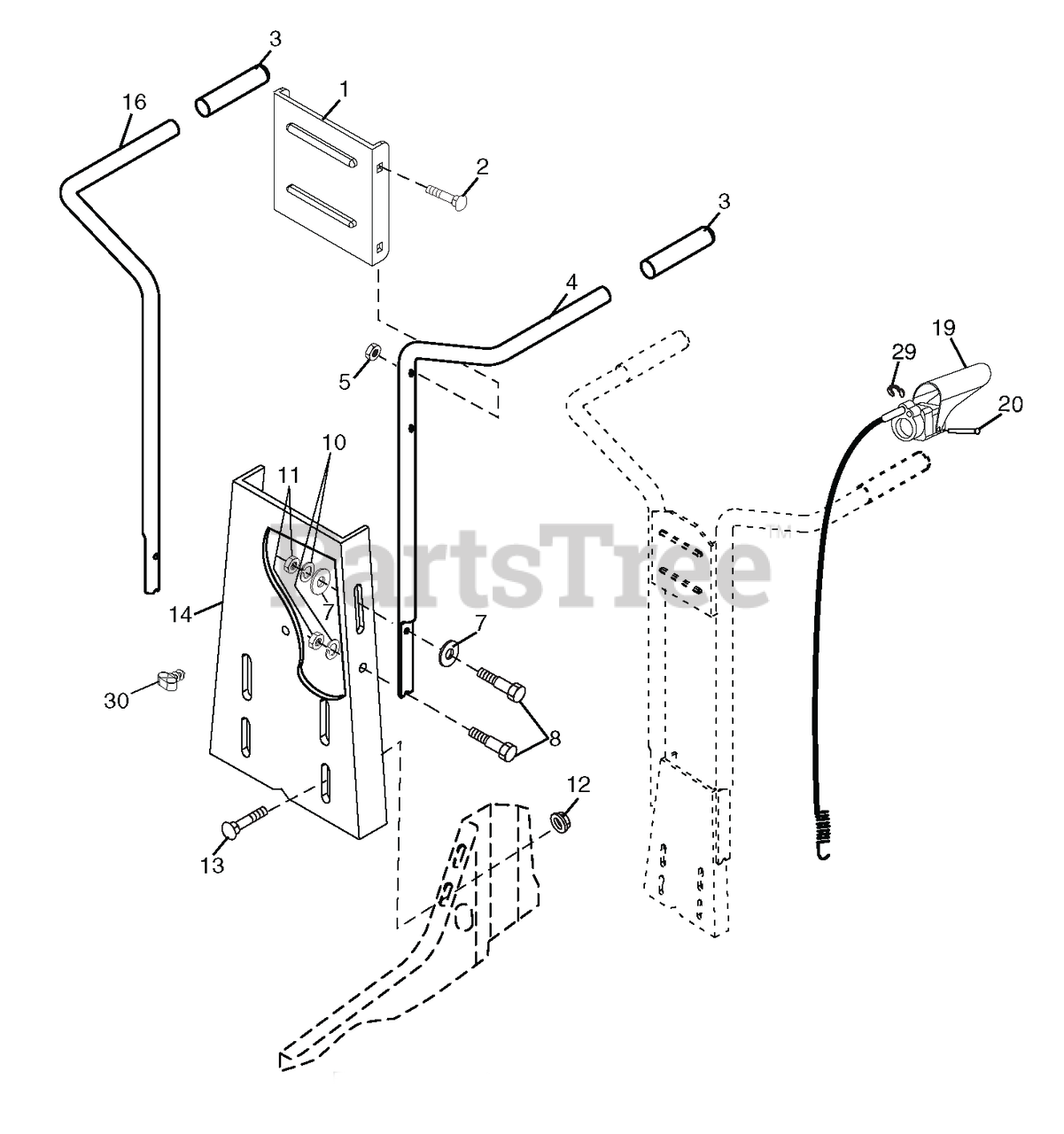

902032 (960860001-03) - Ariens 24" Front Tine Tiller Handle Assembly Parts Diagram

24" Front Tine Tiller

Handle Assembly Parts Diagram

  • Title
1

Ariens 21546089

Bracket, Handle

$

$

Not available

2

Ariens 21546771

Bolt, Carriage 5/16-18 x 1-1/2

$

$

Not available

3

Ariens 21546171

Grip, Handle

$4.99

$

In Stock, only 1 left!

0

4

Ariens 21546175

Handle, L.H.

$

$

Not available

5

Ariens 21546908

Nut, Hex

$

$

Not available

7

Ariens 21546281

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 21546806

Bolt, Hex Head 5/16-18 x 1-1/4
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

10

Ariens 21546002

Washer, Lock 5/16

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 21546775

Nut, Hex 5/16-18

$

$

Not available

12

Ariens 21546840

Nut, Hex, Flanged 5/16-18

$

$

Not available

13

Ariens 21546218

Bolt, Carriage, Gr. 5 5/16-18
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

14

Ariens 2156838

Panel, Handle

$

$

Not available

16

Ariens 21547987

HANDLE, R.H.

$

$

Not available

19

Ariens 21546266

Tine Control Lever Assembly (I

Note: (Includes Cable)

$53.99

$

In Stock, only 1 left!

0

20

Ariens 21546265

Pin, Pivot

$

$

Not available

29

Ariens 21546059

Retaining Ring

$

$

Not available

30

$

$
