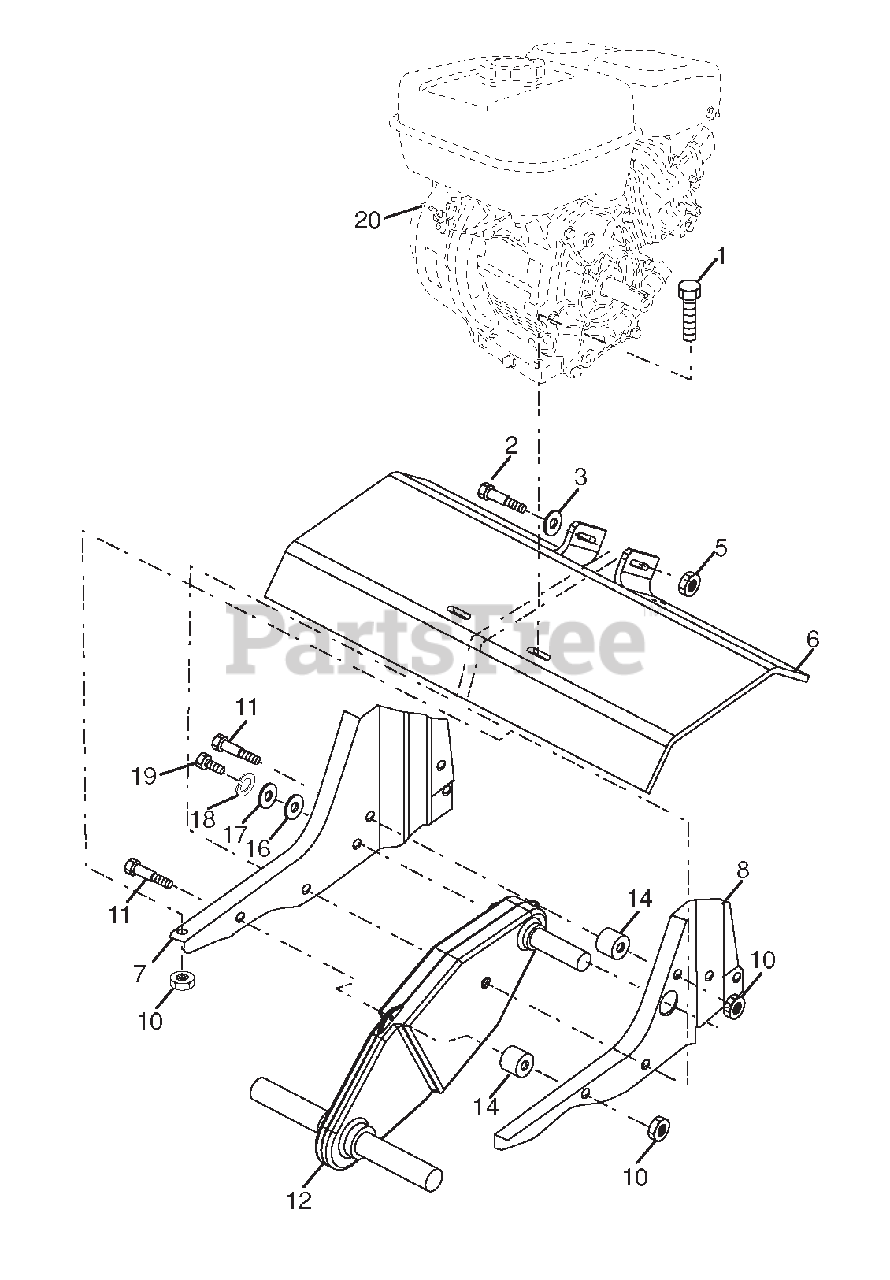

902032 (960860001-00) - Ariens 24" Front Tine Tiller Transmission Parts Diagram

24" Front Tine Tiller

Transmission Parts Diagram

  • Title

1

Ariens 21546807

Bolt, Hex Head, Gr. 25/16-18 x
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

2

Ariens 21546817

Bolt, Hex Head, 3/8-16 x 3-1/4
(Superseded to 05961100)

$3.99

$

In Stock, Qty 20+

0

3

Ariens 21546282

Washer 13/32 x 13/16 x 11 Ga.

$6.49

$

Usually ships in 4-12 days

0

5

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 21546833

Shield, Tine

$

$

Not available

7

Ariens 21546256

Bracket, Engine, R.H.

$

$

Not available

8

Ariens 21546172

Bracket, Engine, L.H.

$

$

Not available

10

Ariens 21546796

Nut, Hex, Flangelock
(Superseded to 06500020)

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 21546255

Bolt, Shoulder

$

$

Not available

12

Ariens 21546122

Transmission

$

$

Not available

14

Ariens 21546834

Spacer, Split

$

$

Not available

16

Ariens 21546276

Washer, 9/32 x 7/8 x 12 Ga.

$

$

Not available

17

Ariens 21546278

Washer, 9/32 x 1-1/4 x 16 Ga.

$

$

Not available

18

Ariens 21546001

Washer, Lock 1/4

$11.99

$

In Stock, only 1 left!

0

19

Ariens 21546801

Bolt, Hex Head, Gr. 51/4-28 x

$

$

Not available

20

Engine, Subaru, Model Number EX170DT1030 (Order parts from engine manufacturer)

Note: (Order parts from engine manufacturer)

$

$

Not available
