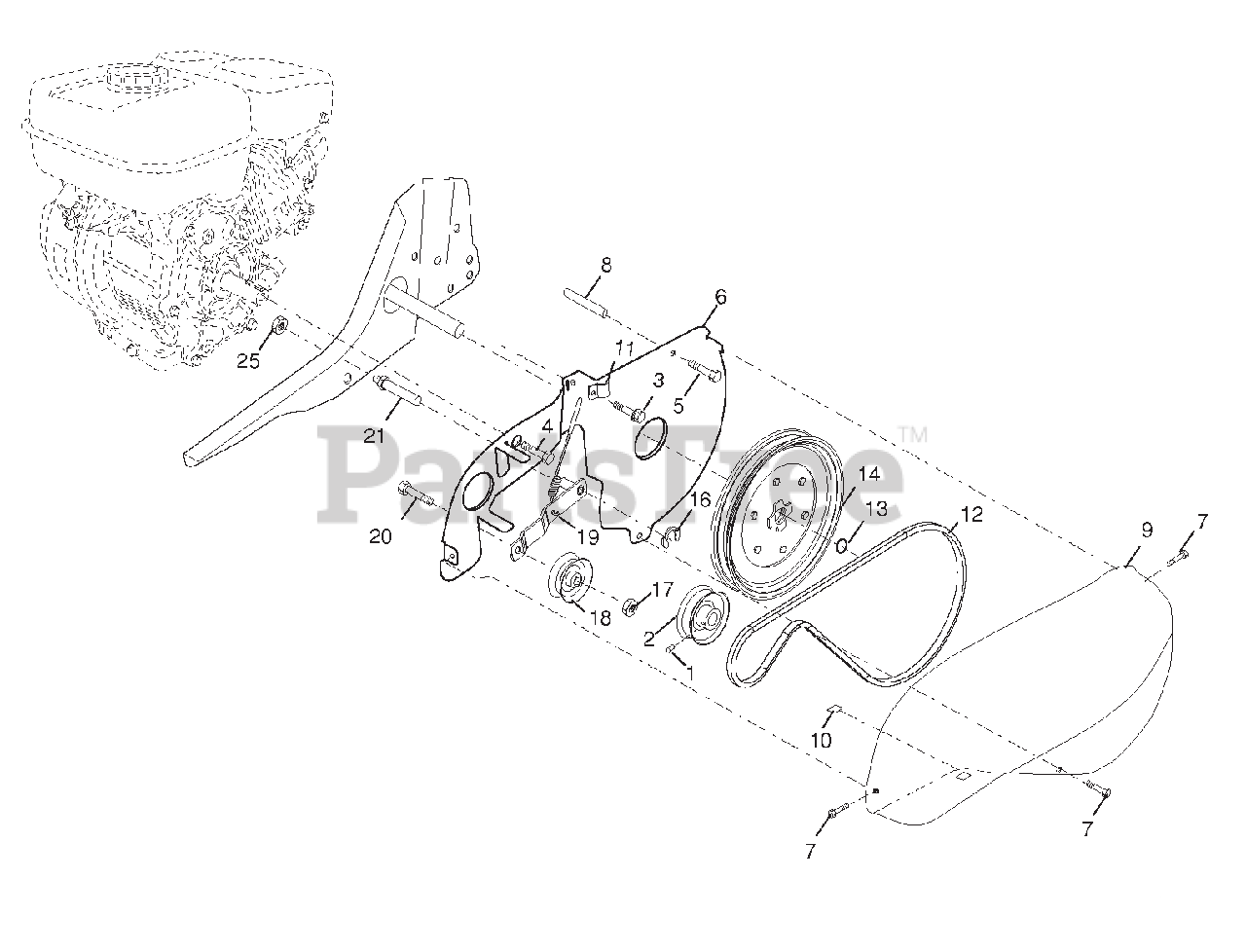

902032 (960860001-00) - Ariens 24" Front Tine Tiller Belt Guard and Pulley Assembly Parts Diagram

24" Front Tine Tiller

Belt Guard and Pulley Assembly Parts Diagram

  • Title

1

Ariens 21546545

Screw Set 5/16-18 x 3/8 Patch
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

2

Ariens 21546079

Sheave, Engine

$

$

Not available

3

Ariens 21546830

Screw, Tap Hex Head

$

$

Not available

4

Ariens 21546813

Bolt, Hex Head 5/16-24 unf x 1

$

$

Not available

5

Ariens 21546198

Bolt, Thd Roller 1/4-20 x 2-1/

$

$

Not available

6

Ariens 21546700

Shield, Inner Belt Guard

$

$

Not available

7

Ariens 21546185

Screw Hex Wsh Hd #8-18 x 1/2

$

$

Not available

8

Ariens 21546096

Spacer Split

$

$

Not available

9

Ariens 21546170

Guard, Belt
(Superseded to 21547630)

$31.99

$

Usually ships in 4-12 days

0

10

Ariens 21546040

Pad, Idler

$

$

Not available

11

Ariens 21546839

Clip, Cable

$

$

Not available

12

Ariens 21546835

V-Belt

$26.99

$

Usually ships in 4-12 days

0

13

Ariens 21546052

Ring, Retainer

$

$

Not available

14

Ariens 21546123

Sheave, Transmisison

$

$

Not available

16

Ariens 21546056

Ring, Klip

$6.49

$

Usually ships in 4-12 days

0

17

Ariens 21546778

Nut, Hex, Jam 3/8-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 21546159

Pulley, Idler

$31.99

$

Usually ships in 4-12 days

0

19

Ariens 21546202

Arm, Idler

$19.99

$

Usually ships in 4-12 days

0

20

Ariens 21546812

Bolt, Hex Head 3/8-16 x 1-1/4
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 21546039

Shaft, Idler Arm

$28.99

$

Usually ships in 4-12 days

0

25

Ariens 21546777

Nut, Hex, Jam 5/16-18

$

$

Not available
