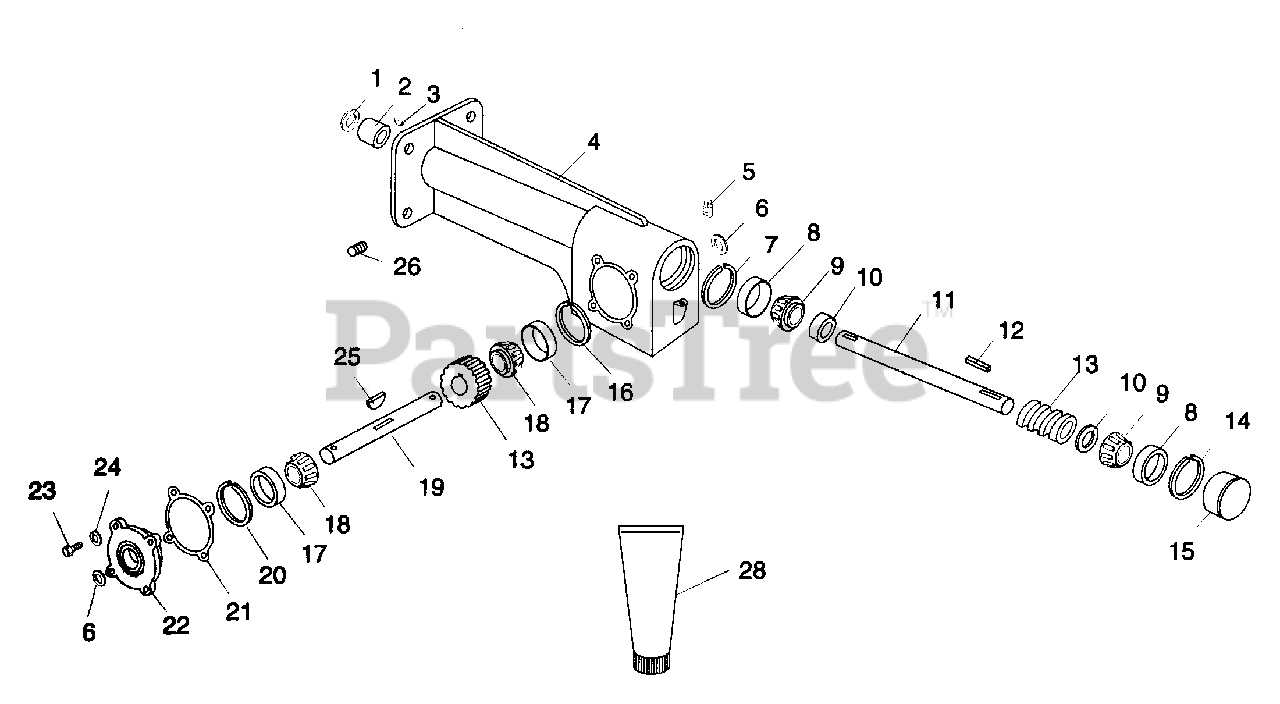

902029 (FT 524 R) - Ariens 24" Front Tine Tiller, 5hp Briggs & Stratton (SN: 000101 & Above) Tiller Gearcase Parts Diagram

24" Front Tine Tiller, 5hp Briggs & Stratton

Tiller Gearcase Parts Diagram

  • Title

1

Ariens 05604300

SEAL .750X1.000X.125

$5.99

$

In Stock, Qty 18

0

2

Ariens 05402200

BRG-NEEDLE .750X1.0X.62

$24.99

$

In Stock, only 1 left!

0

3

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 10

0

4

Ariens 00201400

WORM GEAR HOUSING

Note: Requires 8 ounces L2 Compound

$

$

Not available

5

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 05606600

SEAL 1.000X1.980X.375

$15.99

$

In Stock, only 3 left!

0

7

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.49

$

In Stock, Qty 11

0

8

Ariens 05404400

BRG-CUP 1.781X.475

$10.99

$

In Stock, Qty 20+

0

9

Ariens 05404500

BRG-CONE .750X.61

$23.99

$

In Stock, Qty 11

0

10

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, only 2 left!

0

11

Ariens 00200300

WORM SHAFT

$

$

Not available

12

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

13

Ariens 50200900

WORM GEAR AND WORM - KIT

$253.99

$

Usually ships in 4-12 days

0

14

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.49

$

In Stock, Qty 11

0

14

Ariens 05707600

RG-RTNG-INT 1.781X.057
(Superseded to 05702100)

$5.99

$

In Stock, only 1 left!

0

14

Ariens 05707700

RG-RTNG-INT 1.781X.052
(Superseded to 05702100)

$5.99

$

In Stock, only 1 left!

0

14

Ariens 05707800

RG-RTNG-INT 1.781X.047

$

$

Not available

14

Ariens 05703600

RG-RTNG-INT 1.781X.042

$

$

Not available

15

Ariens 00403700

DUST CAP

$18.99

$

In Stock, only 1 left!

0

16

Ariens 05708200

RG-RTNG-INT 1.969X.062

$11.99

$

Usually ships in 4-12 days

0

17

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 20+

0

18

Ariens 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 20+

0

19

Ariens 00200700

TINE SHAFT

$

$

Not available

20

Ariens 05708200

RG-RTNG-INT 1.969X.062

$11.99

$

Usually ships in 4-12 days

0

20

Ariens 05708100

RG-RTNG-INT 1.969X.057

$

$

Not available

20

Ariens 05708000

RG-RTNG-INT 1.969X.052
(Superseded to 05708200)

$11.99

$

Usually ships in 4-12 days

0

20

Ariens 05707900

RG-RTNG-INT 1.969X.047

$

$

Not available

20

Ariens 05703100

RG-RTNG-INT 1.969X.042

$

$

Not available

21

Ariens 00200800

GASKET

$3.99

$

In Stock, Qty 20+

0

22

Ariens 00201500

BEARING FLANGE

$

$

Not available

23

Ariens 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

24

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

26

Ariens 00200900

BREATHER

$

$

Not available

28

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$18.99

$

In Stock, Qty 20+

0
