902024 (RT 424 X) - Ariens 24" Front Tine Tiller, 4hp Briggs & Stratton (SN: 002401 & Above) Tiller Gearcase Assembly Parts Diagram

24" Front Tine Tiller, 4hp Briggs & Stratton

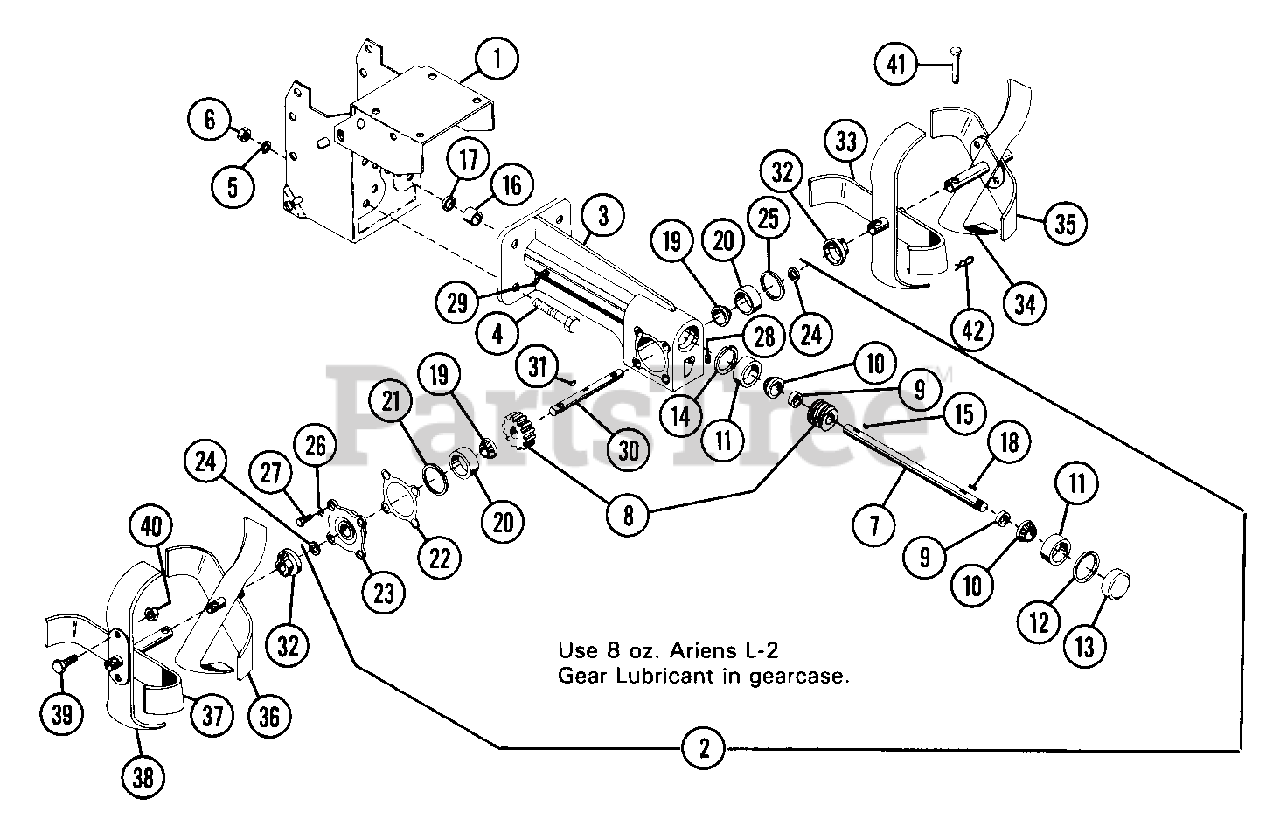

Tiller Gearcase Assembly Parts Diagram

  • Title

1

Ariens 00219000

FRAME
(Superseded to 00242959)

$

$

Not available

2

Ariens 60299900

GEAR CASE - CAST IRON
(Superseded to 50202400)

$

$

Not available

3

Ariens 00201400

WORM GEAR HOUSING

$

$

Not available

4

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 2 left!

0

6

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00200300

WORM SHAFT

$

$

Not available

8

Ariens 50200900

WORM GEAR AND WORM - KIT

$253.99

$

Usually ships in 4-12 days

0

9

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, only 2 left!

0

10

Ariens 05404500

BRG-CONE .750X.61

$23.99

$

In Stock, Qty 11

0

11

Ariens 05404400

BRG-CUP 1.781X.475

$10.99

$

In Stock, Qty 20+

0

12

Ariens 60298200

SNAP RING KIT
(Superseded to 05702100)

$5.99

$

In Stock, only 1 left!

0

13

Ariens 00403700

DUST CAP

$18.99

$

In Stock, only 1 left!

0

14

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.49

$

In Stock, Qty 11

0

15

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 10

0

16

Ariens 05402200

BRG-NEEDLE .750X1.0X.62

$24.99

$

In Stock, only 1 left!

0

17

Ariens 05604300

SEAL .750X1.000X.125

$5.99

$

In Stock, Qty 18

0

18

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

19

Ariens 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 20+

0

20

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 20+

0

21

Ariens 60298300

SNAP RING KIT
(Superseded to 05708200)

$11.99

$

Usually ships in 4-12 days

0

22

Ariens 00200800

GASKET

$3.99

$

In Stock, Qty 20+

0

23

Ariens 00201500

BEARING FLANGE

$

$

Not available

24

Ariens 05606600

SEAL 1.000X1.980X.375

$15.99

$

In Stock, only 3 left!

0

25

Ariens 05708200

RG-RTNG-INT 1.969X.062

$11.99

$

Usually ships in 4-12 days

0

26

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

28

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

29

Ariens 00200900

BREATHER

$

$

Not available

30

Ariens 00200700

TINE SHAFT

$

$

Not available

31

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

32

Ariens 00125200

DUST CAP

$26.99

$

In Stock, Qty 6

0

33

Ariens 00125900

L H INNER TINE SPOOL
(Superseded to 00238300)

$94.99

$

In Stock, only 1 left!

0

34

Ariens 00130100

L H OUTER TINE SPOOL
(Superseded to 00238400)

$

$

Not available

35

Ariens 00208500

L H TURBO-TINE
(Superseded to 00238051)

$27.99

$

Usually ships in 4-12 days

0

36

Ariens 00125800

R H INNER TINE SPOOL
(Superseded to 50203100)

$

$

Not available

37

Ariens 00130200

R H OUTER TINE SPOOL
(Superseded to 00238500)

$161.99

$

In Stock, only 1 left!

0

38

Ariens 00208400

R H TURBO-TINE
(Superseded to 00238151)

$

$

Not available

39

Ariens 05902600

BLT-HEX .44-14X1.00 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

40

Ariens 06501900

NUT-LK-TOP .437-14 GR C PL
(Superseded to 06536400)

$2.99

$

In Stock, Qty 12

0

41

Ariens 00212300

CLEVIS PIN

$3.49

$

In Stock, only 3 left!

0

42

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0
