902024 (RT 424 X) - Ariens 24" Front Tine Tiller, 4hp Briggs & Stratton (SN: 002401 & Above) Rotary Tiller 4 H.P. Parts Diagram

24" Front Tine Tiller, 4hp Briggs & Stratton

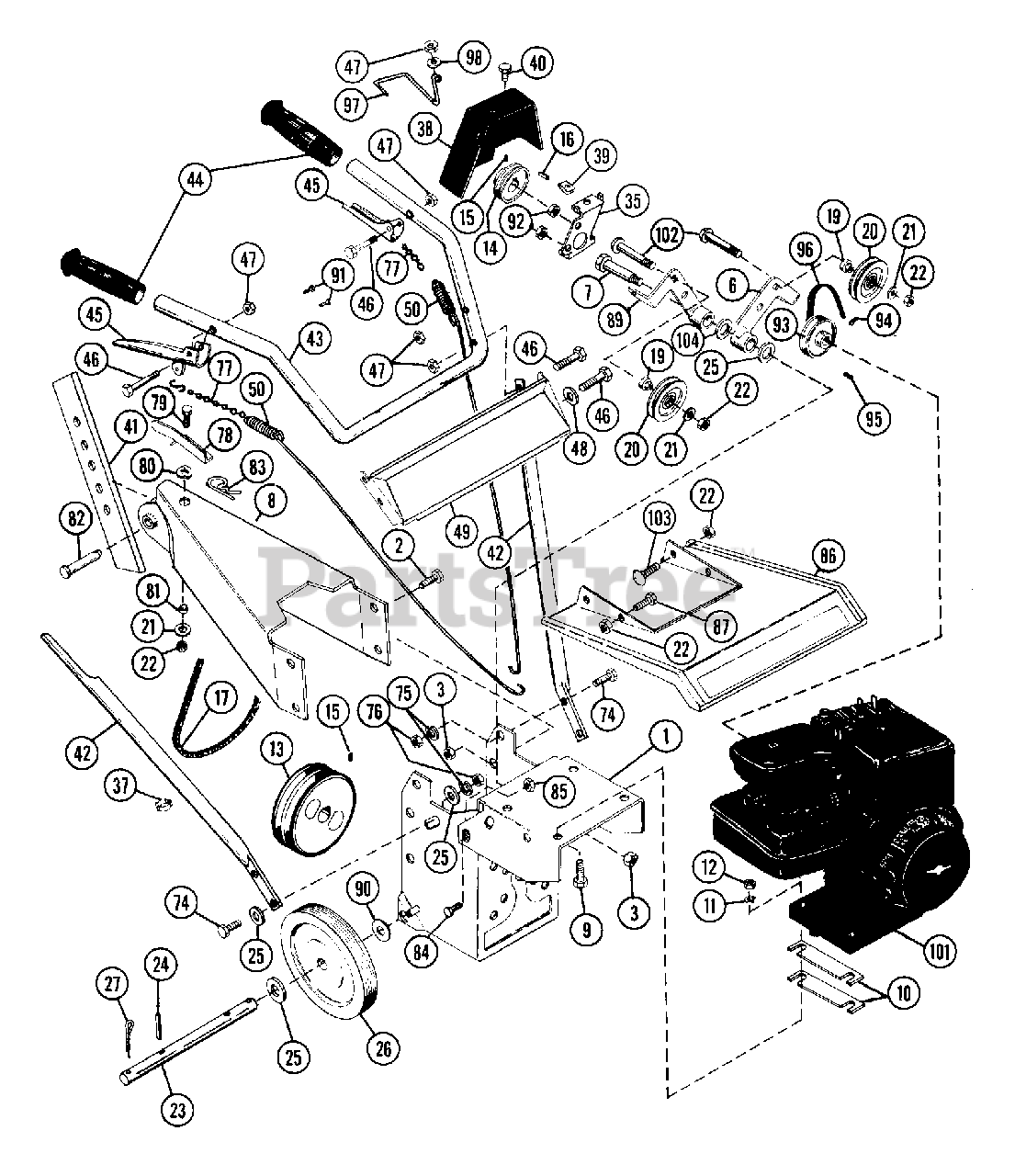

Rotary Tiller 4 H.P. Parts Diagram

  • Title

1

Ariens 00219000

FRAME
(Superseded to 00242959)

$

$

Not available

2

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 00229000

IDLER ARM FWD

$

$

Not available

7

Ariens 00240400

WHEEL SHOULDER BOLT
(Superseded to 07014000)

$7.99

$

Usually ships in 4-12 days

0

8

Ariens 00231700

DEPTH STICK HOLDER
(Superseded to 50203500)

$

$

Not available

9

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

$2.99

$

In Stock, Qty 8

0

10

Ariens 00215700

SHIM
(Superseded to 00247700)

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

13

Ariens 07307800

PLY-DBLV 5.50 X.75 W/KEY SALEM

$

$

Not available

14

Ariens 00231200

ENGINE SHEAVE
(Superseded to 50201600)

$

$

Not available

15

Ariens 06000400

SET SCREW
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

16

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

17

Ariens 07205600

V-BELT, 4L-WRAPPED

$34.99

$

In Stock, only 2 left!

0

18

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

20

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

21

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 00229300

AXLE ROD

$48.99

$

Usually ships in 4-12 days

0

24

Ariens 05800200

PIN-ROLL .125X1.38

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 07104000

WHL

$

$

Not available

27

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 00229500

BELT GUARD BRACKET

$

$

Not available

38

Ariens 00229700

BELT COVER

$69.99

$

Usually ships in 4-12 days

0

39

Ariens 06513000

NUT-SPEED U-TYPE .250-20

$

$

Not available

40

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 00229800

DEPTH STICK
(Superseded to 00229851)

$54.99

$

Usually ships in 4-12 days

0

42

Ariens 00203400

LOWER HANDLE BAR
(Superseded to 00203451)

$77.99

$

In Stock, only 2 left!

0

43

Ariens 00234700

HANDLEBAR
(Superseded to 50203300)

$

$

Not available

44

Ariens 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

45

Ariens 00203800

CLUTCH HANDLE
(Superseded to 00203851)

$39.99

$

Usually ships in 4-12 days

0

46

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

48

Ariens 06406500

WSHR-FL-STL .268X.562X.046 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 00231400

HANDLEBAR PANEL

$

$

Not available

50

Ariens 08300800

SG-TENS .080X.25X31.6 WLD 35

$

$

Not available

74

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

75

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

76

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

77

Ariens 00227000

CLUTCH CHAIN

$18.99

$

In Stock, only 4 left!

0

78

Ariens 00231000

RETAINER CLIP
(Superseded to 00231059)

$

$

Not available

79

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

80

Ariens 01022900

WAVE WASHER .515 X 1.00 X .125

$

$

Not available

81

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

82

Ariens 00220000

CLEVIS PIN .437/.431X1.50 YWZC
(Superseded to 06815600)

$

$

Not available

83

Ariens 06701500

PIN-HAIR INT .12X2.75
(Superseded to 06711900)

$2.99

$

In Stock, only 2 left!

0

84

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

85

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

86

Ariens 00229200

TINE HOOD
(Superseded to 50203600)

$

$

Not available

87

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

89

Ariens 00229100

IDLER ARM REV.

$

$

Not available

90

Ariens 00229400

SPACER .76 X .51 X .56

$19.99

$

Usually ships in 4-12 days

0

91

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

92

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

93

Ariens 00233800

REVERSE SHEAVE
(Superseded to 50201700)

$

$

Not available

94

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

$3.99

$

Usually ships in 4-12 days

0

95

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

96

Ariens 07209900

V-BELT, 3L-WRAPPED

Note: (REV.)

$25.99

$

Usually ships in 4-12 days

0

97

Ariens 00236200

BELT FINGER
(Superseded to 00237500)

$

$

Not available

98

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

101

ENGINE, 4 H.P. BRIGGS & STRATTON111292-0179-01

$

$

Not available

102

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 20+

0

103

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, Qty 20+

0

104

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 1 left!

0
