902022 (RT 524 CD) - Ariens 24" Front Tine Tiller, 5hp Briggs & Stratton (SN: 000101 - 003200) Chain Case Assembly Parts Diagram

24" Front Tine Tiller, 5hp Briggs & Stratton

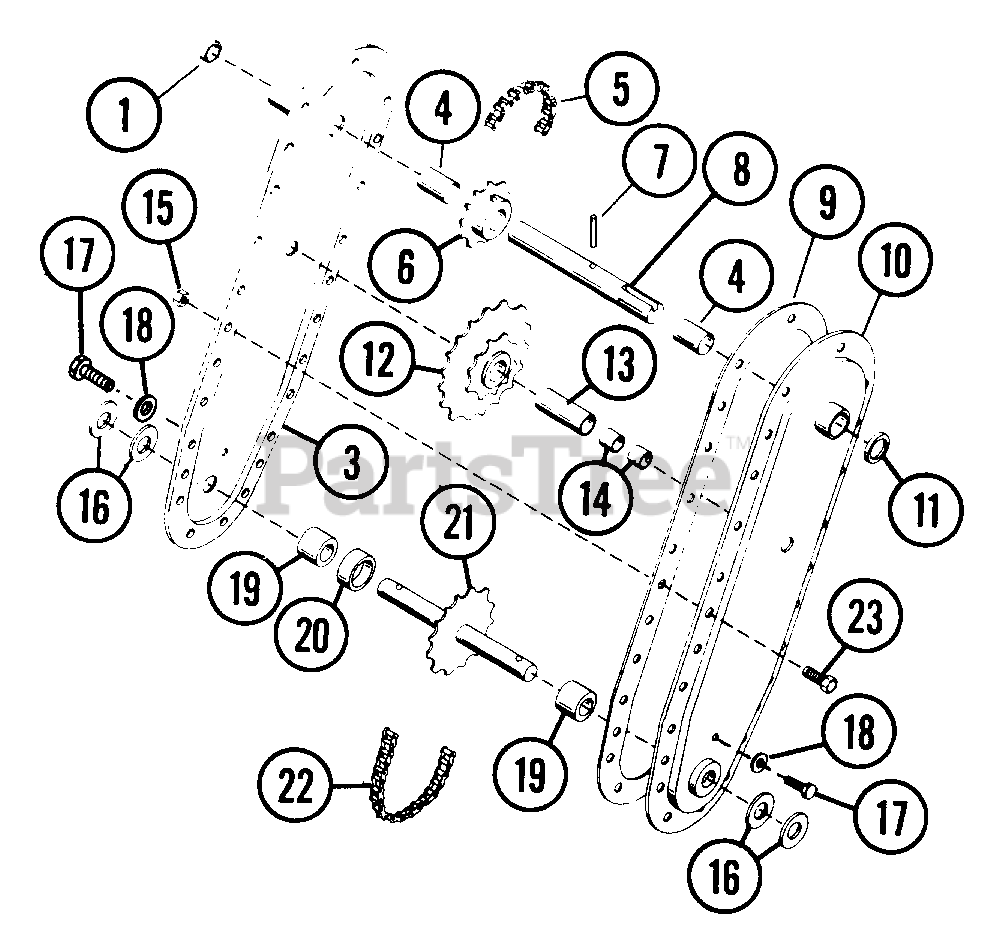

Chain Case Assembly Parts Diagram

  • Title

1

Ariens 07700800

EXPANSION PLUG CONCAVE STD 13/

$

$

Not available

3

Ariens 00223900

RH CHAIN
(Superseded to 00234300)

$

$

Not available

4

Ariens 05506800

BSHG-SLV .625X.812X2.000 SB

$

$

Not available

5

Ariens 00223500

CHAIN #35

$

$

Not available

6

Ariens 00223600

SPROCKET

$

$

Not available

7

Ariens 05805000

PIN-GRV .250X1.25 TP E

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 00223700

INPUT SHAFT

$

$

Not available

9

Ariens 00224000

GASKET

$

$

Not available

10

Ariens 00223800

L H CHAIN
(Superseded to 00234300)

$

$

Not available

11

Ariens 05607300

SEAL .625X.816X.125

$

$

Not available

12

Ariens 00223400

SPROCKET
(Superseded to 50200200)

$

$

Not available

13

Ariens 05410000

BRG-RACE .321X.562X1.53

$

$

Not available

14

Ariens 05409900

BRG-NEEDLE .562X.750X.750

$

$

Not available

15

Ariens 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, only 1 left!

0

16

Ariens 05607200

SEAL 1.250X1.696X.218

$

$

Not available

17

Ariens 07403800

SCR-TAP .250-20X.37 SLPH PL C

$

$

Not available

18

Ariens 00224100

GASKET,

$

$

Not available

19

Ariens 05409800

BRG-NEEDLE 1.25X1.50X1.0

$14.99

$

Usually ships in 4-12 days

0

20

Ariens 00223200

SPACER 2.50 X 1.26 X .48

$

$

Not available

21

Ariens 00212600

TINE SHAFT

$

$

Not available

22

Ariens 00223300

CHAIN #50

$

$

Not available

23

Ariens 07003400

SCR-SEMS .25-20X.62 PL

$

$

Not available
