90202-0104-01 - Briggs & Stratton Horizontal Engine Gasket Set Parts Diagram

Horizontal Engine

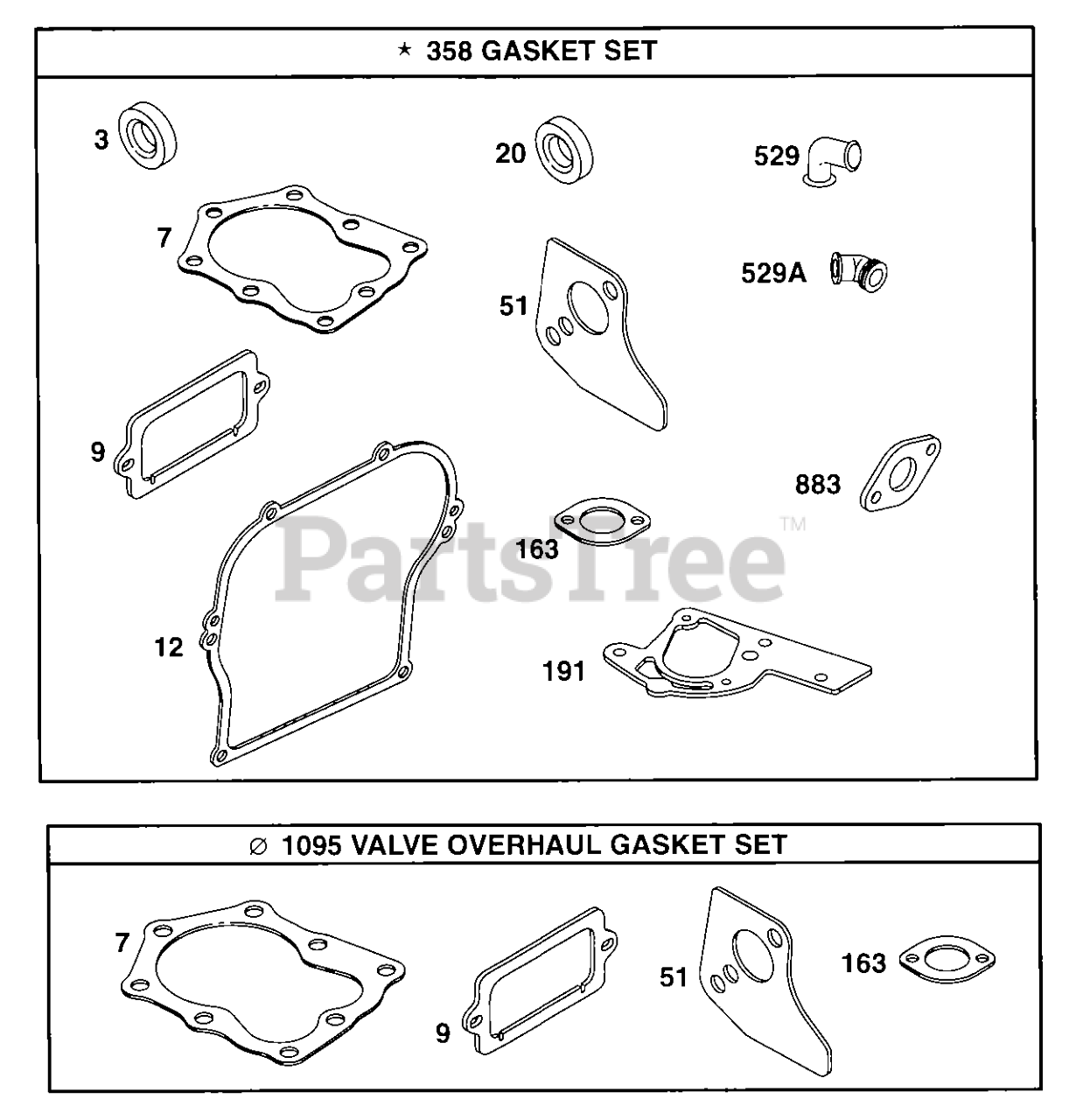

Gasket Set Parts Diagram

  • Title

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

Note: Included in Gasket Set-See Ref. 358

$5.49

$

In Stock, Qty 18

0

7

Briggs & Stratton 272536

Gasket-Cylinder Head
(Superseded to 698717)

Note: Used Before Code Date 96080100

$5.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272694

Gasket-Cylinder Head
(Superseded to 698717)

$5.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 27549

Gasket, Valve Cover
(Superseded to 27549S)

Note: Included in Valve Overhaul Gasket Set-Part 498524. Included in Gasket Set-See Ref. 358

$3.99

$

In Stock, Qty 14

0

12

Briggs & Stratton 270833

Gasket, Crankcase (.015")
(Superseded to 692218)

Note: Included in Gasket Set-See Ref. 358

$

$

Not available

12

Briggs & Stratton 270895

Gasket-Crkcse (.005")

Note: Included in Gasket Set-See Ref. 358

$9.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 270896

Gasket-Crkcse (.009")

Note: Included in Gasket Set-See Ref. 358

$5.99

$

In Stock, Qty 8

0

20

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

Note: Included in Gasket Set-See Ref. 358

$5.49

$

In Stock, Qty 18

0

51

Briggs & Stratton 272585

Gasket, Intake Port (2 Required)
(Superseded to 273113S)

Note: Included in Valve Overhaul Gasket Set-Part 498524. Included in Gasket Set-See Ref. 358

$4.49

$

In Stock, Qty 19

0

51

Briggs & Stratton 273113

Gasket-Intake
(Superseded to 273113S)

Note: Included in Valve Overhaul Gasket Set-Part 498524. Included in Gasket Set-See Ref. 358

$4.49

$

In Stock, Qty 19

0

163

Briggs & Stratton 271935

Gasket-Air Cleaner Mounting
(Superseded to 271935S)

Note: Included in Valve Overhaul Gasket Set-Part 498524. Included in Gasket Set-See Ref. 358

$6.49

$

In Stock, Qty 12

0

191

Briggs & Stratton 272489

Gasket-Tank Mtg.
(Superseded to 692241)

Note: Included in Gasket Set-See Ref. 358

$4.49

$

In Stock, Qty 20+

0

191

Briggs & Stratton 272996

Gasket-Tank Mtg.

Note: Used Before Code Date 92060800

$4.99

$

In Stock, Qty 20+

0

358

Briggs & Stratton 494550

Gasket Set
(Superseded to 495605)

Note: Used Before Code Date 92060800

$47.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 495605

Gasket Set

$47.99

$

Usually ships in 2-12 days

0

529A

Briggs & Stratton 66578

Tube-Breather
(Superseded to 692187)

Note: Included in Gasket Set-See Ref. 358

$4.49

$

In Stock, Qty 20+

0

529

Briggs & Stratton 67838

Grommet, Cover
(Superseded to 692189)

Note: Included in Gasket Set-See Ref. 358

$4.49

$

In Stock, Qty 16

0

883

Briggs & Stratton 272203

Gasket-Muffler
(Superseded to 691314)

Note: Included in Gasket Set-See Ref. 358

$6.49

$

In Stock, only 1 left!

0

1095

Briggs & Stratton 498524

Valve Overhaul Gask
(Superseded to 699450)

$18.99

$

In Stock, only 2 left!

0
