90202-0104-01 - Briggs & Stratton Horizontal Engine Cylinder, Head Parts Diagram

Horizontal Engine

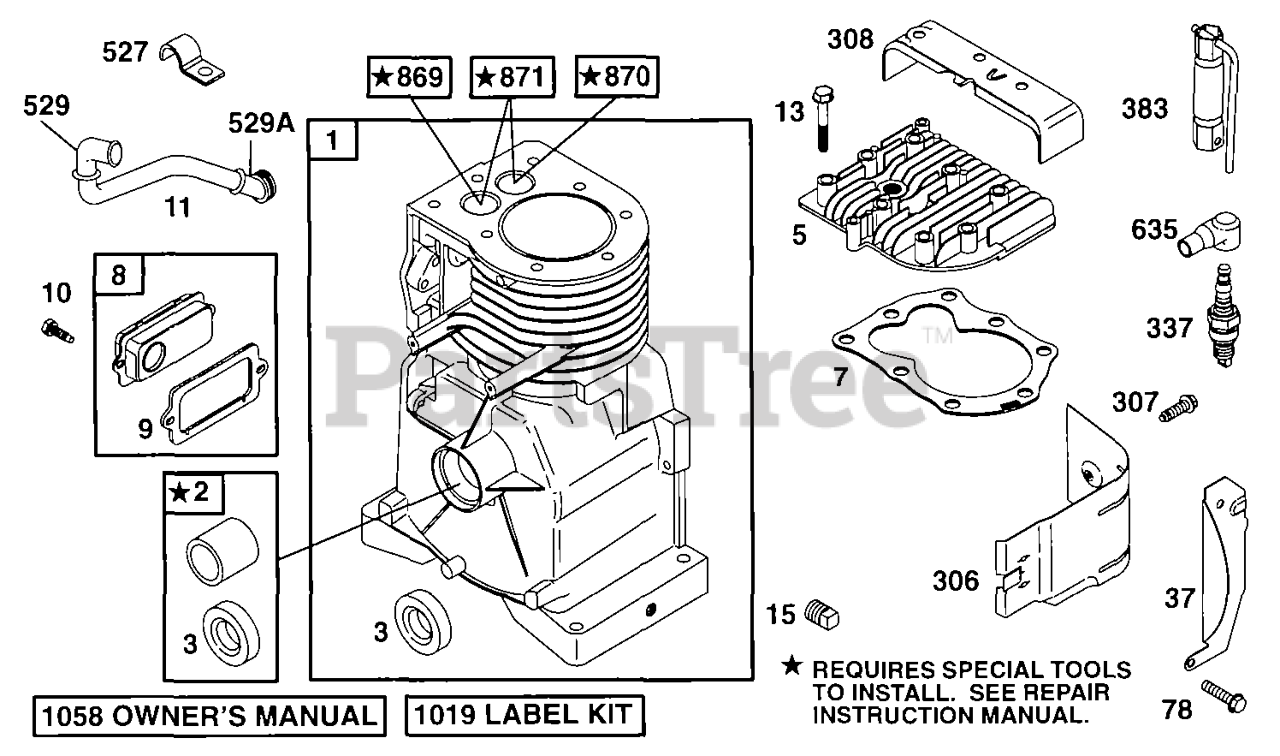

Cylinder, Head Parts Diagram

  • Title

1

Briggs & Stratton 494549

Cylinder Assembly
(Superseded to 791358)

$308.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Bushing/Seal Kit (DU)
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

Note: Included in Gasket Set-See Ref. 358

$5.49

$

In Stock, Qty 18

0

5

Briggs & Stratton 213942

Head-Cylinder
(Superseded to 790169)

Note: Used Before Code Date 96080100

$

$

Not available

5

Briggs & Stratton 214277

Head-Cylinder
(Superseded to 790169)

$

$

Not available

7

Briggs & Stratton 272536

Gasket-Cylinder Head
(Superseded to 698717)

Note: Used Before Code Date 96080100

$5.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272694

Gasket-Cylinder Head
(Superseded to 698717)

$5.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495774

Breather Assy.
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket, Valve Cover
(Superseded to 27549S)

Note: Included in Valve Overhaul Gasket Set-Part 498524. Included in Gasket Set-See Ref. 358

$3.99

$

In Stock, Qty 14

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 231527

Tube-Breather
(Superseded to 692528)

$

$

Not available

13

Briggs & Stratton 94960

Screw, Machine Hex (1-15/16" Long)
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94886

Plug, Pipe (Flush)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94916

Plug, Pipe (Square Head)
(Superseded to 691686)

$5.49

$

In Stock, only 2 left!

0

37

Briggs & Stratton 224557

Guard-Flywheel
(Superseded to 690463)

$10.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 94811

Screw, Machine Hex
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

306

Briggs & Stratton 224555

Shield-Cylinder
(Superseded to 690461)

$20.99

$

In Stock, Qty 10

0

307

Briggs & Stratton 93758

Screw, Hex Wash Hd
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 224556

Cover-Cylinder
(Superseded to 690462)

$5.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 492167

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

527

Briggs & Stratton 223786

Support-Breather Tube
(Superseded to 691741)

$4.99

$

Usually ships in 2-12 days

0

529A

Briggs & Stratton 66578

Tube-Breather
(Superseded to 692187)

Note: Included in Gasket Set-See Ref. 358

$4.49

$

In Stock, Qty 20+

0

529

Briggs & Stratton 67838

Grommet, Cover
(Superseded to 692189)

Note: Included in Gasket Set-See Ref. 358

$4.49

$

In Stock, Qty 16

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

869

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Valve (Exhaust)
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231348

Bushing-Guide (Exhaust Valve)

Note: Used Before Code Date 92072000

$31.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Bushing-Guide (Brass)

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

$14.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491069

Label Kit

$36.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272484

Owner's Manual

$5.99

$

Usually ships in 2-12 days

0
