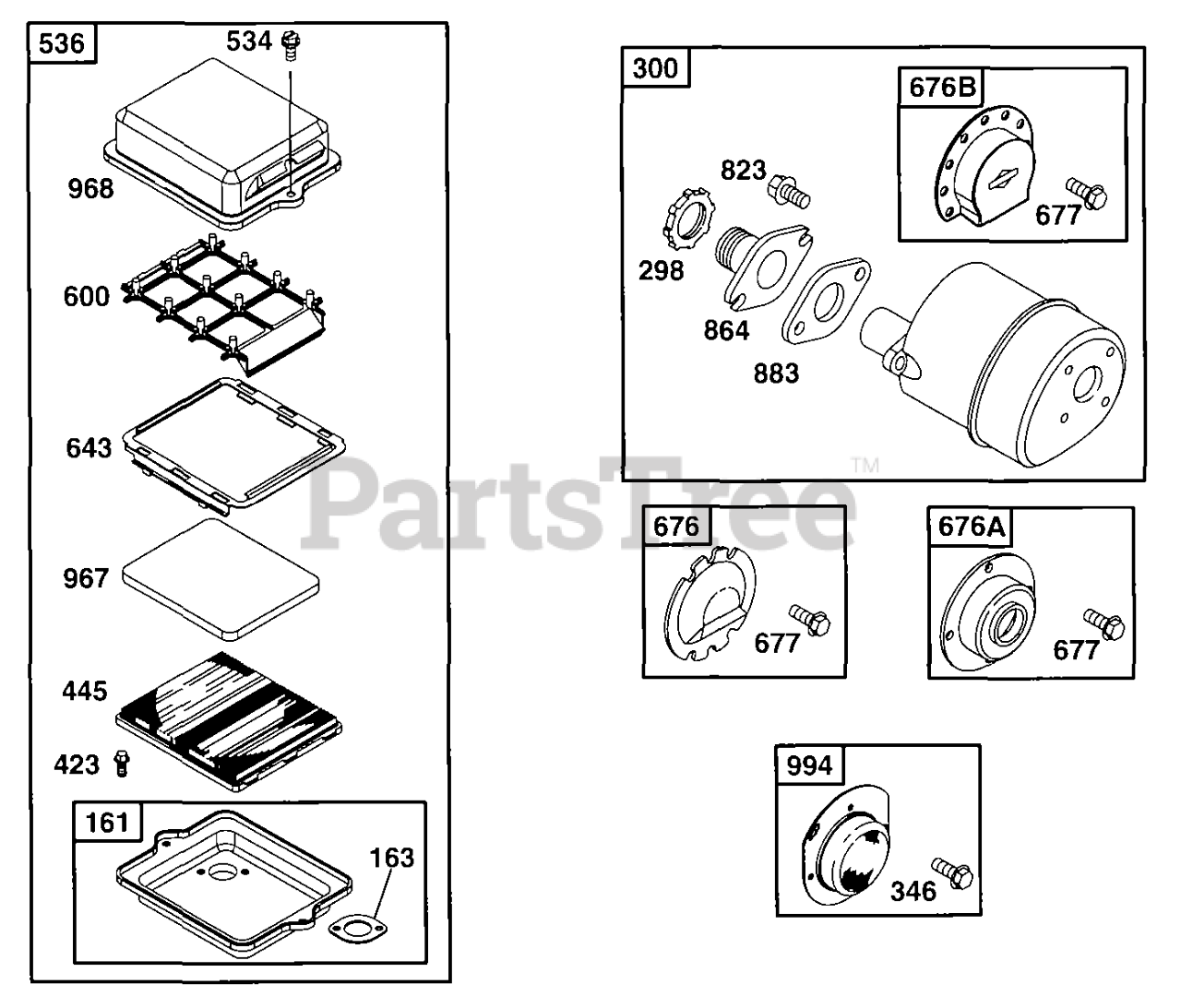

90202-0104-01 - Briggs & Stratton Horizontal Engine Air Cleaner, Muffler Parts Diagram

Horizontal Engine

Air Cleaner, Muffler Parts Diagram

  • Title
161

Briggs & Stratton 492797

Base-Air Cleaner
(Superseded to 494279)

$

$

Not available

163

Briggs & Stratton 271935

Gasket-Air Cleaner Mounting
(Superseded to 271935S)

Note: Included in Valve Overhaul Gasket Set-Part 498524. Included in Gasket Set-See Ref. 358

$6.49

$

In Stock, Qty 12

0

298

Briggs & Stratton 220859

Locknut, Muffler/El
(Superseded to 691720)

$5.49

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 493288

Muffler-Exhaust (Lo-Tone)

$36.99

$

In Stock, only 1 left!

0

346

Briggs & Stratton 94896

Screw, Tapping Hex
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

423

Briggs & Stratton 94902

Screw-Hex.
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

445

Briggs & Stratton 491588

Filter-Pre Cleaner
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

534

Briggs & Stratton 490073

Screw Assy (Air Cleaner)
(Superseded to 694515)

$5.99

$

In Stock, Qty 8

0

536

$

$

Not available

600

Briggs & Stratton 280737

Spacer-Air Filter

$

$

Not available

643

Briggs & Stratton 280726

Retainer-Air Filter

$

$

Not available

676A

Briggs & Stratton 397931

Deflector-Muffler

$14.99

$

Usually ships in 2-12 days

0

676B

Briggs & Stratton 393760

DEFLECTOR, Muffler

$9.49

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393756

Deflector-Muff (Side Outlet)
(Superseded to 396548)

$16.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 94896

Screw, Tapping Hex
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

823

Briggs & Stratton 94523

Screw, Hex Flange H
(Superseded to 692336)

$7.99

$

In Stock, only 2 left!

0

864

Briggs & Stratton 492232

Adapter-Muffler
(Superseded to 690776)

$25.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 272203

Gasket-Muffler
(Superseded to 691314)

Note: Included in Gasket Set-See Ref. 358

$6.49

$

In Stock, only 1 left!

0

967

Briggs & Stratton 491435

Element, Air Cleane (Pre-Cleaner)
(Superseded to 491435S)

$4.99

$

In Stock, Qty 7

0

968

Briggs & Stratton 495872

Cover-Air Cleaner
(Superseded to 791082)

$20.99

$

In Stock, Qty 13

0

994

Briggs & Stratton 398067

Spark Arrestor

$64.99

$

Usually ships in 2-12 days

0
