9020 (1690283) - Simplicity Power Max Garden Tractor, 19.5hp Steering & Control Group Parts Diagram

Power Max Garden Tractor, 19.5hp

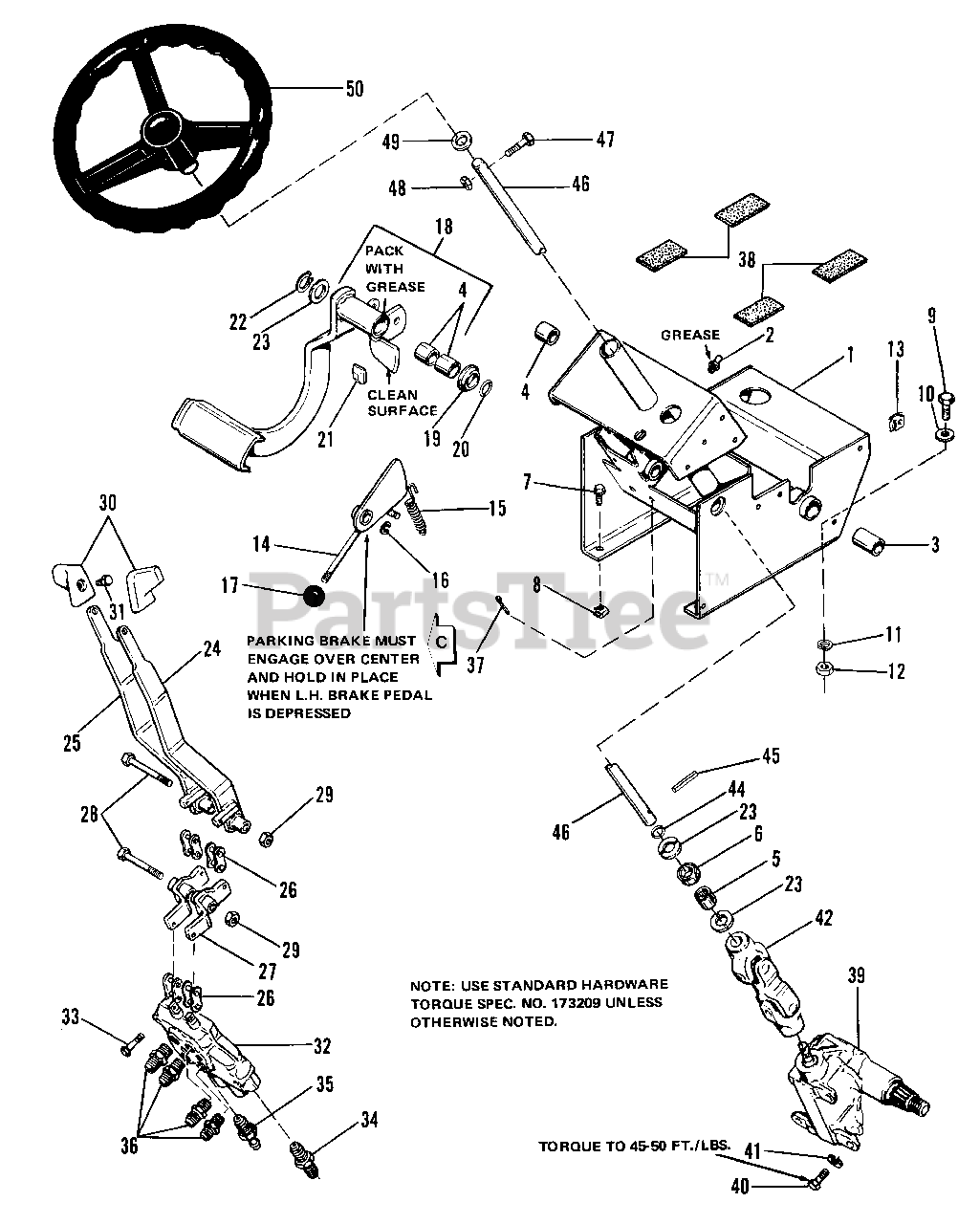

Steering & Control Group Parts Diagram

  • Title

1

Simplicity 1656641

SUPPORT ASSY

$

$

Not available

2

Simplicity 2812808SM

FITTING, Lube, 1/4-28

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 168119

BUSHING, Sleeve

$

$

Not available

4

Simplicity 168140

BEARING, Sleeve

$

$

Not available

5

Simplicity 2171597SM

BEARING, Needle

$28.99

$

In Stock, only 1 left!

0

6

Simplicity 173179

BEARING, Roller

$

$

Not available

7

Simplicity 2830617

SCREW, Self Tapping, 5/16 x 7/8

$

$

Not available

8

Simplicity 930663

NUT, Speen, Tinner.

$

$

Not available

9

Simplicity 2817397

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

10

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1917356SM

LOCKWASHER, 36
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 2830664

NUT, Retainer, 1/4-20

$

$

Not available

14

Simplicity 175218

CAM ASSY

$

$

Not available

15

Simplicity 173761

SPRING

$

$

Not available

16

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

17

Simplicity 2122005SM

KNOB

$14.99

$

Usually ships in 2-12 days

0

18

Simplicity 168122

LEVER ASSY

$

$

Not available

19

Simplicity 154462

WASHER

$

$

Not available

20

Simplicity 2118134SM

RING, Retaining

$

$

Not available

21

Simplicity 171005

BUMPER

$

$

Not available

22

Simplicity 168152

RING, Retaining

$

$

Not available

23

Simplicity 2101022

WASHER

$

$

Not available

24

Simplicity 171105

LEVER ASSY

$

$

Not available

25

Simplicity 175153

LEVER ASSY

$

$

Not available

26

Simplicity 2171101

LINK, Connect.

$

$

Not available

27

Simplicity 171104

BELLCRANK ASSY

$

$

Not available

28

Simplicity 2819959

CAPSCREW, Hex, 3/8-16 x 2-3/4

$

$

Not available

29

Simplicity 2828731

NUT, Hex, Lock, 3/8-16 x 2-3/4

$

$

Not available

30

Simplicity 2171165

KNOB

$

$

Not available

31

Simplicity 2825592SM

SCREW, Taptite, 1/4-20 x 3/4

$2.99

$

Usually ships in 2-12 days

0

32

Simplicity 171494

VALVE, Hydro.

$

$

Not available

33

Simplicity 930602

SCREW, Taptite

$

$

Not available

34

Simplicity 171460

CONNECTOR, Male

$

$

Not available

35

Simplicity 2171465SM

CONNECTOR, Hose

$19.99

$

Usually ships in 2-12 days

0

36

Simplicity 173115

CONNECTOR, Male

$

$

Not available

37

Simplicity 918455

PIN, Cotter, 5/32 x 1

$

$

Not available

38

Simplicity 106582

GASKET, Felt

$

$

Not available

39

Simplicity 171557

GEAR ASSY, Steering

$

$

Not available

40

Simplicity 2820676SM

CAPSCREW, Hex, 7/16-14 x 1

$4.49

$

In Stock, Qty 6

0

41

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

42

Simplicity 173500

JOINT, U

$

$

Not available

44

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 17

0

45

Simplicity 918390

PIN, Spring, 3/8 x 1-1/4

$

$

Not available

46

Simplicity 171532

SHAFT

$

$

Not available

47

Simplicity 2821977

CAPSCREW, Hex, 5/16-18 x 1-1/4

$

$

Not available

48

Simplicity 2829001

LOCKNUT, Hex, Flange, 5/16-18

$

$

Not available

49

Simplicity 172266

WASHER, Rubber

$

$

Not available

50

Simplicity 1606342SM

WHEEL, Steering

$

$

Not available
