9020 (1690283) - Simplicity Power Max Garden Tractor, 19.5hp Rear PTO Parts Diagram

Power Max Garden Tractor, 19.5hp

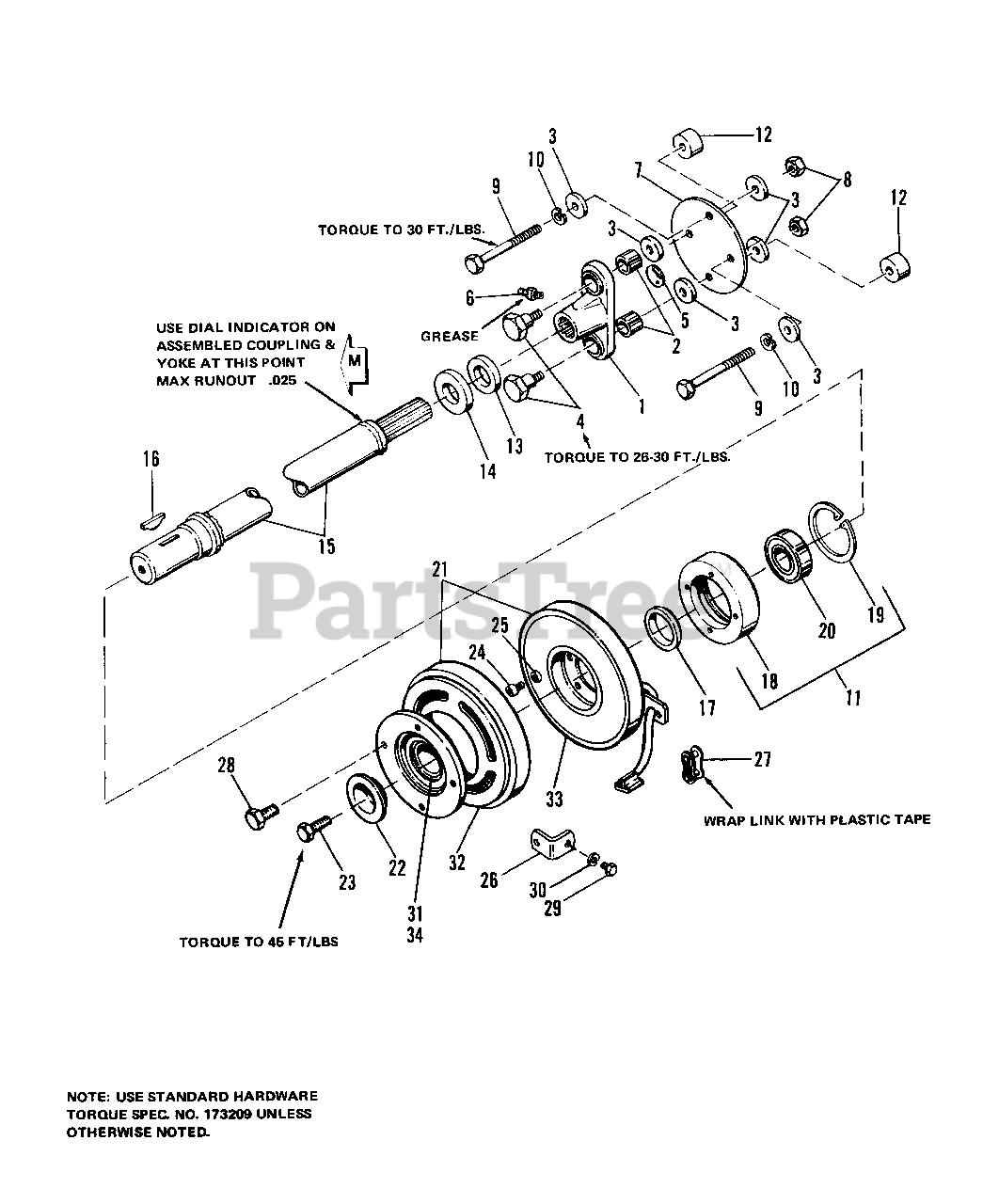

Rear PTO Parts Diagram

  • Title

1

Simplicity 175229

YOKE

$

$

Not available

2

Simplicity 2177943SM

BUSHING

$18.99

$

Usually ships in 2-12 days

0

3

Simplicity 2153052

WASHER

$

$

Not available

4

Simplicity 2108412

BOLT, Shoulder

$

$

Not available

5

Simplicity 177134

PLUG

$

$

Not available

6

Simplicity 2812808SM

FITTING, Lube, 1/4-28

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 2175230SM

COUPLING

$73.99

$

In Stock, only 3 left!

0

8

Simplicity 2828352

NUT, Flange, Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

9

Simplicity 2823938

CAPSCREW, Hex, 3/8-16 x 3-1/2

$

$

Not available

10

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

11

Simplicity 1650720

BEARING, PTO Retainer

$

$

Not available

12

Simplicity 172539

SPACER

$

$

Not available

13

Simplicity 177141

WASHER, Felt

$

$

Not available

14

Simplicity 172266

WASHER, Rubber

$

$

Not available

15

Simplicity 2176046

SHAFT ASSY

$

$

Not available

16

Simplicity 176650

KEY

$

$

Not available

17

Simplicity 176048

WASHER

$

$

Not available

18

Simplicity 176047

RETAINER, Bearing

$

$

Not available

19

Simplicity 176049

RING, Retaining

$

$

Not available

20

Simplicity 176050

BEARING

$

$

Not available

21

Simplicity 1685126SM

CLUTCH ASSY

$901.99

$

Usually ships in 2-12 days

0

22

Simplicity 173395

COLLAR

$

$

Not available

23

Simplicity 2828727

SCREW, Whiz Lock, 3/8-16 x 1-1/4

$

$

Not available

24

Simplicity 2830613

CAPSCREW, Hex, No. 10-32 x 1/2

$

$

Not available

25

Simplicity 1909055SM

LOCKWASHER, No. 10

$3.49

$

Usually ships in 2-12 days

0

26

Simplicity 174276

BRACKET ASSY

$

$

Not available

27

Simplicity 2171101

LINK, Connect

$

$

Not available

28

Simplicity 2827477

SCREW, Taptite, 5/16-18 x 1

$

$

Not available

29

Simplicity 2816019

CAPSCREW, Hex, 1/4-20 x 3/4

$

$

Not available

30

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

31

Simplicity 2177960SM

BEARING

Note: Order part no. 177960 to replace bearing with narrow inner race, Order part no 1663355 to replace bearing with wide inner race. (See Service Bulletin 77-4)

$

$

Not available

32

Simplicity 1685127SM

ROTOR ARMATURE

$740.99

$

Usually ships in 2-12 days

0

33

Simplicity 1652356SM

FIELD ASSY

$302.99

$

Usually ships in 2-12 days

0

34

Simplicity 1663355SM

BEARING, Wide Race

Note: Order part no. 177960 to replace bearing with narrow inner race, Order part no 1663355 to replace bearing with wide inner race. (See Service Bulletin 77-4)

$109.99

$

Usually ships in 2-12 days

0
