9020 (1690283) - Simplicity Power Max Garden Tractor, 19.5hp Lift & 3-Point Hitch Parts Diagram

Power Max Garden Tractor, 19.5hp

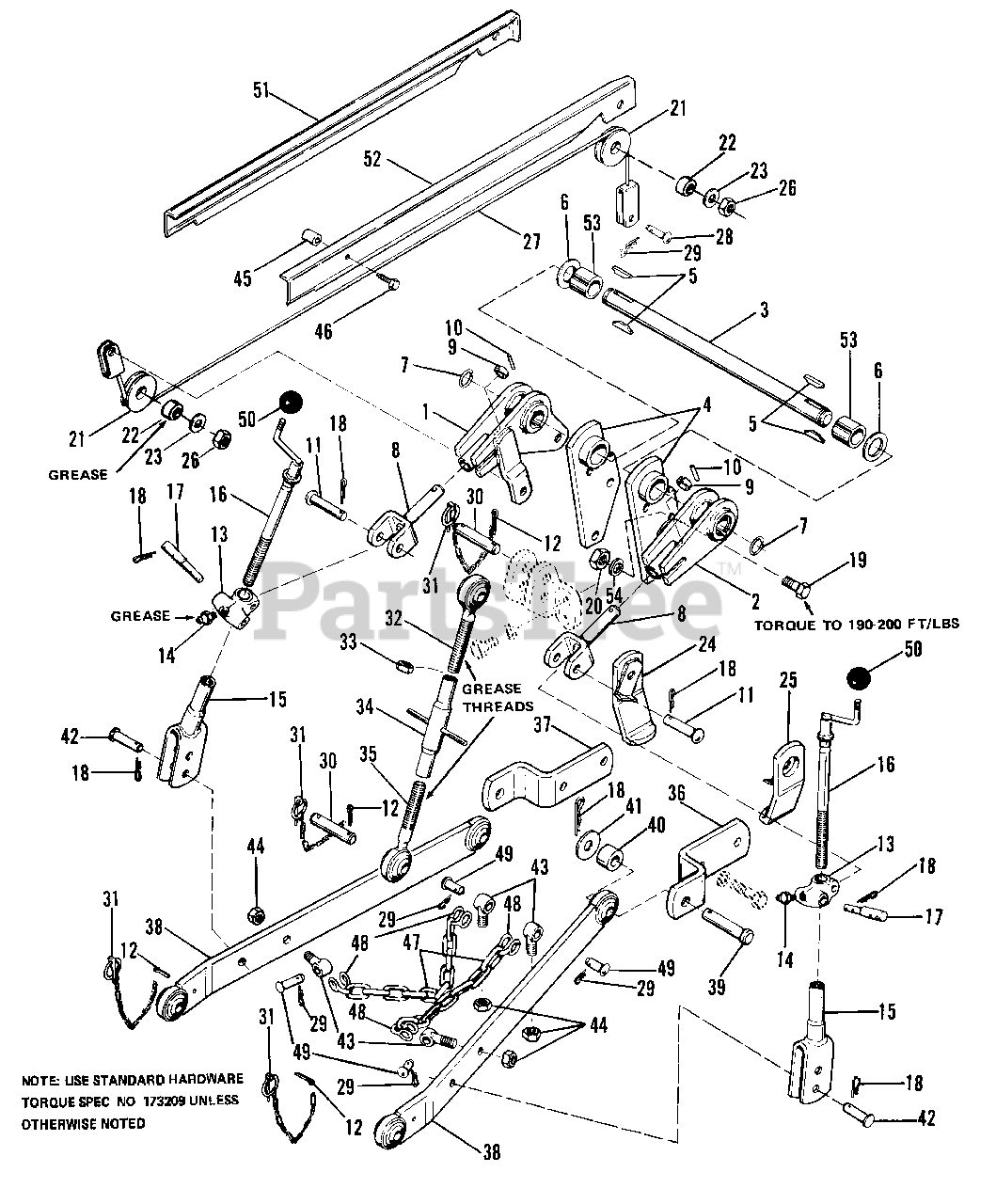

Lift & 3-Point Hitch Parts Diagram

  • Title

1

Simplicity 171714

ARM ASSY, Lift, L.H.

$

$

Not available

2

Simplicity 171710

ARM ASSY, Lift, R.H.

$

$

Not available

3

Simplicity 171719

SHAFT, Rocker

$

$

Not available

4

Simplicity 1657205

SUPPORT ASSY

$

$

Not available

5

Simplicity 171692

KEY

$

$

Not available

6

Simplicity 106391

WASHER

$

$

Not available

7

Simplicity 2154291SM

RING, Retaining

$6.99

$

Usually ships in 2-12 days

0

8

Simplicity 171706

CLEVIS ASSY

$

$

Not available

9

Simplicity 171709

COLLAR

$

$

Not available

10

Simplicity 2816937SM

PIN, Spring, 1/4 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 1729275SM

PIN, King

$18.99

$

Usually ships in 2-12 days

0

12

Simplicity 918461

PIN, Cotter, 1/4 x 1-1/2

$

$

Not available

13

Simplicity 171825

TRUNNION

$

$

Not available

14

Simplicity 2813958

FITTING, Lube, 1/4

$

$

Not available

15

Simplicity 171747

CLEVIS ASSY

$

$

Not available

16

Simplicity 171701

LINK ASSY

$

$

Not available

17

Simplicity 173386

PIN

$

$

Not available

18

Simplicity 2106788

CLIP, Spring

$

$

Not available

19

Simplicity 923881

CAPSCREW, Hex, 5/8-11 x 2, Gr. 8

$

$

Not available

20

Simplicity 1654237

NUT, Heavy, 5/8-11

$

$

Not available

21

Simplicity 1655893

PULLEY, Cable

$

$

Not available

22

Simplicity 1655894

SPACER

$

$

Not available

23

Simplicity 2818430

WASHER, 7/16

$

$

Not available

24

Simplicity 173634

BAR ASSY, Rub, L.H.

$

$

Not available

25

Simplicity 173635

BAR ASSY, Rub, R.H.

$

$

Not available

26

Simplicity 2824650

NUT, Hex, Lock, Jam, 1/2-13

$

$

Not available

27

Simplicity 2172727SM

CABLE ASSY

$71.99

$

Usually ships in 2-12 days

0

28

Simplicity 1729281SM

PIN

$8.49

$

In Stock, only 1 left!

0

29

Simplicity 2106787

CLIP, Spring

$

$

Not available

30

Simplicity 2171695SM

PlN

$36.99

$

Usually ships in 2-12 days

0

31

Simplicity 171689

RING, Retaining

$

$

Not available

32

Simplicity 2168281

STUD ASSY, R.H. Thread

$

$

Not available

33

Simplicity 930638

NUT, Hex, Full, 3/4-10

$

$

Not available

34

Simplicity 2171720

LINK ASSY, Upper

$

$

Not available

35

Simplicity 2171693

STUD ASSY, L.H. Thread

$

$

Not available

36

Simplicity 170185

STRAP, Pull Link, R.H.

$

$

Not available

37

Simplicity 172197

STRAP, Pull Link, L.H.

$

$

Not available

38

Simplicity 168293

LINK ASSY, Pull

$

$

Not available

39

Simplicity 173641

PIN

$

$

Not available

40

Simplicity 173630

COLLAR

$

$

Not available

41

Simplicity 2116001

WASHER

$

$

Not available

42

Simplicity 1722819SM

PIN

$6.99

$

In Stock, only 2 left!

0

43

Simplicity 168285

BOLT, Eye

$

$

Not available

44

Simplicity 2830245

NUT, Hex, Lock, 1/2-20

$

$

Not available

45

Simplicity 1707571SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

46

Simplicity 930556

SCREW, Thr. Form, 1/4 x 1-1/4

$

$

Not available

47

Simplicity 173006

CHAIN

$

$

Not available

48

Simplicity 168284

SHACKLE

$

$

Not available

49

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

50

Simplicity 1729255SM

BALL, Knob

$12.99

$

Usually ships in 2-12 days

0

51

Simplicity 172812

GUARD, Wire, L.H.

$

$

Not available

52

Simplicity 172825

GUARD, Wire, R.H.

$

$

Not available

53

Simplicity 171691

BUSHING

$

$

Not available

54

Simplicity 2817373

LOCKWASHER, 5/8

$

$

Not available
