9020 (1690283) - Simplicity Power Max Garden Tractor, 19.5hp Frame Group Parts Diagram

Power Max Garden Tractor, 19.5hp

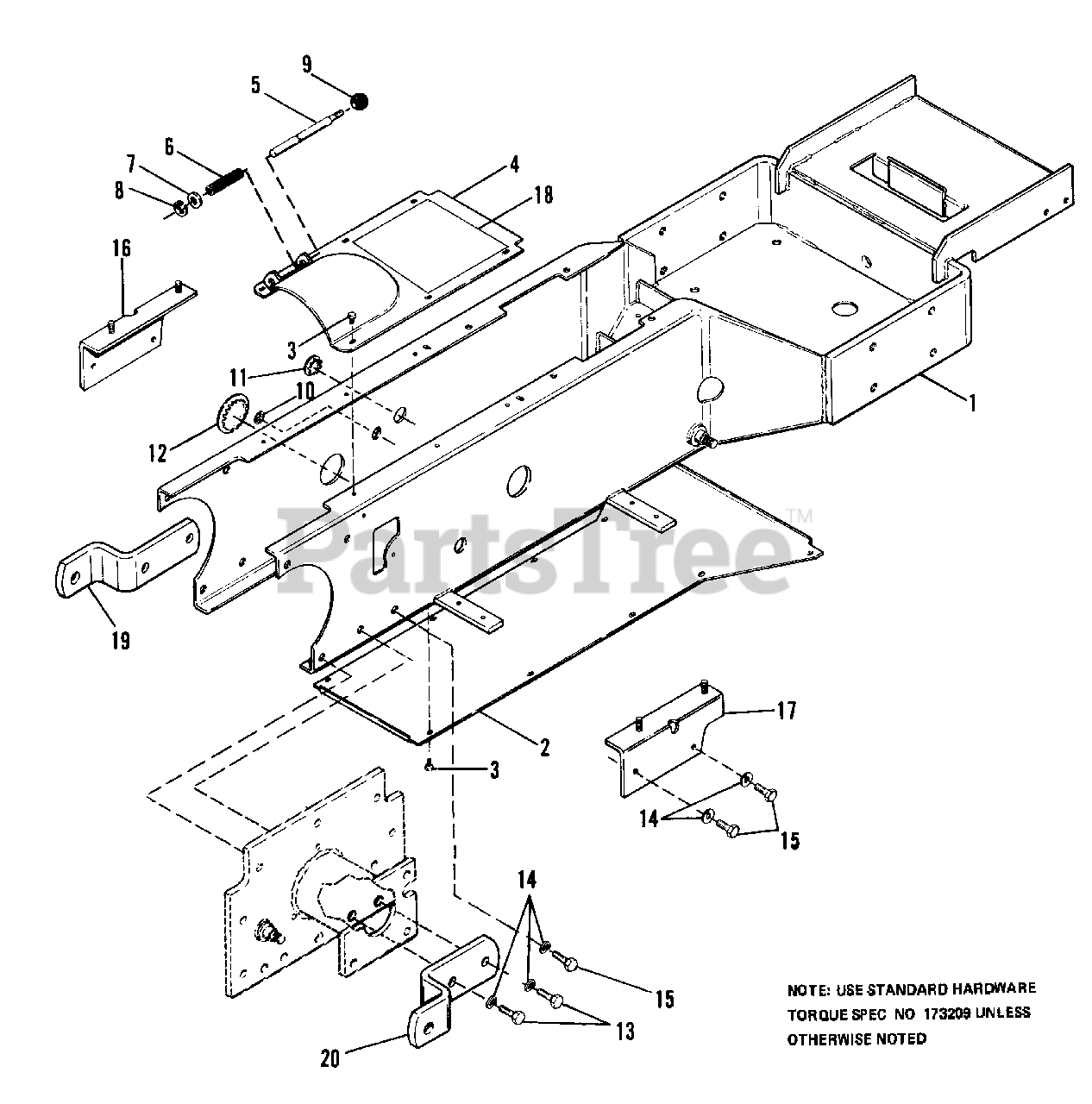

Frame Group Parts Diagram

  • Title

1

Simplicity 176593

FRAME ASSY

$

$

Not available

2

Simplicity 172629

COVER, Bottom

$

$

Not available

3

Simplicity 2829000

SCREW, Washer, Taptite, 1/4-20 x 3/4

$

$

Not available

4

Simplicity 1656963

COVER ASSY

$

$

Not available

5

Simplicity 1656966

LATCH

$

$

Not available

6

Simplicity 1656967

SPRING

$

$

Not available

7

Simplicity 2153072

WASHER

$

$

Not available

8

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

9

Simplicity 173748

KNOB

$

$

Not available

10

Simplicity 174277

PLUG, Hole

Note: QTY. 1 USED ON 1690283

$

$

Not available

11

Simplicity 173339

PLUG, Hole

$

$

Not available

12

Simplicity 173341

PLUG, Hole

$

$

Not available

13

Simplicity 2821024

CAPSCREW, Hex, 1/2-13 x 2

$

$

Not available

14

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

15

Simplicity 2820328

CAPSCREW, Hex, 1/2-13 x 1-1/2

$

$

Not available

16

Simplicity 1656903

SUPPORT ASSY, Seat, L.H.

$

$

Not available

17

Simplicity 1656904

SUPPORT ASSY, Seat, R.H.

$

$

Not available

18

Simplicity 1657366

DECAL, Shift & Safety

$

$

Not available

19

Simplicity 172197

STRAP, Pull Link, L.H. (Used on 1690230 Only)

$

$

Not available

20

Simplicity 170185

STRAP, Pull Link, R.H. (Used on 1690230 Only)

$

$

Not available
