9020 (1690230) - Simplicity Power Max Garden Tractor, 19.5hp Mid-Point Lift Group Parts Diagram

Power Max Garden Tractor, 19.5hp

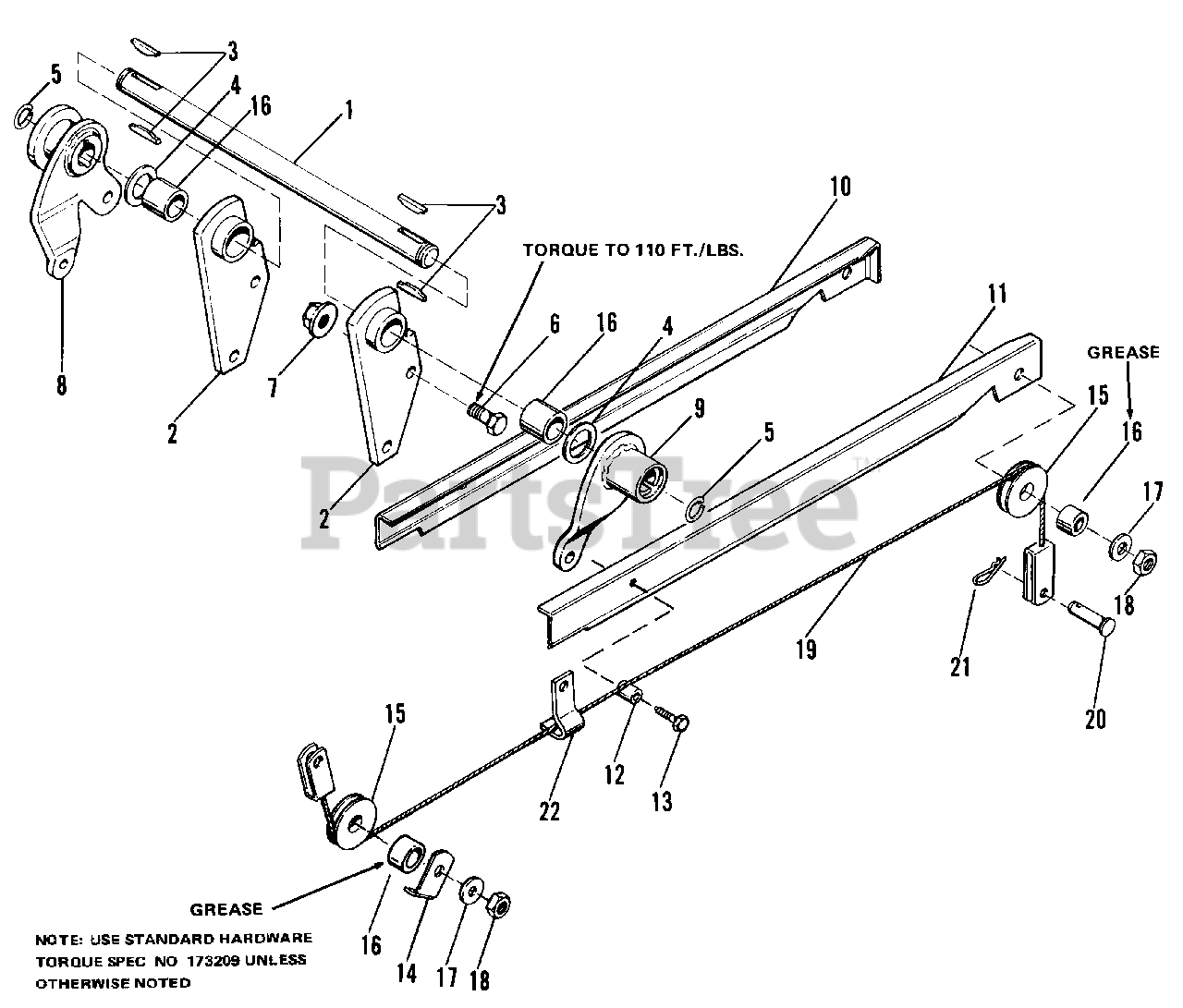

Mid-Point Lift Group Parts Diagram

  • Title

1

Simplicity 171719

SHAFT, Rocker

$

$

Not available

2

Simplicity 176606

SUPPORT ASSY

$

$

Not available

3

Simplicity 171692

KEY

$

$

Not available

4

Simplicity 106391

WASHER

$

$

Not available

5

Simplicity 2154291SM

RING, Retaining

$6.99

$

Usually ships in 2-12 days

0

6

Simplicity 923154

CAPSCREW, Hex, 1/2-13 x 1-1/2

$

$

Not available

7

Simplicity 2830644

NUT, Lock, Flange, 1/2-13

$

$

Not available

8

Simplicity 172811

ARM ASSY, Lift, L.H.

$

$

Not available

9

Simplicity 172823

ARM ASSY, Lift, R.H.

$

$

Not available

10

Simplicity 172812

GUARD, Wire, L.H.

$

$

Not available

11

Simplicity 172825

GUARD, Wire, R.H.

$

$

Not available

12

Simplicity 1707571SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

13

Simplicity 930556

SCREW, Thd. Forming, 1/4 x 1-1/4

$

$

Not available

14

Simplicity 172806

GUIDE, Wire
(Superseded to 5048970SM)

$11.99

$

Usually ships in 2-12 days

0

15

Simplicity 1655893

PULLEY, Cable

$

$

Not available

16

Simplicity 1655894

SPACER

$

$

Not available

17

Simplicity 2818430

WASHER, 7/16

$

$

Not available

18

Simplicity 2824650

NUT, Hex, Lock, 1/2-13

$

$

Not available

19

Simplicity 2172727SM

CABLE ASSY

$71.99

$

Usually ships in 2-12 days

0

20

Simplicity 1729281SM

PIN

$8.49

$

In Stock, only 1 left!

0

21

Simplicity 2106787

CLIP, Spring

$

$

Not available

22

Simplicity 173753

GUIDE, Wire

$

$

Not available
