9020 (1690230) - Simplicity Power Max Garden Tractor, 19.5hp Main Drive & Brake Lever Group - Diagram 2 Parts Diagram

Power Max Garden Tractor, 19.5hp

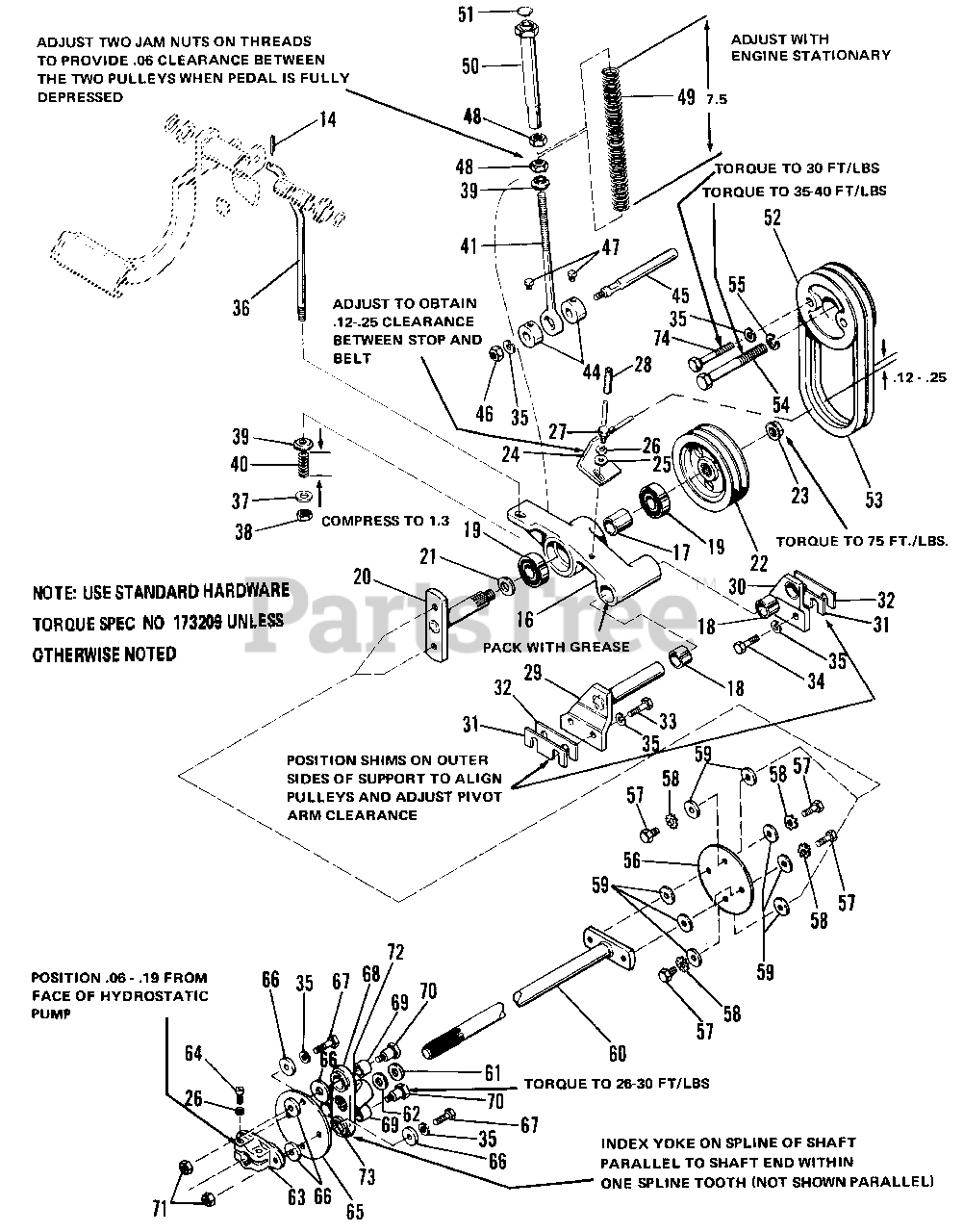

Main Drive & Brake Lever Group - Diagram 2 Parts Diagram

  • Title

14

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

16

Simplicity 176222

ARM, Pivot

$

$

Not available

17

Simplicity 176221

SPACER

$

$

Not available

18

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

19

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

20

Simplicity 2176217SM

SHAFT ASSY

$216.99

$

In Stock, only 1 left!

0

21

Simplicity 176219

WASHER

$

$

Not available

22

Simplicity 176216

PULLEY, Input

$

$

Not available

23

Simplicity 2830644

LOCKNUT, Hex, Flange, 1/2-13

$

$

Not available

24

Simplicity 173760

STOP ASSY, Belt

$

$

Not available

25

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

26

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 2817397

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

28

Simplicity 173010

HOSE

$

$

Not available

29

Simplicity 170932

SUPPORT ASSY

$

$

Not available

30

Simplicity 172975

SUPPORT ASSY

$

$

Not available

31

Simplicity 173042

SHIM

$

$

Not available

32

Simplicity 173043

SHIM

$

$

Not available

33

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

34

Simplicity 2817400

CAPSCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

35

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

Note: Qty 7 used on 1690230

$3.49

$

In Stock, Qty 16

0

36

Simplicity 1651150

ROD, Clutch

$

$

Not available

37

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

38

Simplicity 2823428

NUT, Hex, Lock, 3/8-16

$

$

Not available

39

Simplicity 171007

SPACER, Clutch

$

$

Not available

40

Simplicity 172868

SPRING

$

$

Not available

41

Simplicity 170959

BOLT, Eye

$

$

Not available

44

Simplicity 1729282SM

COLLAR, Set

$16.99

$

Usually ships in 2-12 days

0

45

Simplicity 170958

SHAFT, Pivot

$

$

Not available

46

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

47

Simplicity 2828691

SCREW, Set, 5/16-18 x 5/6

$

$

Not available

48

Simplicity 2817421

NUT, Hex, Jam, 3/8-16

$

$

Not available

49

Simplicity 2171011SM

SPRING

$75.99

$

In Stock, only 1 left!

0

50

Simplicity 176460

TUBE ASSY

$

$

Not available

51

Simplicity 177777

PLUG

$

$

Not available

52

Simplicity 172541

PULLEY, Input

$

$

Not available

53

Simplicity 2170921SM

"V" BELT, Set of 2

$40.99

$

In Stock, only 2 left!

0

54

Simplicity 930581

CAPSCREW, Hex, 7/16-14 x 4-1/2

Note: USE ON MFG. NO. 1690283

$

$

Not available

55

Simplicity 2818199

LOCKWASHER, 7/16

Note: USE ON MFG. NO. 1690283

$

$

Not available

56

Simplicity 2173026SM

COUPLING

$39.99

$

In Stock, only 1 left!

0

57

Simplicity 2821965

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

58

Simplicity 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

59

Simplicity 2157424SM

WASHER

$7.49

$

In Stock, Qty 5

0

60

Simplicity 176209

SHAFT ASSY

$

$

Not available

61

Simplicity 172266

WASHER, Rubber

$

$

Not available

62

Simplicity 177141

WASHER, Felt

$

$

Not available

63

Simplicity 176223

CLAMP, Yoke

$

$

Not available

64

Simplicity 2826269

CAPSCREW, Hex, Skt. Hd., 5/16-18 x 1-1/4

$

$

Not available

65

Simplicity 2175230SM

COUPLING

$73.99

$

In Stock, only 3 left!

0

66

Simplicity 2153052

WASHER

$

$

Not available

67

Simplicity 2821210

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

68

Simplicity 175229

YOKE

$

$

Not available

69

Simplicity 2177943SM

BUSHING

$18.99

$

Usually ships in 2-12 days

0

70

Simplicity 2108412

BOLT, Shoulder

$

$

Not available

71

Simplicity 2828352

NUT, Hex, Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 4 left!

0

72

Simplicity 2812808SM

FITTING, Lube, 1/4-28

$4.49

$

In Stock, Qty 20+

0

73

Simplicity 177134

PLUG

$

$

Not available

74

Simplicity 2821972

CAPSCREW, Hex, 3/8-16 x 2-1/2

Note: USE ON MFG. NO. 1690230

$

$

Not available
