9020 (1690230) - Simplicity Power Max Garden Tractor, 19.5hp Dual Hydraulic Valve Parts Diagram

Power Max Garden Tractor, 19.5hp

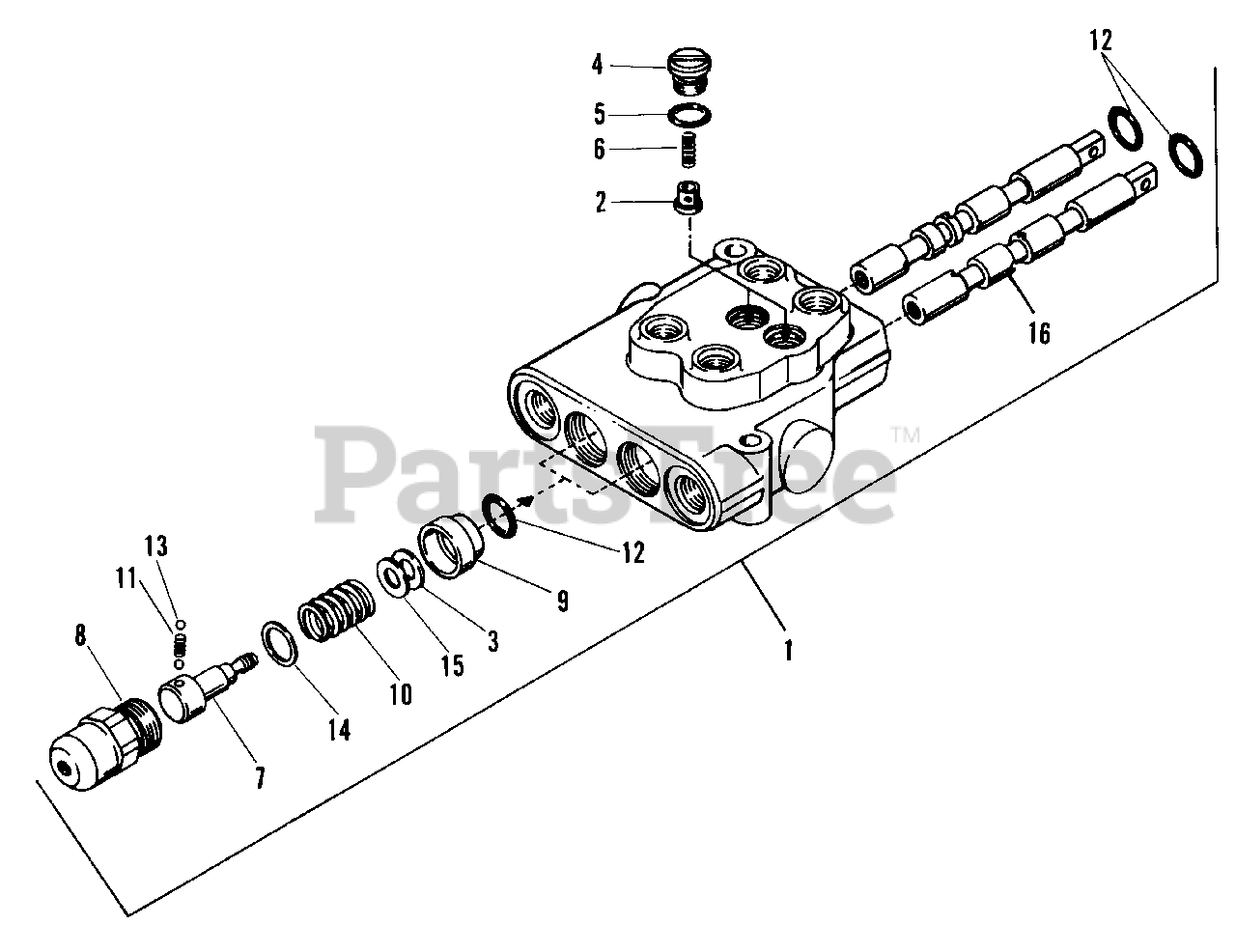

Dual Hydraulic Valve Parts Diagram

  • Title

1

Simplicity 171494

VALVE, Hydraulic

$

$

Not available

2

Simplicity 2174130SM

PLUNGER

$11.99

$

Usually ships in 2-12 days

0

3

Simplicity 1652045SM

WASHER,.046 Thick

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 174132

PLUG

$

$

Not available

5

Simplicity 2174133SM

O-RING

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 2174134SM

SPRING

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 174135

SCREW, Detent

$

$

Not available

8

Simplicity 174136

CAP ASSY.

$

$

Not available

9

Simplicity 174137

BUSHING

$

$

Not available

10

Simplicity 174138

SPRING

$

$

Not available

11

Simplicity 174139

SPRING

$

$

Not available

12

Simplicity 2174140

O-RING

$

$

Not available

13

Simplicity 918766

BALL

$

$

Not available

14

Simplicity 174142

WASHER, .046 Thick

$

$

Not available

15

Simplicity 1652044

Washer, .020 Thick (if equipped)

$

$

Not available

15

Simplicity 1652046

SEAL KIT, Repair

$

$

Not available

16

SPOOL (see Ref. No. 1)

$

$

Not available
