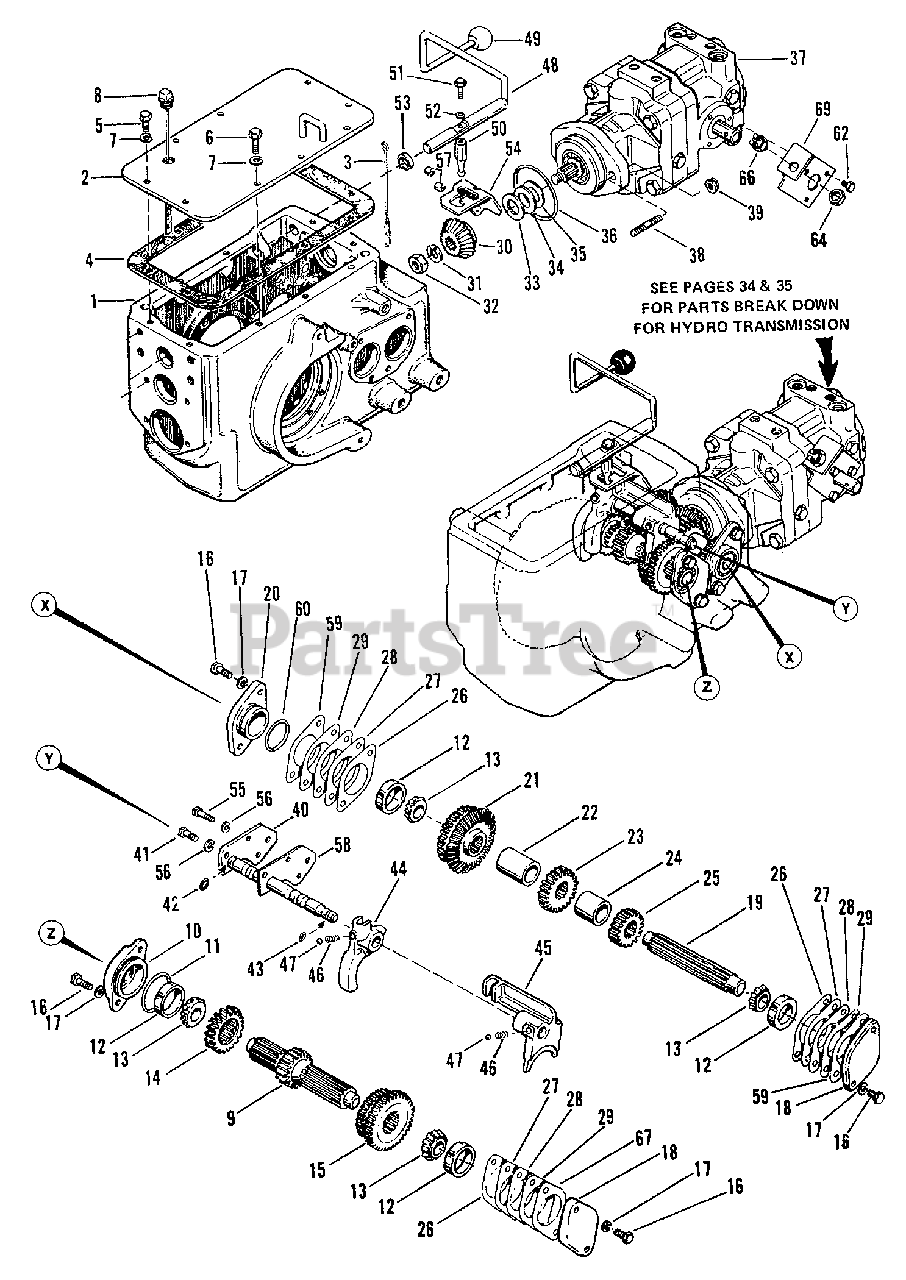

9020 (1690072) - Simplicity Power Max Garden Tractor, 19.5hp Transmission Group (3506I01) Parts Diagram

Power Max Garden Tractor, 19.5hp

Transmission Group (3506I01) Parts Diagram

  • Title

1

Simplicity 176600

CASE, Differential

$

$

Not available

2

Simplicity 174792

COVER ASSEMBLY

$

$

Not available

3

Simplicity 173473

BRUSH

$

$

Not available

4

Simplicity 2170831SM

GASKET

$

$

Not available

5

Simplicity 2808127

CAPSCREW, Hex, 3/8"-16 x 3/4" Lg.

$

$

Not available

6

Simplicity 2807731

CAPSCREW, Hex, 3/8"-16 x 1" Lg.

$

$

Not available

7

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

8

Simplicity 175835

DIP STICK ASSEMBLY

$

$

Not available

9

Simplicity 172857

SLIDING GEAR SHAFT

$

$

Not available

10

Simplicity 170774

CAP, Bearing

$

$

Not available

11

Simplicity 170838

RING, "O"

$

$

Not available

12

Simplicity 168008

CUP, Bearing

$

$

Not available

13

Simplicity 168007

CONE, Bearing

$

$

Not available

14

Simplicity 172855

GEAR, 20T

$

$

Not available

15

Simplicity 172862

GEAR, Lo and 2nd

$

$

Not available

16

Simplicity 2819357

CAPSCREW, Hex, 3/8"-16 x 7/8" Lg.

$

$

Not available

17

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

18

Simplicity 170773

CAP, Bearing

$

$

Not available

19

Simplicity 170823

SHAFT, Input

$

$

Not available

20

Simplicity 174555

CAP, Bearing

$

$

Not available

21

Simplicity 170833

BEVEL GEAR ASSEMBLY

$

$

Not available

22

Simplicity 170811

SPACER

$

$

Not available

23

Simplicity 170825

GEAR, 23T

$

$

Not available

24

Simplicity 170810

SPACER

$

$

Not available

25

Simplicity 170826

GEAR, 18T

$

$

Not available

26

Simplicity 170840

SHIM, .002 as required

$

$

Not available

27

Simplicity 170841

SHIM, .003 as required

$

$

Not available

28

Simplicity 170842

SHIM, .005 as required

$

$

Not available

29

Simplicity 170843

SHIM, .010 as required

$

$

Not available

30

Simplicity 170867

PINION, Bevel, 24T

$

$

Not available

31

Simplicity 172016

WASHER

$

$

Not available

32

Simplicity 2819262

NUT, Hex, Jam, 1/2"-20

$

$

Not available

33

Simplicity 170898

SHIM, .002 as required

$

$

Not available

34

Simplicity 170899

SHIM, .003 as required

$

$

Not available

35

Simplicity 2170900

SHIM, .005 as required

$

$

Not available

36

Simplicity 172915

RING, "O"

$

$

Not available

37

Simplicity 171189

HYDRO MOTOR, w/Pump

$

$

Not available

38

Simplicity 173424

STUD

$

$

Not available

39

Simplicity 2828352

LOCKNUT, Whiz
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

40

Simplicity 170809

SHIFT SHAFT ASSEMBLY

$

$

Not available

41

Simplicity 2808127

CAPSCREW, Hex, 3/8"-16 x 3/4" Lg.

$

$

Not available

42

Simplicity 2165006SM

RING, "O"

$10.99

$

Usually ships in 2-12 days

0

43

Simplicity 170837

RING, "O"

$

$

Not available

44

Simplicity 170776

FORK, Shift Hi

$

$

Not available

45

Simplicity 170777

FORK, Shift Lo, 2nd

$

$

Not available

46

Simplicity 2154323SM

SPRING

$30.99

$

Usually ships in 2-12 days

0

47

Simplicity 2154262

BALL

$

$

Not available

48

Simplicity 171310

SHIFTER SHAFT ASSEMBLY

$

$

Not available

49

Simplicity 173748

BALL

$

$

Not available

50

Simplicity 170804

STEM, Shift

$

$

Not available

51

Simplicity 2821333

CAPSCREW, Hex, 5/16"-18 x 1" Lg

$

$

Not available

52

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

53

Simplicity 2157619SM

SEAL

$20.99

$

In Stock, only 3 left!

0

54

Simplicity 172107

GUIDE, Shift

$

$

Not available

55

Simplicity 2821960

CAPSCREW, Hex, 1/4"-20 x 1" Lg.

$

$

Not available

56

Simplicity 172101

WASHER, Seal

$

$

Not available

57

Simplicity 2172656SM

SPACER

$21.99

$

Usually ships in 2-12 days

0

58

Simplicity 172106

GASKET

$

$

Not available

59

Simplicity 176803

SHIM PACK, .030

$

$

Not available

60

Simplicity 174554

RING, "O"

$

$

Not available

61

Simplicity 176309

BRACKET, Mounting

$

$

Not available

62

Simplicity 2825003

SCREW, Washer Head, 1/4-20 x 1/2" Lg.

$

$

Not available

63

Simplicity 1930647

NUT, 9/16"-18
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

64

Simplicity 176637

SWITCH

$

$

Not available
