9020 (1690072) - Simplicity Power Max Garden Tractor, 19.5hp Steering Group (3506I10) Parts Diagram

Power Max Garden Tractor, 19.5hp

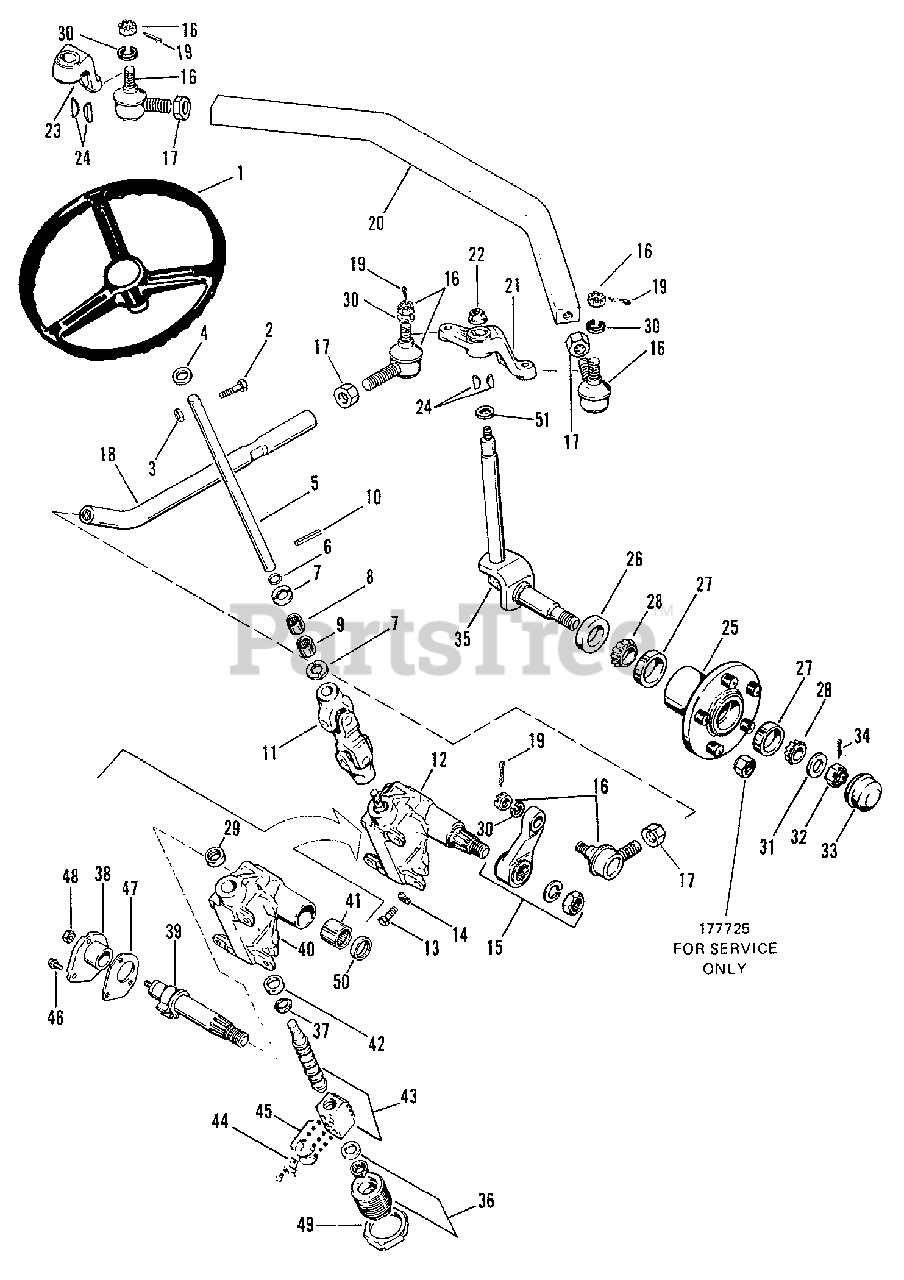

Steering Group (3506I10) Parts Diagram

  • Title

1

Simplicity 1606342SM

STEERING WHEEL

$

$

Not available

2

Simplicity 2821977

CAPSCREW, Hex, 5/16-18 x 1-1/4" Lg.

$

$

Not available

3

Simplicity 2829001

NUT, Hex, Lock, 5/16-18

$

$

Not available

4

Simplicity 172266

WASHER

$

$

Not available

5

Simplicity 171532

SHAFT, Steering

$

$

Not available

6

Simplicity 2157286

RING, Retaining

$

$

Not available

7

Simplicity 2101022

WASHER, Thrust

$

$

Not available

8

Simplicity 173197

BEARING, Roller

$

$

Not available

9

Simplicity 2171597SM

BEARING, Needle

$28.99

$

In Stock, only 1 left!

0

10

Simplicity 918390

PIN, Roll, 3/8 x 1-1/4" Lg.

$

$

Not available

11

Simplicity 173500

JOINT, "U"

$

$

Not available

12

Simplicity 171557

GEAR, Steering Complete

$

$

Not available

13

Simplicity 2820676SM

CAPSCREW, Hex

$4.49

$

In Stock, Qty 6

0

14

Simplicity 2818199

LOCKWASHER, 7/16"

$

$

Not available

15

Simplicity 172196

PITMAN ARM

$

$

Not available

16

Simplicity 2172499SM

JOINT, Ball

$107.99

$

Usually ships in 2-12 days

0

17

Simplicity 172508

NUT, Hex, Jam

$

$

Not available

18

Simplicity 171509

LINK, Drag

$

$

Not available

19

Simplicity 2818452

PIN, Cotter

$

$

Not available

20

Simplicity 173413

ROD, Tie

$

$

Not available

21

Simplicity 176813

STEERING ARM, R.H.

$

$

Not available

22

Simplicity 2172887

LOCKNUT, Washer Base

$

$

Not available

23

Simplicity 176815

STEERING ARM, L.H.

$

$

Not available

24

Simplicity 2830670SM

KEY

$2.49

$

Usually ships in 2-12 days

0

25

Simplicity 177740

HUB ASSEMBLY

$

$

Not available

26

Simplicity 2168108SM

SEAL

$43.99

$

Usually ships in 2-12 days

0

27

Simplicity 2170836SM

CUP, Bearing
(Superseded to 5020883SM)

$9.49

$

In Stock, Qty 9

0

28

Simplicity 2170835SM

CONE, Bearing

$

$

Not available

29

Simplicity 174166

SEAL

$

$

Not available

30

Simplicity 2816966

LOCKWASHER, 1/2"

$

$

Not available

31

Simplicity 1650316

WASHER, Thrust

$

$

Not available

32

Simplicity 930636

NUT, Slotted

$

$

Not available

33

Simplicity 2177724SM

CAP, Hub

$

$

Not available

34

Simplicity 2823500

PIN, Cotter

$

$

Not available

35

Simplicity 2176987SM

SPINDLE ASSEMBLY

$

$

Not available

36

Simplicity 174151

WORM BEARING ADJUSTMENT ASSEMBLY

$

$

Not available

37

Simplicity 174152

WORM BEARING ASSEMBLY

$

$

Not available

38

Simplicity 174153

COVER ASSEMBLY

$

$

Not available

39

Simplicity 174154

PITMAN GEAR ASSEMBLY

$

$

Not available

40

Simplicity 174155

HOUSING ASSEMBLY

$

$

Not available

41

Simplicity 174156

BEARING, Needle

$

$

Not available

42

Simplicity 174157

CUP, Bearing Thrust

$

$

Not available

43

Simplicity 174158

WORM ASSEMBLY

$

$

Not available

44

Simplicity 174159

CLAMMP, Ball Return

$

$

Not available

45

Simplicity 174160

GUIDE, Ball Return

$

$

Not available

46

Simplicity 2174161

BOLT, Hex

$

$

Not available

47

Simplicity 174162

GASKET

$

$

Not available

48

Simplicity 174163

NUT, Hex

$

$

Not available

49

Simplicity 174164

LOCKNUT

$

$

Not available

50

Simplicity 174165

SEAL, Grease

$

$

Not available

51

Simplicity 1591168

WASHER

$

$

Not available
