9020 (1690072) - Simplicity Power Max Garden Tractor, 19.5hp Hydraulic Group (3506I09) Parts Diagram

Power Max Garden Tractor, 19.5hp

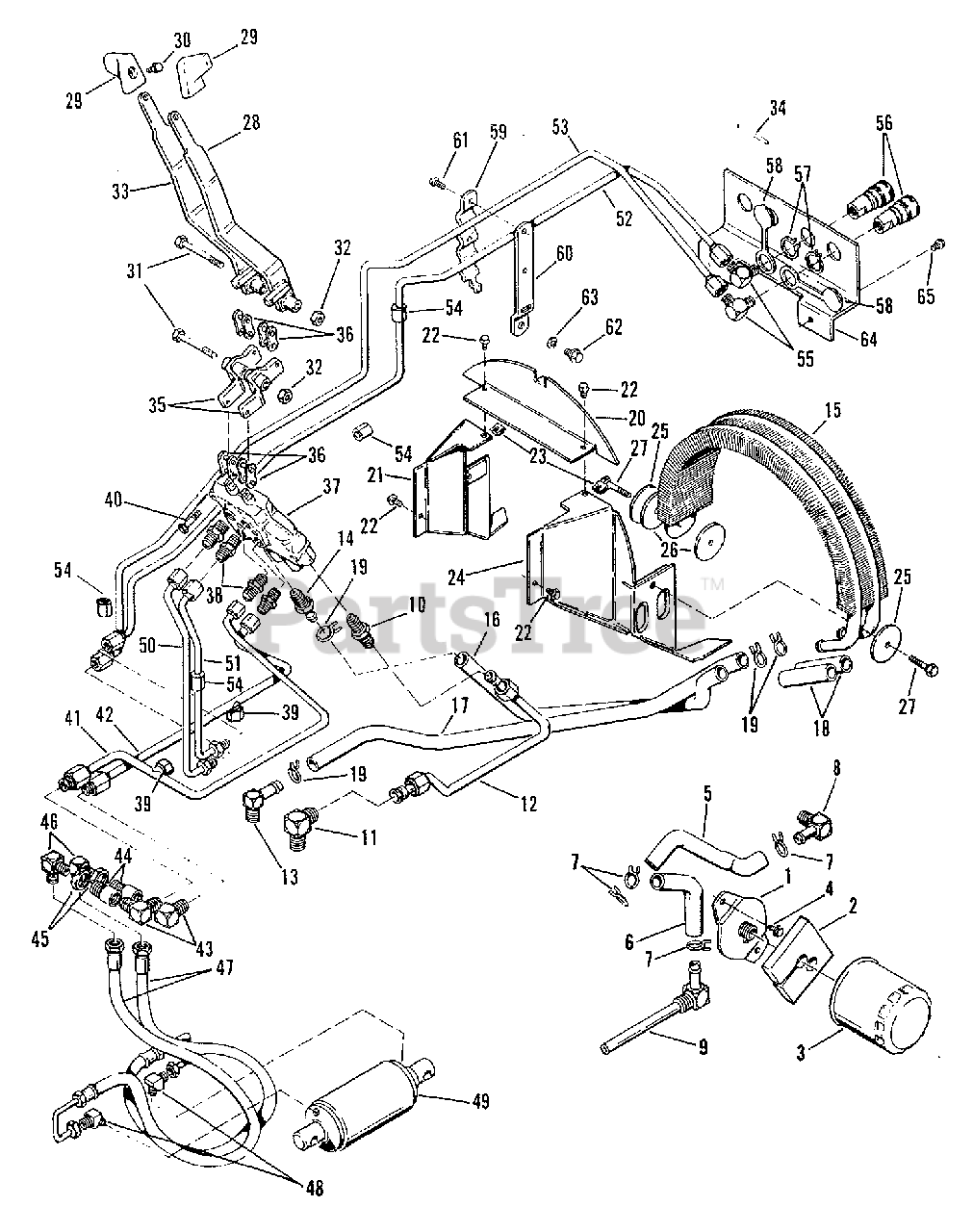

Hydraulic Group (3506I09) Parts Diagram

  • Title

1

Simplicity 171842

FILTER PLATE ASSEMBLY

$

$

Not available

2

Simplicity 173120

PAD

$

$

Not available

3

Simplicity 2171439

FILTER, Oil

$

$

Not available

4

Simplicity 2824856

CAPSCREW, Hex, 5/16-18 x 1/2" Lg.

$

$

Not available

5

Simplicity 2175119

HOSE, Hydraulic

$

$

Not available

6

Simplicity 171454

HOSE, Hydraulic

$

$

Not available

7

Simplicity 2171457

CLAMP, Hose

$

$

Not available

8

Simplicity 174627

ELBOW, 90 Degrees

$

$

Not available

9

Simplicity 174628

ELBOW, 90 Degrees

$

$

Not available

10

Simplicity 171460

CONNECTOR, Male

$

$

Not available

11

Simplicity 171461

ELBOW, 90 Degrees

$

$

Not available

12

Simplicity 172838

TUBE ASSEMBLY

$

$

Not available

13

Simplicity 173051

ELBOW, 90 Degrees

$

$

Not available

14

Simplicity 2171465SM

CONNECTOR, Hose

$19.99

$

Usually ships in 2-12 days

0

15

Simplicity 172116

COOLER, Oil

$

$

Not available

16

Simplicity 2172322

HOSE, Hydraulic

$

$

Not available

17

Simplicity 2172323

HOSE, Hydraulic

$

$

Not available

18

Simplicity 173227

HOSE, Hydraulic

$

$

Not available

19

Simplicity 2166044

CLAMP, Hose

$

$

Not available

20

Simplicity 174474

UPPER SHROUD, Rear

$

$

Not available

21

Simplicity 174524

SHROUD ASSEMBLY, L.H.

$

$

Not available

22

Simplicity 2827428

SCREW, Thread Forming, 1/4"-20 x 3/8" Lg.

$

$

Not available

23

Simplicity 2830662

NUT, Speed

$

$

Not available

24

Simplicity 174476

SHROUD ASSEMBLY, R.H.

$

$

Not available

25

Simplicity 2166150

WASHER

$

$

Not available

26

Simplicity 172757

WASHER

$

$

Not available

27

Simplicity 2825003

SCREW, Thread Forming, 1/4"-20 x 1-1/2" Lg.

$

$

Not available

28

Simplicity 171105

LEVER ASSEMBLY

$

$

Not available

29

Simplicity 2171165

KNOB

$

$

Not available

30

Simplicity 2825592SM

SCREW, Thread Forming, 1/4"-20 x 3/4" Lg.

$2.99

$

Usually ships in 2-12 days

0

31

Simplicity 2819959

CAPSCREW, Hex, 3/8"-16 x 2-3/4" Lg.

$

$

Not available

32

Simplicity 2828731

NUT, Hex, Jam 3/8"-16

$

$

Not available

33

Simplicity 175153

LEVER ASSEMBLY

$

$

Not available

34

Simplicity 173811

FILM, "Power Lift"

$

$

Not available

35

Simplicity 171104

BELLCRANK ASSEMBLY

$

$

Not available

36

Simplicity 2171101

LINK, Connector

$

$

Not available

37

Simplicity 171494

VALVE, Hydraulic

$

$

Not available

38

Simplicity 173115

CONNECTOR, Male

$

$

Not available

39

Simplicity 173117

CAP

$

$

Not available

40

Simplicity 930602

CAPSCREW, Hex, 1/4"-20 x 1-3/4" Lg.

$

$

Not available

41

Simplicity 172830

TUBE ASSEMBLY

$

$

Not available

42

Simplicity 172835

TUBE ASSEMBLY

$

$

Not available

43

Simplicity 173116

ELBOW

$

$

Not available

44

Simplicity 173073

FITTING

$

$

Not available

45

Simplicity 173074

NUT

$

$

Not available

46

Simplicity 173319

ELBOW

$

$

Not available

47

Simplicity 2172305SM

HOSE

$

$

Not available

48

Simplicity 2172320SM

FITTING

$22.99

$

Usually ships in 2-12 days

0

49

Simplicity 2168279

CYLINDER

$

$

Not available

50

Simplicity 172836

TUBE ASSEMBLY

$

$

Not available

51

Simplicity 172837

TUBE ASSEMBLY

$

$

Not available

52

Simplicity 172833

TUBE ASSEMBLY

$

$

Not available

53

Simplicity 172834

TUBE ASSEMBLY

$

$

Not available

54

Simplicity 176574

SPACER

$

$

Not available

55

Simplicity 173116

ELBOW

$

$

Not available

56

Simplicity 2173358SM

BODY ASSEMBLY

$74.99

$

In Stock, only 1 left!

0

57

Simplicity 2166017SM

RING, Retaining

$1.99

$

Usually ships in 2-12 days

0

58

Simplicity 2173360SM

PLUG, Plastic

$16.99

$

In Stock, Qty 6

0

59

Simplicity 172766

CLAMP

$

$

Not available

60

Simplicity 172767

BRACKET

$

$

Not available

61

Simplicity 2827429

SCREW, Taptite, 1/4"-20 x 5/8" Lg.

$

$

Not available

62

Simplicity 2818228

CAPSCREW, Hex, 3/8"-16 x 5/8" Lg.

$

$

Not available

63

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

64

Simplicity 172755

PLATE, Mounting

$

$

Not available

65

Simplicity 2825003

SCREW, Washer Head, 1/4"-20

$

$

Not available
