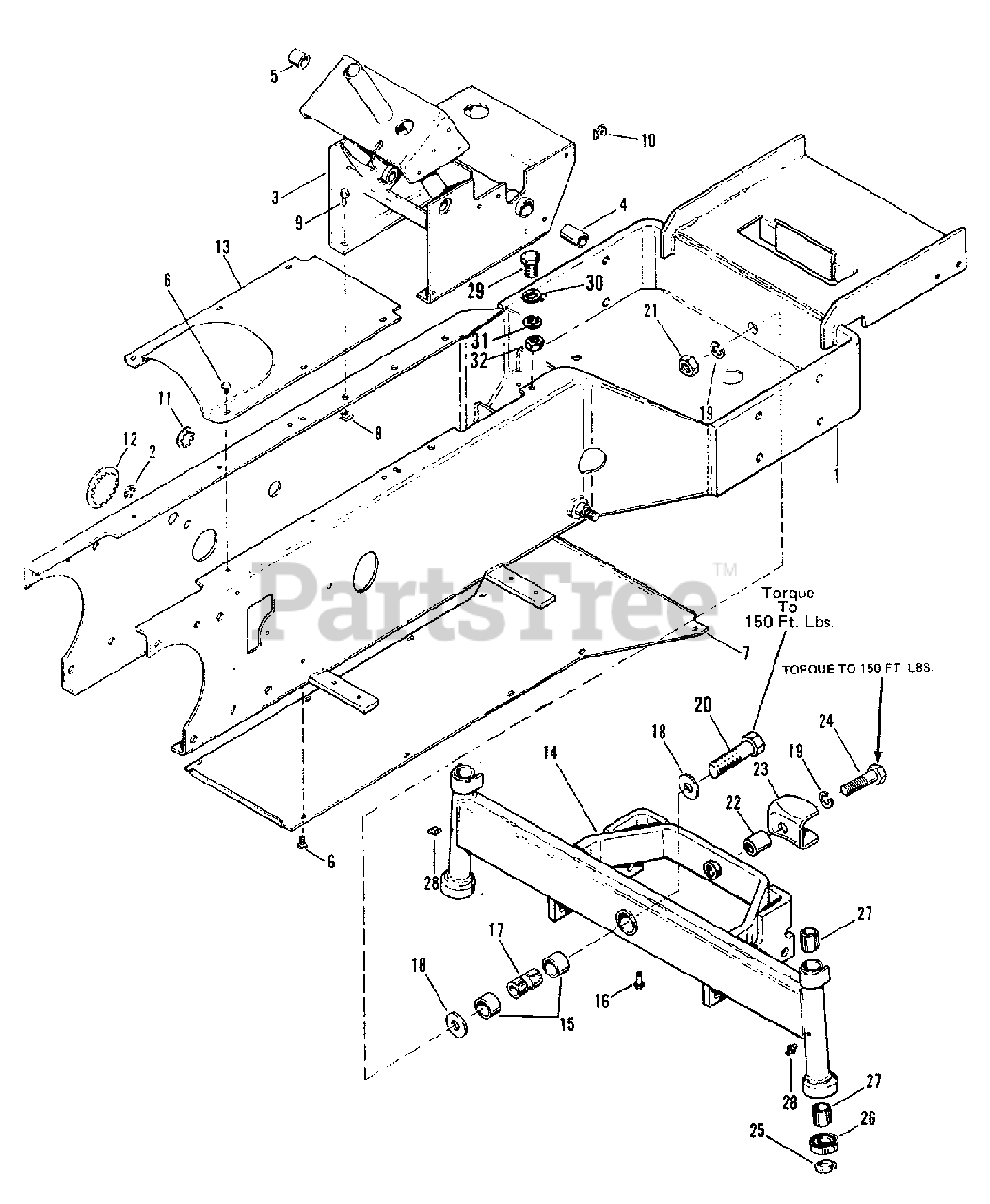

9020 (1690072) - Simplicity Power Max Garden Tractor, 19.5hp Frame and Front Axle Group (3506I03) Parts Diagram

Power Max Garden Tractor, 19.5hp

Frame and Front Axle Group (3506I03) Parts Diagram

  • Title
1

Simplicity 176593

FRAME ASSEMBLY

$

$

Not available

2

Simplicity 174277

PLUG, Hole

$

$

Not available

3

Simplicity 171959

SUPPORT ASSEMBLY

$

$

Not available

4

$

$

Not available

5

Simplicity 168140

BEARING, Sleeve

$

$

Not available

6

Simplicity 2715124

SCREW, Washer Head Taptite, 1/4"-20 x 3/8" Lg

$

$

Not available

7

Simplicity 172629

COVER, Bottom

$

$

Not available

8

Simplicity 930663

NUT, Clip

$

$

Not available

9

Simplicity 2830617

SCREW, Washer Head

$

$

Not available

10

Simplicity 2830664

NUT, Speed

$

$

Not available

11

Simplicity 173339

PLUG, Hole

$

$

Not available

12

Simplicity 173341

PLUG, Hole

$

$

Not available

13

Simplicity 176539

COVER, Top

$

$

Not available

14

Simplicity 168082

AXLE ASSEMBLY

$

$

Not available

$

$

Not available

16

Simplicity 2172761SM

FITTING, Grease

$6.99

$

Usually ships in 2-12 days

0

17

Simplicity 2168092

SPACER, Axle

$

$

Not available

18

Simplicity 168093

WASHER, Thrust

$

$

Not available

19

Simplicity 2817373

LOCKWASHER, 5/8"

$

$

Not available

20

Simplicity 925702

CAPSCREW, Hex, 5/8"-11 x 3-1/2" Lg.

$

$

Not available

21

Simplicity 2815726

NUT, Hex, Full, 5/8"-11

$

$

Not available

$43.99

$

Usually ships in 2-12 days

0

23

$

$

Not available

24

Simplicity 2827430

SCREW, 5/8"-11 x 2-1/4" Lg.

$

$

Not available

25

Simplicity 168101

SPACER, Bearing

$

$

Not available

26

Simplicity 168102

BEARING, Thrust

$

$

Not available

27

Simplicity 2168103SM

BUSHING, Spindle

$32.99

$

In Stock, only 3 left!

0

28

Simplicity 2814687

FITTING, Grease

$

$

Not available

29

Simplicity 2817397

CAPSCREW, Hex, 5/16"-3/4" Lg. Gr.2

$

$

Not available

30

Simplicity 1924940SM

WASHER, Flat, 5/16
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1917372SM

NUT, Hex, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
