9020 (1690072) - Simplicity Power Max Garden Tractor, 19.5hp Brake Group (3506I04) Parts Diagram

Power Max Garden Tractor, 19.5hp

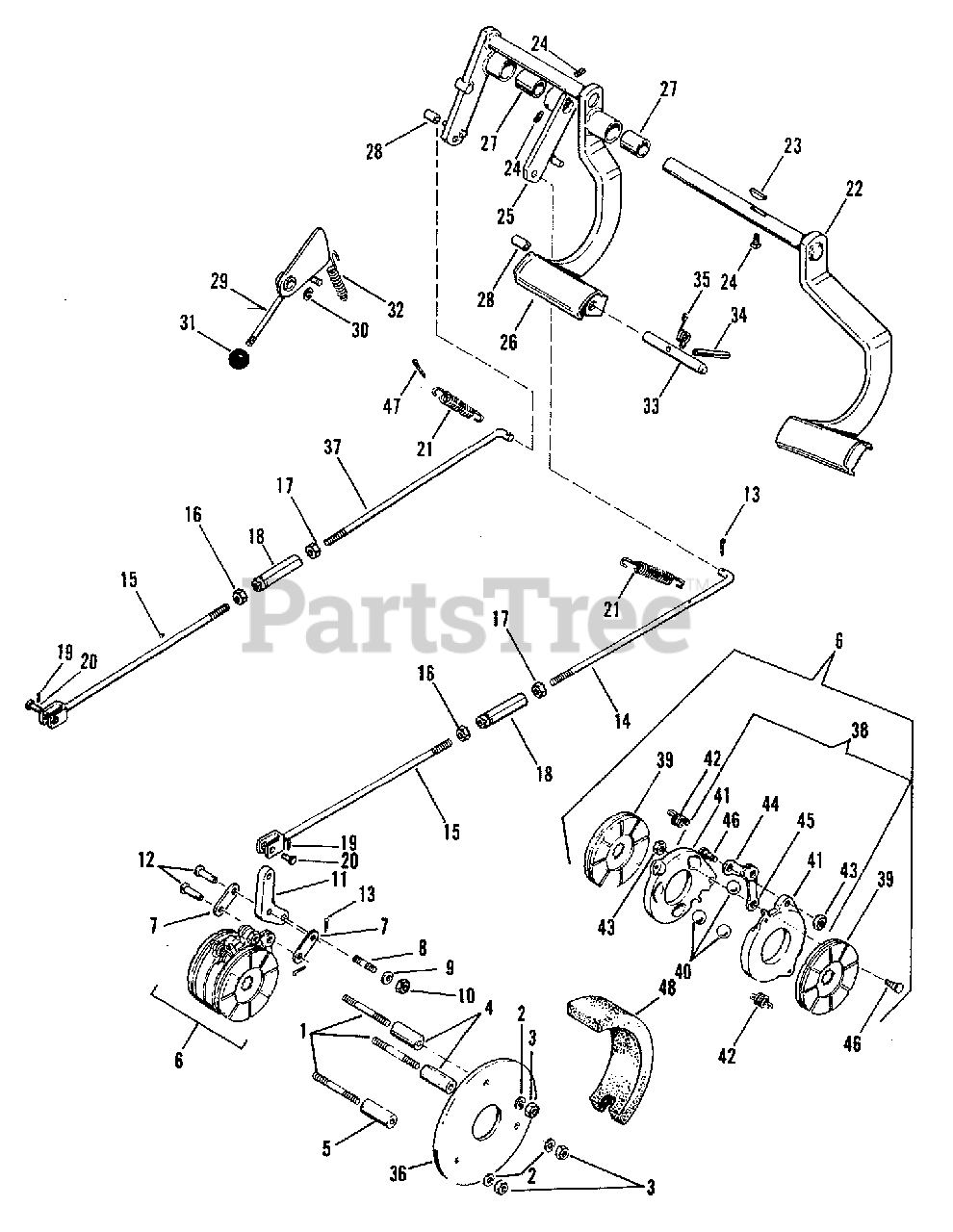

Brake Group (3506I04) Parts Diagram

  • Title

1

Simplicity 170806

STUD

$

$

Not available

2

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

3

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

4

Simplicity 170814

SPACER

$

$

Not available

5

Simplicity 170813

SPACER

$

$

Not available

6

Simplicity 168063

BRAKE ASSEMBLY

$

$

Not available

7

Simplicity 170802

PLATE, Link

$

$

Not available

8

Simplicity 170803

STUD

$

$

Not available

9

Simplicity 2817642

WASHER, Plain, 5/16"

$

$

Not available

10

Simplicity 2828731

NUT, Hex, Full, Lock, 3/8"-16

$

$

Not available

11

Simplicity 170816

LEVER, Brake

$

$

Not available

12

Simplicity 2108158

PIN

$

$

Not available

13

Simplicity 2818447

PIN, cotter, 3/32" x 3/4" Lg.

$

$

Not available

14

Simplicity 172864

ROD, Front Brake, R.H.

$

$

Not available

15

Simplicity 172900

REAR BRAKE ROD ASSEMBLY

$

$

Not available

16

Simplicity 2818403

NUT, Hex, Jam, 3/8"-24 R.H.

$

$

Not available

17

Simplicity 930625

NUT, Hex, Jam, 3/8"-24 L.H.

$

$

Not available

18

Simplicity 164072

TURNBUCKLE

$

$

Not available

19

Simplicity 2818447

PIN, Cotter

$

$

Not available

20

Simplicity 2108158

PIN

$

$

Not available

21

Simplicity 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

22

Simplicity 168112

BRAKE LEVER ASSEMBLY, R.H.

$

$

Not available

23

Simplicity 173272

KEY

$

$

Not available

24

Simplicity 2828709

SCREW, Set, 5/16"-18 x 3/8" Lg.

$

$

Not available

25

Simplicity 168126

BRAKE ROD ANCHOR ASSEMBLY

$

$

Not available

26

Simplicity 168116

BRAKE LEVER ASSEMBLY, L.H.

$

$

Not available

27

Simplicity 168119

SLEEVE, Bearing

$

$

Not available

28

Simplicity 173417

STOP, Rubber

$

$

Not available

29

Simplicity 175218

CAM ASSEMBLY

$

$

Not available

30

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

31

Simplicity 2122005SM

KNOB

$14.99

$

Usually ships in 2-12 days

0

32

Simplicity 173761

SPRING

$

$

Not available

33

Simplicity 173442

PIN, Pedal Lock

$

$

Not available

34

Simplicity 921272

PIN, Roll

$

$

Not available

35

Simplicity 173755

SPRING

$

$

Not available

36

Simplicity 171562

PLATE, Shim

$

$

Not available

37

Simplicity 173955

ROD, Front Brake, L.H.

$

$

Not available

38

Simplicity 174669

ACTUATING DISC ASSEMBLY

$

$

Not available

39

Simplicity 2174668SM

MIDDLE DISC ASSEMBLY

$231.99

$

Usually ships in 2-12 days

0

40

Simplicity 174670

BALL

$

$

Not available

41

Simplicity 174671

DISC, Actuating

$

$

Not available

42

Simplicity 2174672SM

SPRING

$

$

Not available

43

Simplicity 174673

NUT, Hex, Jam

$

$

Not available

44

Simplicity 174674

LINK ASSEMBLY, Yoke

$

$

Not available

45

Simplicity 174675

LINK, Actuating

$

$

Not available

46

Simplicity 174676

STUD

$

$

Not available

47

Simplicity 918455

PIN, Cotter, 5/32 x 1

$

$

Not available

48

Simplicity 2176528

PAD

$

$

Not available
