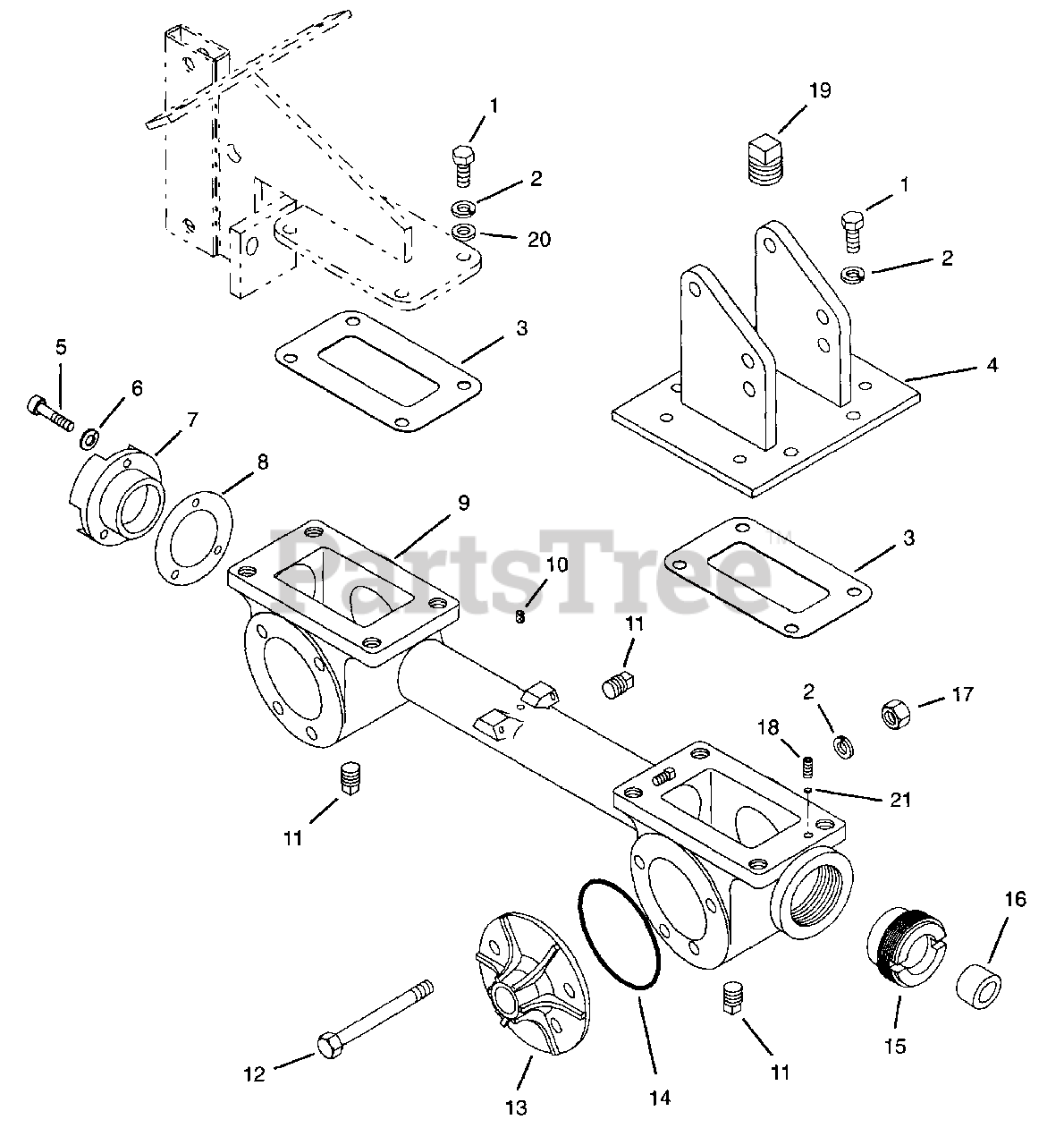

901428 (RT 5020) - Ariens 20" Rear Tine Tiller, 5hp Tecumseh (SN: 000101 & Above) Gearcase Parts Diagram

20" Rear Tine Tiller, 5hp Tecumseh

Gearcase Parts Diagram

  • Title
1

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

3

$9.99

$

Usually ships in 4-12 days

0

4

Ariens 00130400

HANDLEBAR MOUNT

$

$

Not available

5

Ariens 05909300

SCR-SKH .25-20X.75 PL

$

$

Not available

6

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00152000

REAR CAP

$

$

Not available

8

Ariens 00152400

GASKET - REAR CAP

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 00152100

GEAR CASE
(Superseded to 00152151)

$775.99

$

Usually ships in 4-12 days

0

10

Ariens 00200900

BREATHER

$

$

Not available

11

Ariens 00150900

PIPE PLUG, 1/4 NPT

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$

$

Not available

13

Ariens 00151900

AXLE HOUSING

$

$

Not available

14

Ariens 05613400

O-RING 3.625X3.875X.135

$4.99

$

In Stock, only 4 left!

0

15

Ariens 00152200

ADJUSTMENT PLUG

$

$

Not available

16

Ariens 05613800

SEAL .750X1.250X.136

$12.99

$

In Stock, Qty 6

0

17

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

18

Ariens 06005400

SCR-SET .25-20X.25 SKHCUPDL

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 00113700

PIPE PLUG

$

$

Not available

20

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

21

$6.49

$

Usually ships in 4-12 days

0
