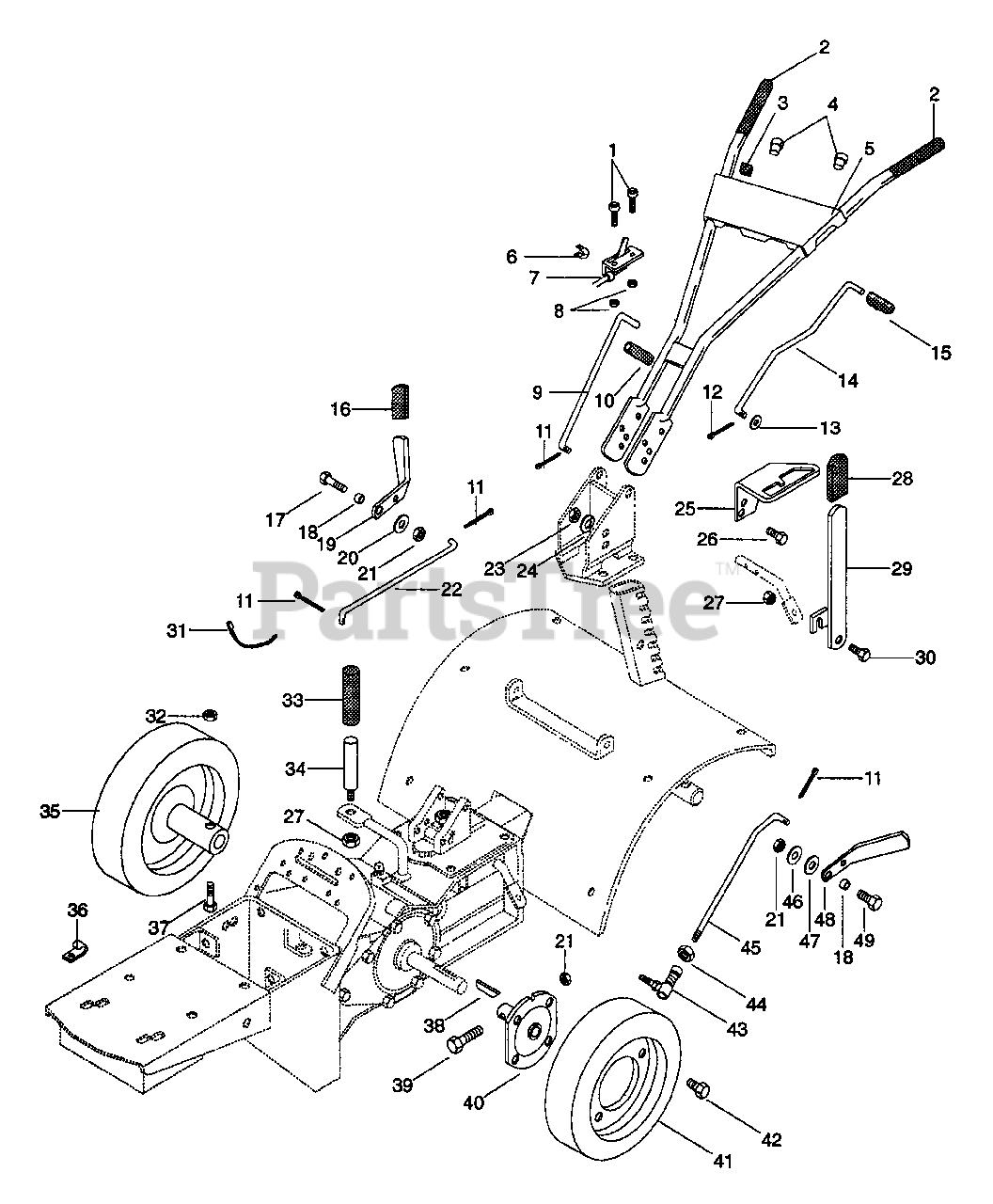

901418 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Kohler (SN: 000101 & Above) Controls And Wheels Parts Diagram

20" Rear Tine Tiller, 8hp Kohler

Controls And Wheels Parts Diagram

  • Title

1

Ariens 06101200

SCR-MCH 10-24X.50 SLRH PL
(Superseded to 06117600)

Note: (901017,019)

$2.99

$

Usually ships in 4-12 days

0

1

Ariens 06105700

SCR-MCH 10-24X.50 SLRH BL

Note: (901018, 418)

$

$

Not available

2

Ariens 07507700

HANDLEGRIP

$

$

Not available

3

Ariens 07510100

KNOB, CONTROL-THROTTLE

Note: (901017, 018, 019, 418)

$

$

Not available

4

Ariens 07511200

SNAP BUSHING

Note: (901017, 018, 019, 418)

$1.49

$

In Stock, only 2 left!

0

4

Ariens 07511200

SNAP BUSHING

Note: (901016)

$1.49

$

In Stock, only 2 left!

0

5

Ariens 00142300

HANDLE BAR

Note: (901016)

$

$

Not available

5

Ariens 00130900

HANDLEBAR

Note: (901018, 018, 019, 418)

$

$

Not available

6

Ariens 07510000

CABLE RETAINER

Note: (901017, 018, 019, 418)

$

$

Not available

7

Ariens 06913100

THROTTLE CONTROL

Note: (901017)

$

$

Not available

7

Ariens 06914500

THROTTLE CONTROL

Note: (901018, 418)

$43.99

$

Usually ships in 4-12 days

0

7

Ariens 06917200

THROTTLE CONTROL

Note: (901019)

$

$

Not available

8

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

9

Ariens 00131400

POSITION ROD

Note: (901017, 018, 019, 418)

$

$

Not available

10

Ariens 07514600

GRIP - 5/16 ID X 2 7/8 - BLACK
(Superseded to 07530200)

Note: (901017, 018, 019, 418)

$1.99

$

Usually ships in 4-12 days

0

11

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

12

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

13

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 00139100

CLUTCH ROD

Note: (016,017,019)

$

$

Not available

14

Ariens 00134200

CLUTCH ROD

Note: (901018, 418)

$

$

Not available

15

Ariens 07514700

GRIP - 3/8 ID X 2 7/8 - BLACK

$

$

Not available

16

Ariens 07509400

GRIP

Note: (901017, 018, 019, 418)

$

$

Not available

17

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 11

0

18

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

Note: (901017, 018, 019, 418)

$14.99

$

Usually ships in 4-12 days

0

19

Ariens 00104200

DRIVE CLUTCH HANDLE
(Superseded to 00104259)

Note: (901017, 018, 019, 418)

$

$

Not available

20

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 00111500

DRIVE CLUTCH ROD

Note: (901017, 018, 019, 418)

$45.99

$

Usually ships in 4-12 days

0

23

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

25

Ariens 00145500

QUADRANT

Note: (901016)

$

$

Not available

26

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

Note: (901016)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06504300

NUT-LK-CTR .312-24 PL
(Superseded to 06537000)

Note: (901017, 018, 019, 418)

$

$

Not available

28

Ariens 07512800

GRIP

Note: (901016)

$

$

Not available

29

Ariens 00140800

ENGAGING ARM

Note: (901016)

$

$

Not available

30

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

31

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

Note: (901019)

$

$

Not available

32

Ariens 06513200

NUT-LK .437-14 GR A PL
(Superseded to 06536400)

$2.99

$

In Stock, Qty 12

0

33

Ariens 07514800

GRIP - 1/2 ID X 4 1/2 - BLACK

Note: (901016)

$8.99

$

In Stock, only 1 left!

0

34

Ariens 00145700

CLUTCH ARM

Note: (901016)

$

$

Not available

35

Ariens 07113700

WHL

Note: (901016)

$

$

Not available

35

Ariens 07113800

TIRE

Note: (901016)

$46.99

$

Usually ships in 4-12 days

0

35

Ariens 07115500

WHL 13X5.00-6

Note: (901016)

$

$

Not available

35

Ariens 07115600

WHL

Note: (901016)

$

$

Not available

36

Ariens 06905700

CLIP

Note: (901019)

$

$

Not available

37

Ariens 05900800

BLT-HEX .44-14X2.00 PL GR2

$

$

Not available

38

Ariens 06601000

KEY-FTHR .25X1.875X.25 SAE

$4.99

$

Usually ships in 4-12 days

0

39

Ariens 05905700

BLT-HEX .31-18X2.00 PL GR2
(Superseded to 05957200)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 00122600

WHEEL HUB
(Superseded to 00122651)

Note: (901017, 019)

$60.99

$

In Stock, only 1 left!

0

40

Ariens 00132700

WHEEL HUB
(Superseded to 00132751)

Note: (901018, 418)

$

$

Not available

41

Ariens 07115900

T/WHL ASSY

Note: (017,018,418)

$

$

Not available

41

Ariens 07116000

T/WHL ASSY

Note: (017,018,418)

$

$

Not available

41

Ariens 07121900

T/WHL ASSY 4.80-8
(Superseded to 07100017)

Note: (901017, 018, 019, 418)

$136.99

$

Usually ships in 4-12 days

0

41

Ariens 07111100

TIRE

Note: (017,018,418)

$

$

Not available

41

Ariens 07121800

TIRE 4.80-8 NHS

Note: (901017, 018, 019, 418)

$74.99

$

Usually ships in 4-12 days

0

41

Ariens 07107600

WHL

Note: (901017, 018, 019, 418)

$67.99

$

In Stock, only 1 left!

0

42

Ariens 07406300

SCR-TAP .500-20X.62 HH PL
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0

43

Ariens 00306000

SNAP IN BALL JOINT

Note: (901017, 018, 019, 418)

$

$

Not available

44

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$1.99

$

Usually ships in 4-12 days

0

45

Ariens 00104400

TILLER CLUTCH ROD

Note: (901017, 018, 019, 418)

$

$

Not available

46

Ariens 06412800

WSHR-FL-STL .344X1.375X.075 PL
(Superseded to 06446900)

$2.49

$

In Stock, only 2 left!

0

47

Ariens 02513500

SPACER .344X1.000X.375

Note: (901017,018,019,418)

$

$

Not available

48

Ariens 00104300

TILLER CLUTCH HANDLE
(Superseded to 00104359)

Note: (901017, 018, 019, 418)

$

$

Not available

49

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0
