90112-0128-XX - Briggs & Stratton Horizontal Engine Piston Grp Parts Diagram

Horizontal Engine

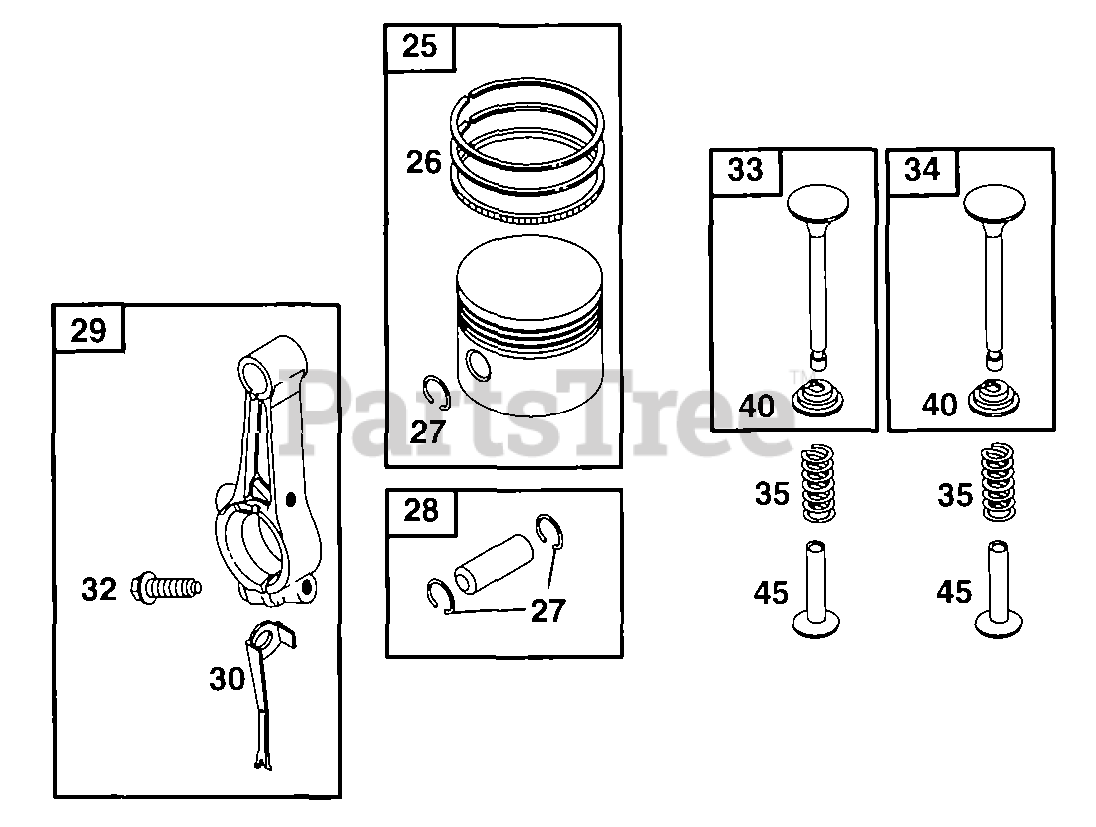

Piston Grp Parts Diagram

  • Title

25

Briggs & Stratton 498668

Piston Assy-Std
(Superseded to 795691)

$111.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498669

Piston Assy. (.010" O.S.)

$54.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498670

Piston Assy. (.020" O.S.)
(Superseded to 795689)

$80.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498671

Piston Assy-030

$53.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498680

Ring Set-Std

$

$

Not available

26

Briggs & Stratton 498681

Ring-Set (.010" O.S.)

$26.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498682

Ring-Set (.020" O.S.)

$42.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498683

Ring-Set (.030" O.S.)

$21.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

Pin-Piston 005 (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 294367

Rod-Connecting (Standard)
(Superseded to 699655)

$39.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 296079

Rod-Connecting 020

$18.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 220670

Dipper-Connecting Rod
(Superseded to 691719)

$7.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94699

Screw, Hex Flange H
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

Valve-Intake (Grooved stem-includes Retainer)

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0
