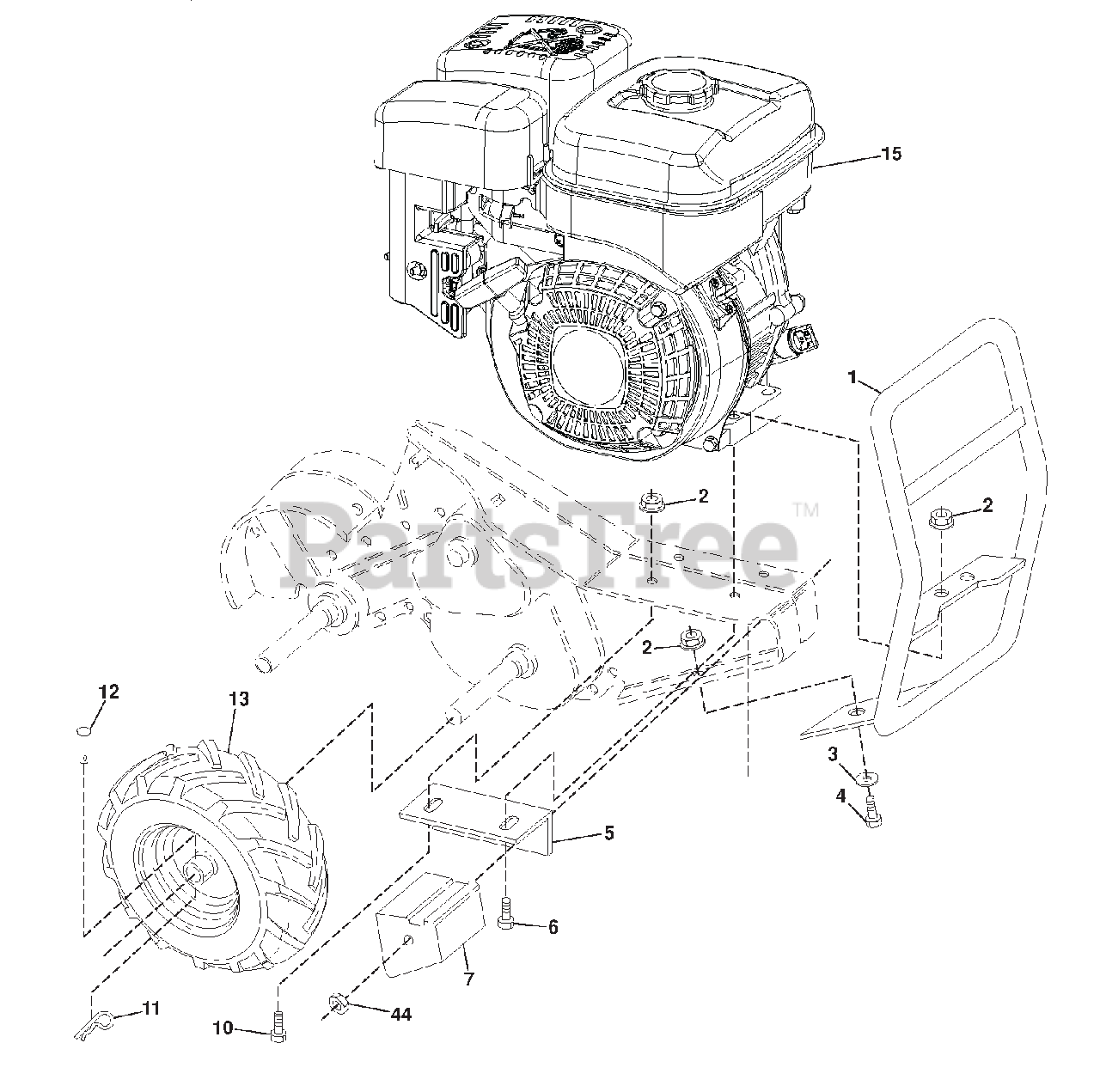

901028 (960960001-03) - Ariens 17" Rear Tine Tiller, Subaru Mainframe, Right Side Parts Diagram

17" Rear Tine Tiller, Subaru

Mainframe, Right Side Parts Diagram

  • Title

1

Ariens 21546231

Bumper

$

$

Not available

2

Ariens 21546796

Nut, Hex, Flangelock
(Superseded to 06500020)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 21546279

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 21546804

Bolt, Hex Head 5/16-18 x 3/4

$5.99

$

In Stock, only 4 left!

0

5

Ariens 21546017

Bracket, Reinforcement

$

$

Not available

6

Ariens 21546808

Bolt, Fin Hex 5/16-18 unc x 1-

$

$

Not available

7

Ariens 21546014

Counter Weight, RH

$

$

Not available

10

Ariens 21546807

Bolt, Hex Head, Gr. 25/16-18 x
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

11

Ariens 21547536

RETAINER SPRING
(Superseded to 21546739)

$

$

Not available

12

Ariens 21546078

Rivet, Drilled

$7.49

$

Usually ships in 4-12 days

0

13

Ariens 21546015

Tire

$109.99

$

Usually ships in 4-12 days

0

Ariens 21547972

RIM

$

$

Not available

Ariens 21547973

TIRE VALVE

$

$

Not available

15

Ariens 21547975

ENGINE

Note: (422996) (Order parts from engine manufacturer.)

$

$

Not available

44

Ariens 21546781

Nut Keps Hex 3/8-16 unc

$

$

Not available
