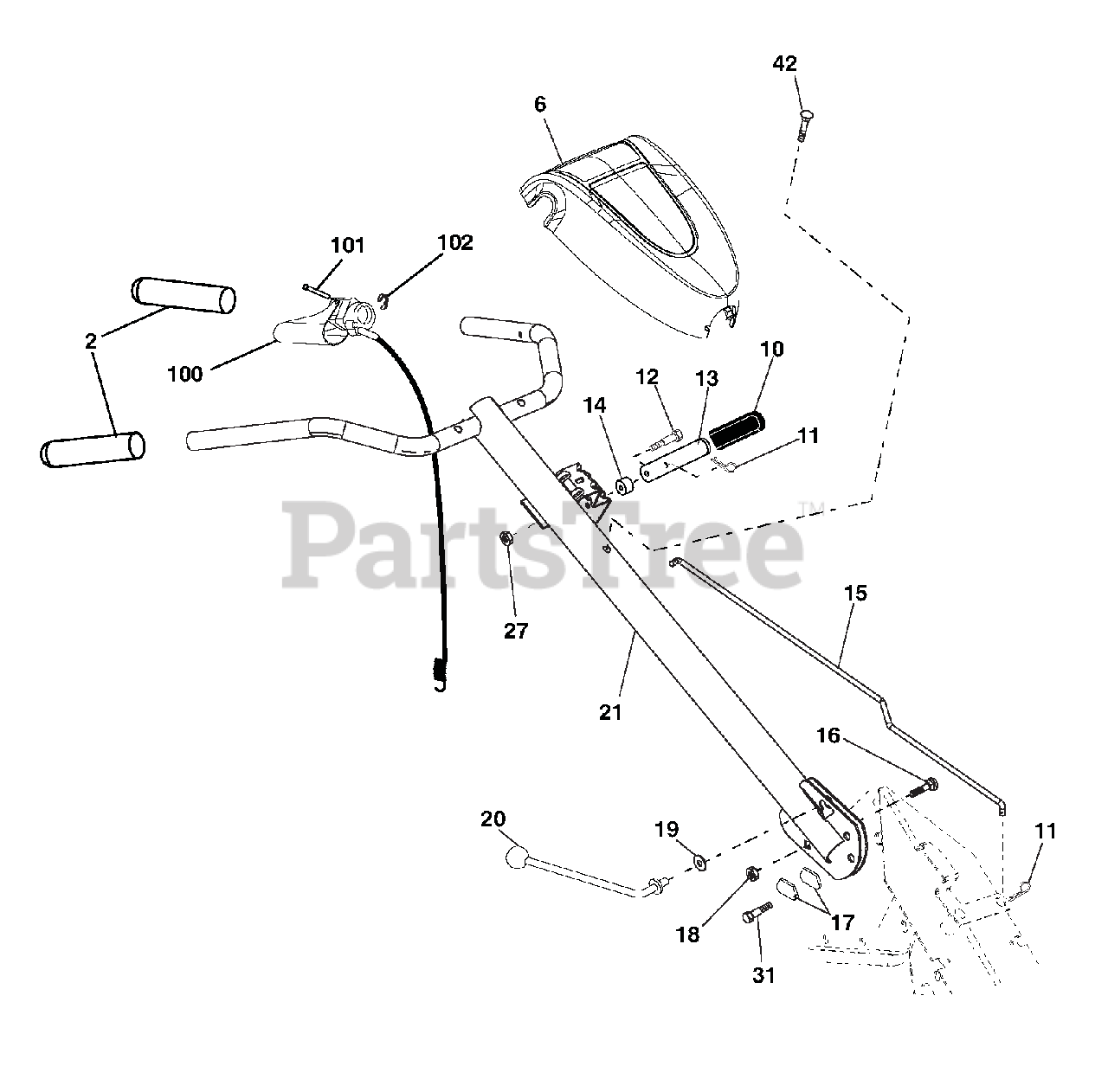

901028 (960960001-02) - Ariens 17" Rear Tine Tiller, Subaru Handle Assembly Parts Diagram

17" Rear Tine Tiller, Subaru

Handle Assembly Parts Diagram

  • Title

2

Ariens 21546171

Grip, Handle

$4.99

$

In Stock, only 1 left!

0

6

Ariens 21546735

Console Control

$34.99

$

In Stock, only 1 left!

0

10

Ariens 21546825

Handle, Grip

$

$

Not available

11

Ariens 21546739

Retainer Spring

$

$

Not available

12

Ariens 21546824

Bolt, Shoulder

$

$

Not available

13

Ariens 21546247

Handle, Shift

$

$

Not available

14

Ariens 21546044

Grommet, Rubber

$

$

Not available

15

Ariens 21546092

Rod, Shift

$30.99

$

Usually ships in 4-12 days

0

16

Ariens 21546764

Bolt 3/8-16 x 1 Gr. 5
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 21546042

Lock, Handle

$7.49

$

In Stock, only 3 left!

0

18

Ariens 21546785

Nut, Hex, Crownlock 3/8-16

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 21546285

Washer 13/32 x 1 x 11 Ga.

$6.49

$

Usually ships in 4-12 days

0

20

Ariens 21546041

Lever, Lock, Handle

$13.99

$

In Stock, only 1 left!

0

21

Ariens 21546306

Handle, Assemble

$125.99

$

Usually ships in 4-12 days

0

27

Ariens 21546788

Nut, Hex Flange 1/4-20 unc
(Superseded to 06533300)

$3.99

$

Usually ships in 4-12 days

0

31

Ariens 21546120

Bolt, Pivot

$7.49

$

In Stock, only 3 left!

0

42

Ariens 21546675

Screw

$

$

Not available

100

Ariens 21546307

Lever

$53.99

$

In Stock, only 1 left!

0

101

Ariens 21546265

Pin, Pivot

$

$

Not available

102

Ariens 21546059

Retaining Ring

$

$

Not available
