901028 (960960001-01) - Ariens 17" Rear Tine Tiller, Subaru Transmission Parts Diagram

17" Rear Tine Tiller, Subaru

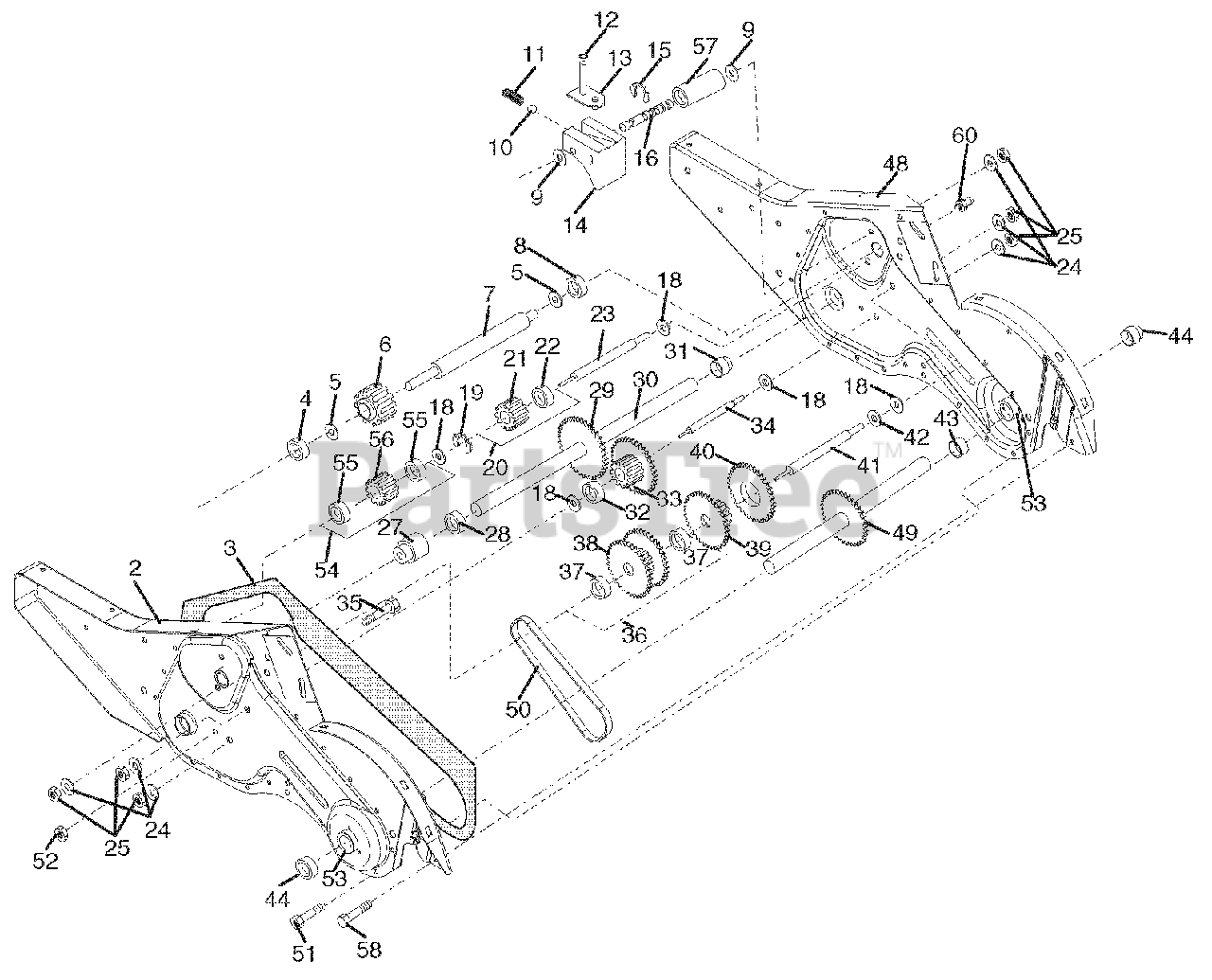

Transmission Parts Diagram

  • Title
1

Ariens 21546259

Transmission Assembly (Include

Note: (Includes Key Nos. 2-52)

$

$

Not available

2

Ariens 21546257

Gearcase, LH w/Bearing (Includ

Note: (Includes Key No. 4)

$

$

Not available

3

Ariens 21546160

Gasket, Gearcase
(Superseded to 21547596)

$24.99

$

In Stock, Qty 9

0

4

Ariens 21546744

Bearing, Needle

$17.99

$

In Stock, Qty 5

0

5

Ariens 21546088

Washer, Thrust 5/8 x 1.10 x 1/

$

$

Not available

6

Ariens 21546150

Pinion, Input

$45.99

$

Usually ships in 4-12 days

0

7

Ariens 21546149

Shaft, Input

$

$

Not available

8

Ariens 21546740

Bearing, Needle

$18.99

$

Usually ships in 4-12 days

0

9

Ariens 21546130

Washer, Seal

$7.49

$

In Stock, only 2 left!

0

10

Ariens 21546792

Ball, Steel

$7.49

$

In Stock, only 1 left!

0

11

Ariens 21546000

Spring, Shift, Fork

$7.49

$

In Stock, only 4 left!

0

12

$6.49

$

Usually ships in 4-12 days

0

13

Ariens 21546105

Arm, Shift

$

$

Not available

14

Ariens 21546826

Fork, Shift

$

$

Not available

15

Ariens 21546057

Ring, Klip

$

$

Not available

16

Ariens 21546148

Shaft, Shift

$

$

Not available

18

$

$

Not available

19

Ariens 21546058

Ring, Klip

$

$

Not available

20

Ariens 21546008

Gear, Assembly, Reverse Idler

Note: (Includes Key Nos. 21 and 22)

$

$

Not available

21

Ariens 21546009

Gear, Reverse Idler

$28.99

$

Usually ships in 4-12 days

0

22

Ariens 21546753

Bearing, Needle

$

$

Not available

23

Ariens 21546155

Shaft, Reverse Idler

$

$

Not available

24

Ariens 21546843

Washer, Lock 7/16

$

$

Not available

25

Ariens 21546842

Nut, Hex 7/16-20
(Superseded to 06516300)

$

$

Not available

27

Ariens 21546108

Bearing, Shaft, Ground Drive L
(Superseded to 21547986)

$

$

Not available

28

Ariens 21546036

Spacer 0.765 x 1.125 x 1.23

$6.49

$

In Stock, only 1 left!

0

29

Ariens 21546011

Chain #35-50 Pitch

$31.99

$

Usually ships in 4-12 days

0

30

Ariens 21546121

Ground Shaft Assembly

$

$

Not available

31

Ariens 21546107

Bearing, Shaft, Ground Drive R

$

$

Not available

32

Ariens 21546035

Spacer 0.70 x 1.00 x 1.150

$6.49

$

Usually ships in 4-12 days

0

33

Ariens 21546010

Sprocket and Gear Assembly

$46.99

$

Usually ships in 4-12 days

0

34

Ariens 21546007

Shaft, Reduction (2nd)

Note: (2nd)

$

$

Not available

35

Ariens 21546006

Screw, Whiz, Lock 5/16-18 x 3-

$

$

Not available

36

Ariens 21546152

Sprocket Assembly w/Bearing (I
(Superseded to 21546153)

Note: (Includes Key Nos. 37 and 38)

$184.99

$

Usually ships in 4-12 days

0

37

Ariens 21546005

Bearing, Needle

$

$

Not available

38

Ariens 21546153

Sprocket, Tine

$184.99

$

Usually ships in 4-12 days

0

39

Ariens 21546154

Gear, Cluster, Red 1st & 2nd

$46.99

$

Usually ships in 4-12 days

0

40

Ariens 21546026

Gear, Reverse

$

$

Not available

41

Ariens 21546151

Shaft, Reduction (1st)

Note: (1st)

$

$

Not available

42

Ariens 21546687

Washer, Thrust

$

$

Not available

43

Ariens 21546031

Spacer 1.01 x 1.75 x 0.760

$51.99

$

Usually ships in 4-12 days

0

44

Ariens 21546133

Seal Asm. Oil

$17.99

$

In Stock, Qty 5

0

48

Ariens 21546258

Gearcase, RH w/Bearing (Includ

Note: (Includes Key No. 8)

$

$

Not available

49

Ariens 21546084

Shaft, Tine

$103.99

$

Usually ships in 4-12 days

0

50

Ariens 21546032

Chain, Roller #50-50 Pitch

$

$

Not available

51

Ariens 21546210

Screw 1/4-20 x 1/2

$7.49

$

Usually ships in 4-12 days

0

52

Ariens 21546775

Nut, Hex 5/16-18

$

$

Not available

53

Ariens 21546167

Bearing Kit, Tine Shaft

$91.99

$

Usually ships in 4-12 days

0

54

Ariens 21546156

Gear, DRT Idler w/Bearing (Inc

Note: (Includes Key No. 55)

$102.99

$

Usually ships in 4-12 days

0

55

Ariens 21546551

Bearing, Needle

$

$

Not available

56

Ariens 21546157

Gear, DRT Idler

$

$

Not available

57

Ariens 21546173

Spacer, Split .52 x .64 x 1.04

$6.99

$

Usually ships in 4-12 days

0

58

Ariens 21546215

Screw 1/4-20 x .875

$

$

Not available

60

Ariens 21546223

Fitting Grease

$

$

Not available

- -

Ariens 21546749

Grease, Plastilube #1

$

$

Not available
