901026 (HT 7018) - Ariens 18" Rear Tine Tiller, 7hp Briggs & Stratton (SN: 000101 & Above) Handlebar And Clutch Handles Parts Diagram

18" Rear Tine Tiller, 7hp Briggs & Stratton

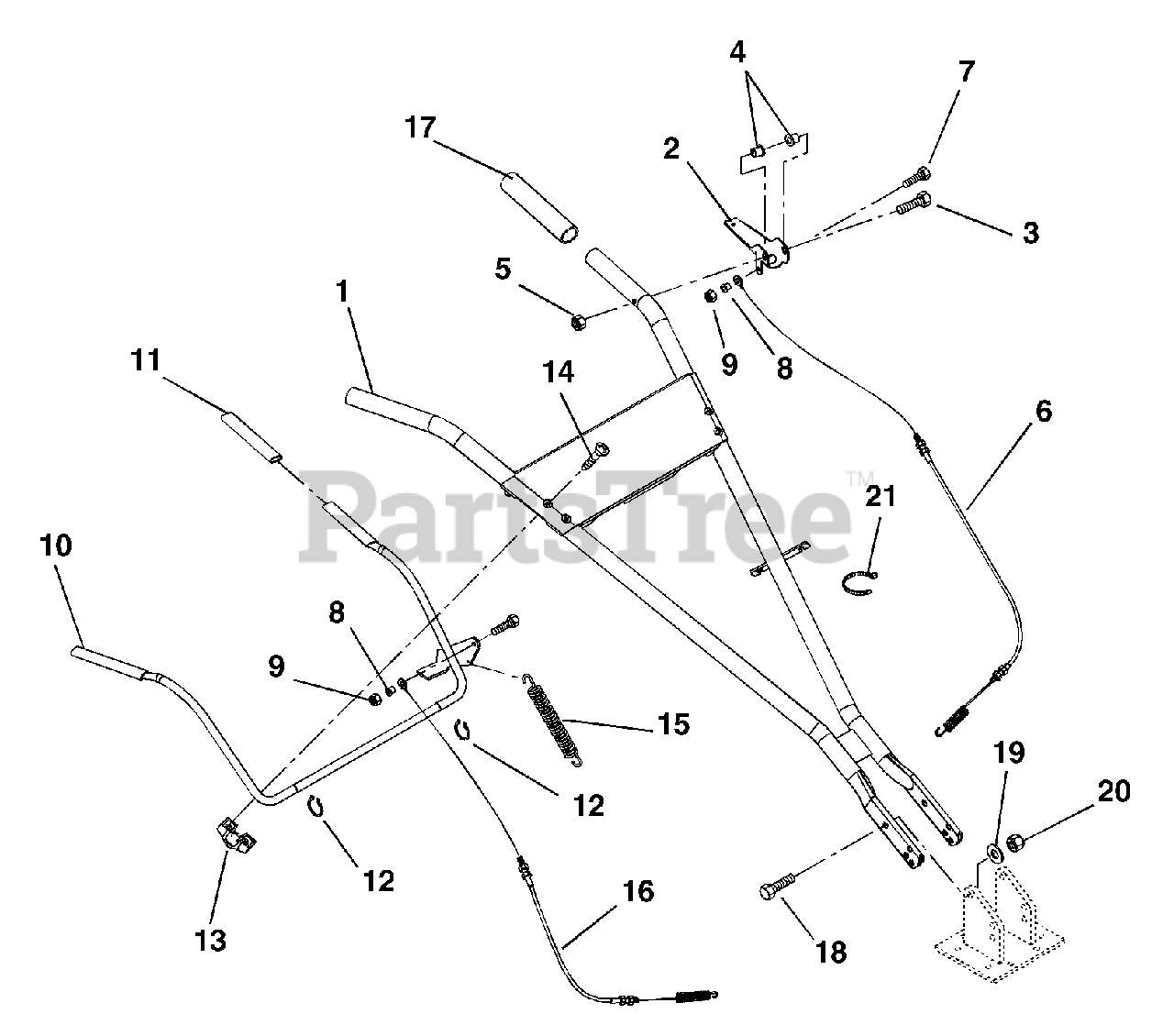

Handlebar And Clutch Handles Parts Diagram

  • Title

1

Ariens 00156100

HANDLEBAR
(Superseded to 00156151)

$

$

Not available

2

Ariens 00156400

HANDLE, REVERSE
(Superseded to 00156451)

$

$

Not available

3

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05516200

BSHG-FLG .325X.465X.333X.685

$22.99

$

Usually ships in 4-12 days

0

5

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06946800

CABLE, REVERSE

$

$

Not available

7

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

8

Ariens 05530200

BSHG-FLG .253X.373X.385X.500

$

$

Not available

9

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 00156500

BAIL, FWD
(Superseded to 00156551)

$

$

Not available

11

Ariens 07529300

GRIP, TILLER - OPC

$

$

Not available

12

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 00156600

PIVOT, BAIL

$

$

Not available

14

Ariens 07411800

SCR-TAP 12-24X1.50 CROVH YZ BT

$

$

Not available

15

Ariens 08325500

SG-TENS .051X.50X5.12 WLD 10.4
(Superseded to 08335400)

$15.99

$

In Stock, Qty 14

0

16

Ariens 06938300

CABLE, FWD. SER. 18"

$

$

Not available

17

Ariens 07507700

HANDLEGRIP

$

$

Not available

18

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07519900

TIE WRAP, BLACK LG 7.31

$3.49

$

Usually ships in 4-12 days

0
