901025 (RT 5018) - Ariens 18" Rear Tine Tiller, 5hp Tecumseh (SN: 000101 & Above) Tine Hood Parts Diagram

18" Rear Tine Tiller, 5hp Tecumseh

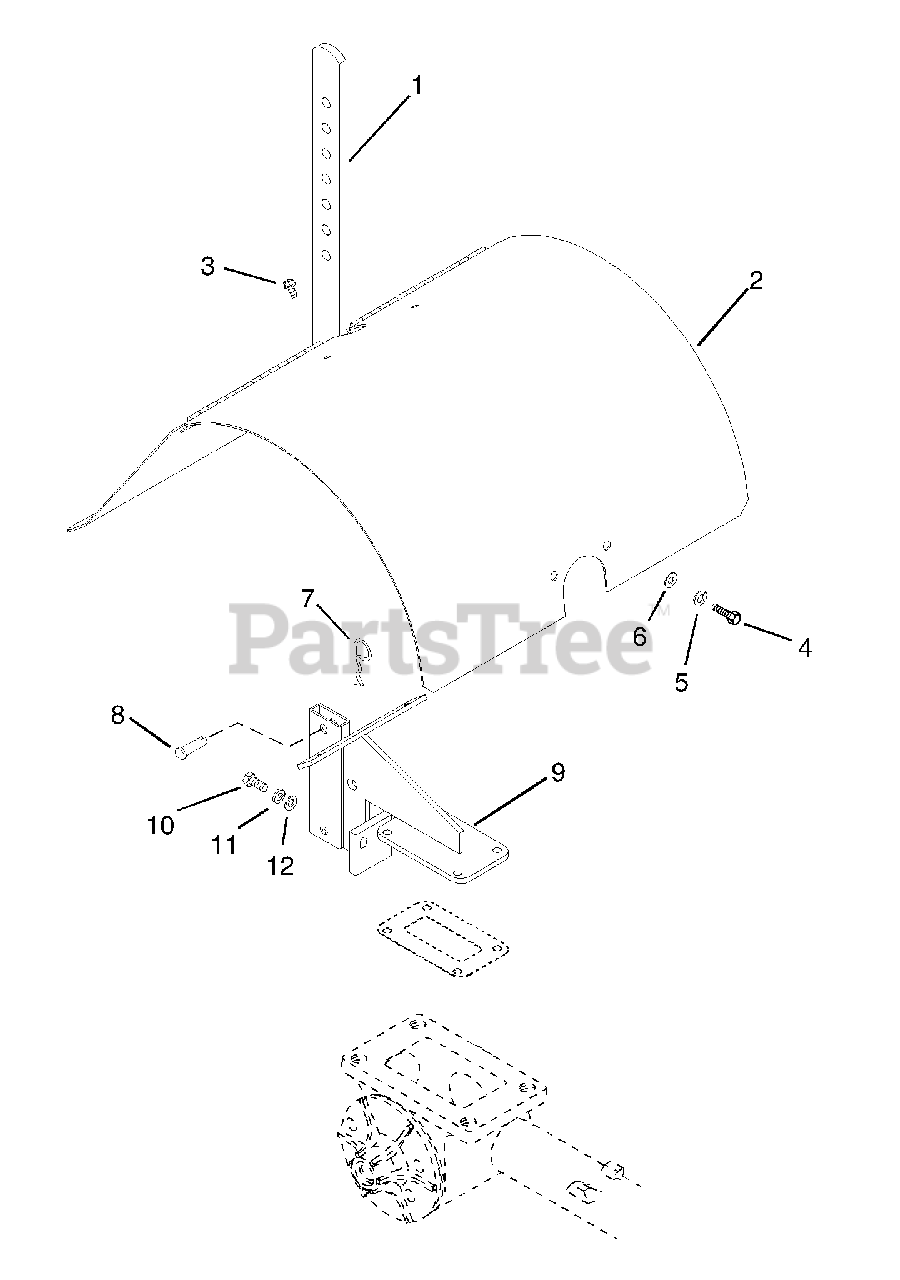

Tine Hood Parts Diagram

  • Title
1

Ariens 00229800

DEPTH STICK
(Superseded to 00229851)

$54.99

$

Usually ships in 4-12 days

0

2

Ariens 50103800

TINE HOOD W/ DECALS

$

$

Not available

3

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

5

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

6

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 2 left!

0

8

Ariens 06814100

PIN-CLEV .38 X 1.06

$

$

Not available

9

Ariens 00102559

DEPTH STICK HOLDER
(Superseded to 00102500)

$

$

Not available

10

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
