901025 (RT 5018) - Ariens 18" Rear Tine Tiller, 5hp Tecumseh (SN: 000101 & Above) Engine, Drive, And Wheels Parts Diagram

18" Rear Tine Tiller, 5hp Tecumseh

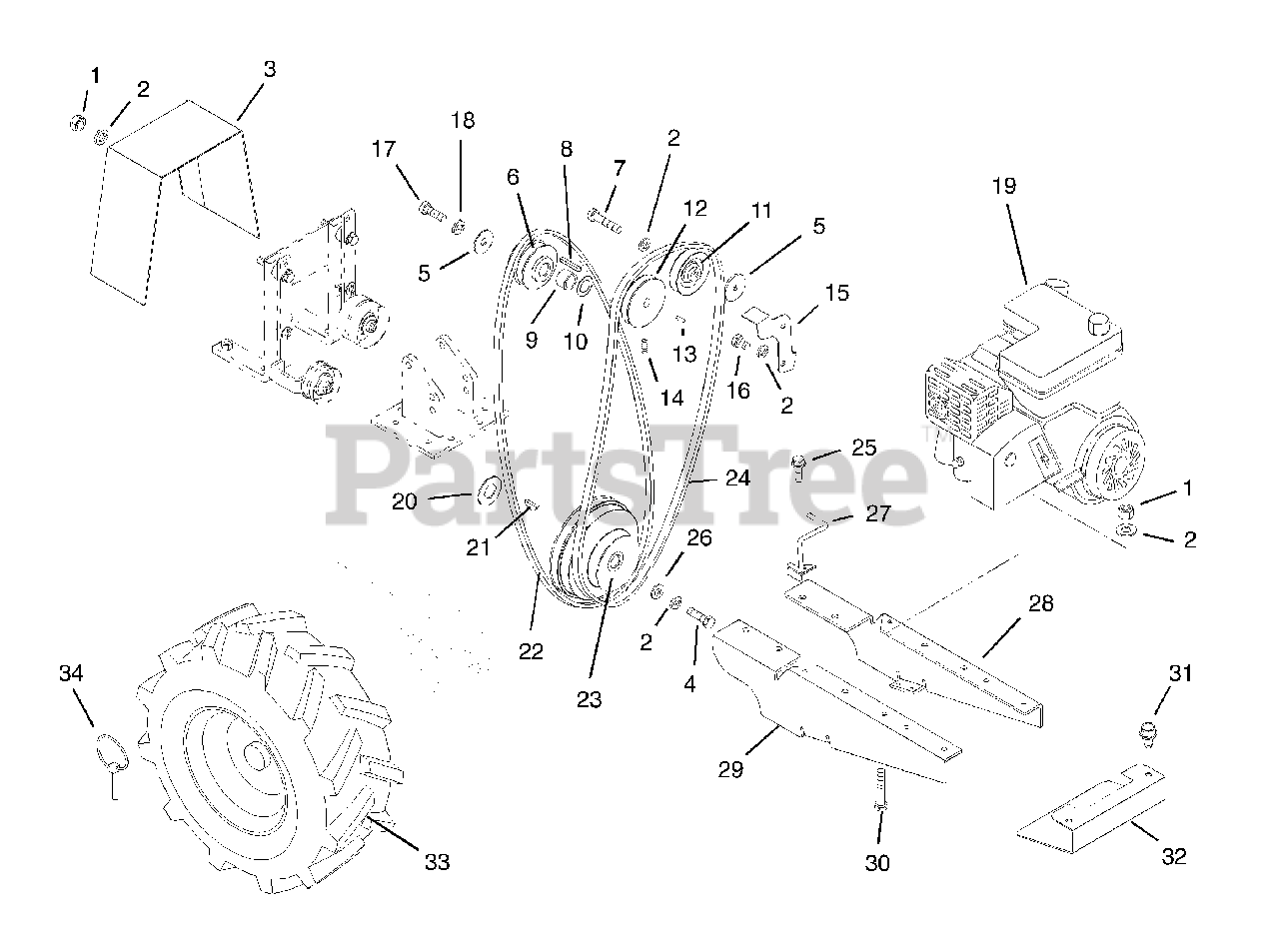

Engine, Drive, And Wheels Parts Diagram

  • Title

1

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

2

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 50104800

BELT GUARD W/DECALS (OPC)

$

$

Not available

4

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 00146500

SHEAVE, FORWARD

$

$

Not available

7

Ariens 05963500

BLT-HEX .31-24X1.50 GR5 YWZC

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 06602300

KEY-SQ .188X1.5X.187 SAE 8630
(Superseded to 06609600)

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 00154400

SPACER .765X.875X.870

$

$

Not available

10

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

11

Ariens 07320300

IDLER-V 2.625X.312

$

$

Not available

12

Ariens 00157200

SHEAVE REVERSE OHH50

$

$

Not available

13

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

14

Ariens 06005400

SCR-SET .25-20X.25 SKHCUPDL

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 00142000

BELT FINGER

$

$

Not available

16

Ariens 05962700

SCR-CAP .31-24X.50HH GR5 YWZC

$

$

Not available

17

Ariens 05963600

BLT-HEX .31-24X1.00 GR5 YWZC

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 08259200

ENGINE, B&S INTEK 20HP V TWIN

$

$

Not available

20

Ariens 06415100

WSHR-FL-STL .699X1.375X.059

$

$

Not available

21

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 11

0

22

Ariens 07224100

V-BELT, 4L-WRAPPED

$

$

Not available

23

Ariens 00141800

SHEAVE - TRANSMISSION

$

$

Not available

24

Ariens 07233000

V-BELT, 3L-WRAPPED

$29.99

$

Usually ships in 4-12 days

0

25

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

26

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

27

Ariens 00157300

FINGER, BELT SER 18"
(Superseded to 00157351)

$

$

Not available

28

Ariens 00138759

L H ENGINE MTG BRKT

$

$

Not available

29

Ariens 00135859

R H ENGINE MTG BRKT

$14.99

$

Usually ships in 4-12 days

0

30

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

31

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 00149059

COVER, ENGINE BRKT

$5.99

$

Usually ships in 4-12 days

0

33

Ariens 07134900

T/WHL ASSY RH

$

$

Not available

Ariens 07135000

T/WHL ASSY LH

$

$

Not available

34

Ariens 07015800

PIN-LOK .31X2.00

$6.99

$

In Stock, only 2 left!

0
