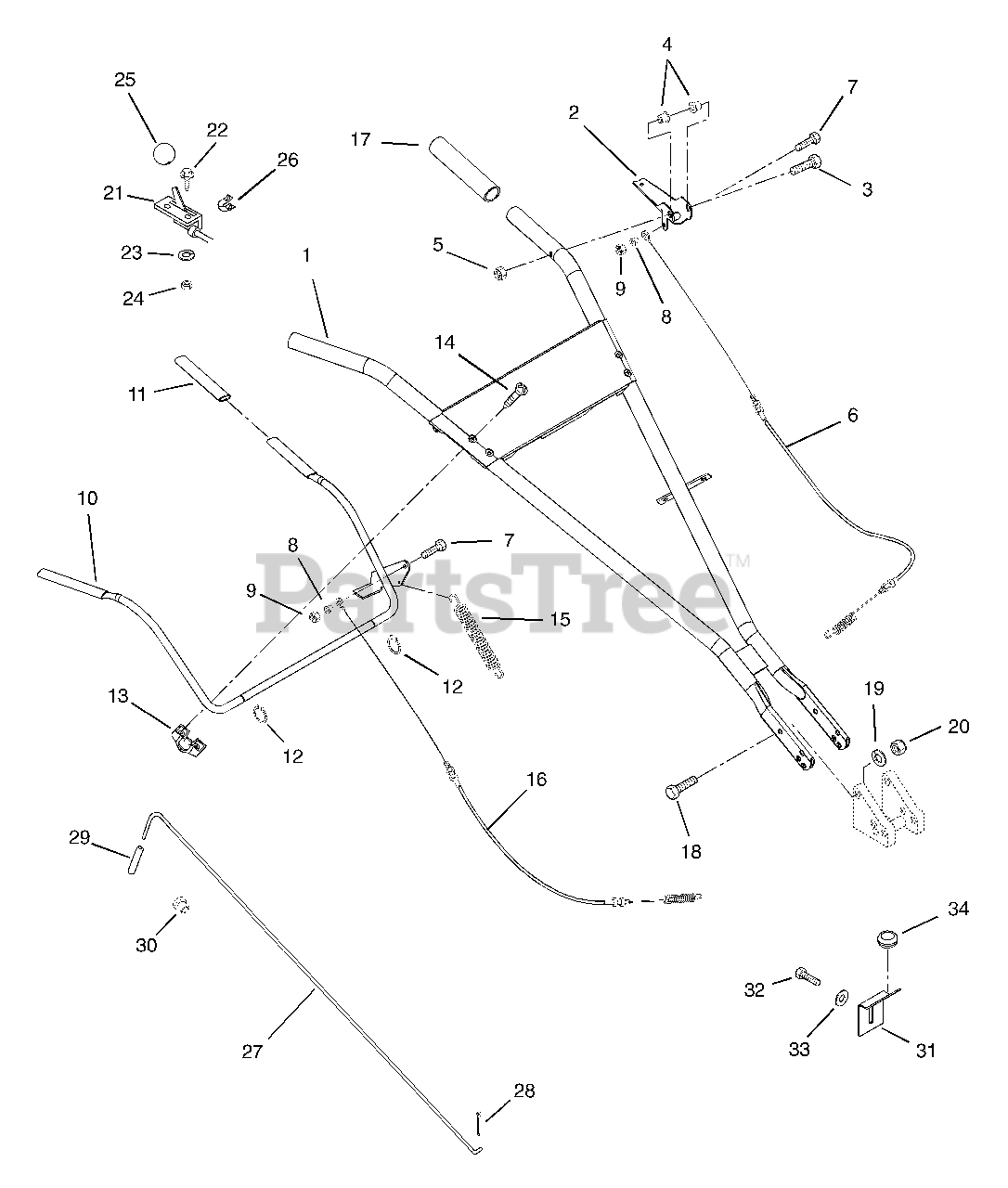

901024 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) Handlebar And Upper Controls Parts Diagram

20" Rear Tine Tiller, 8hp Briggs & Stratton

Handlebar And Upper Controls Parts Diagram

  • Title

1

Ariens 50105800

HANDLEBAR WITH DECAL - RT8020

$

$

Not available

2

Ariens 00156400

HANDLE, REVERSE
(Superseded to 00156451)

$

$

Not available

3

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05516200

BSHG-FLG .325X.465X.333X.685

$22.99

$

Usually ships in 4-12 days

0

5

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06938200

CABLE, REV 8HP

$

$

Not available

7

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

8

Ariens 05530200

BSHG-FLG .253X.373X.385X.500

$

$

Not available

9

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 00156500

BAIL, FWD
(Superseded to 00156551)

$

$

Not available

11

Ariens 07529300

GRIP, TILLER - OPC

$

$

Not available

12

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 00156600

PIVOT, BAIL

$

$

Not available

14

Ariens 07411800

SCR-TAP 12-24X1.50 CROVH YZ BT

$

$

Not available

15

Ariens 08335400

SG-TENS .051X.50X4.87

$15.99

$

In Stock, Qty 11

0

16

Ariens 06938100

CABLE, FWD

$57.99

$

Usually ships in 4-12 days

0

17

Ariens 07507700

HANDLEGRIP

$

$

Not available

18

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06938700

CONTROL, THROTTLE (BLK)

$

$

Not available

22

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06308100

@WSHR-LK #10X.047 REG YWZC

$1.49

$

Usually ships in 4-12 days

0

24

Ariens 06536600

@NUT-HEX 10-24 YWZC

$0.99

$

In Stock, Qty 5

0

25

Ariens 07510100

KNOB, CONTROL-THROTTLE

$

$

Not available

26

Ariens 07510000

CABLE RETAINER

$

$

Not available

27

Ariens 00157600

ROD, POSITION

$20.99

$

Usually ships in 4-12 days

0

28

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

29

Ariens 07530200

GRIP, BLACK

$1.99

$

Usually ships in 4-12 days

0

30

Ariens 07511200

SNAP BUSHING

$1.49

$

In Stock, only 3 left!

0

31

Ariens 00156800

PIVOT FEED
(Superseded to 00156851)

$5.53

$

Usually ships in 4-12 days

0

32

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 07530600

GRMT .75X1.06X1.38

$2.49

$

Usually ships in 4-12 days

0
