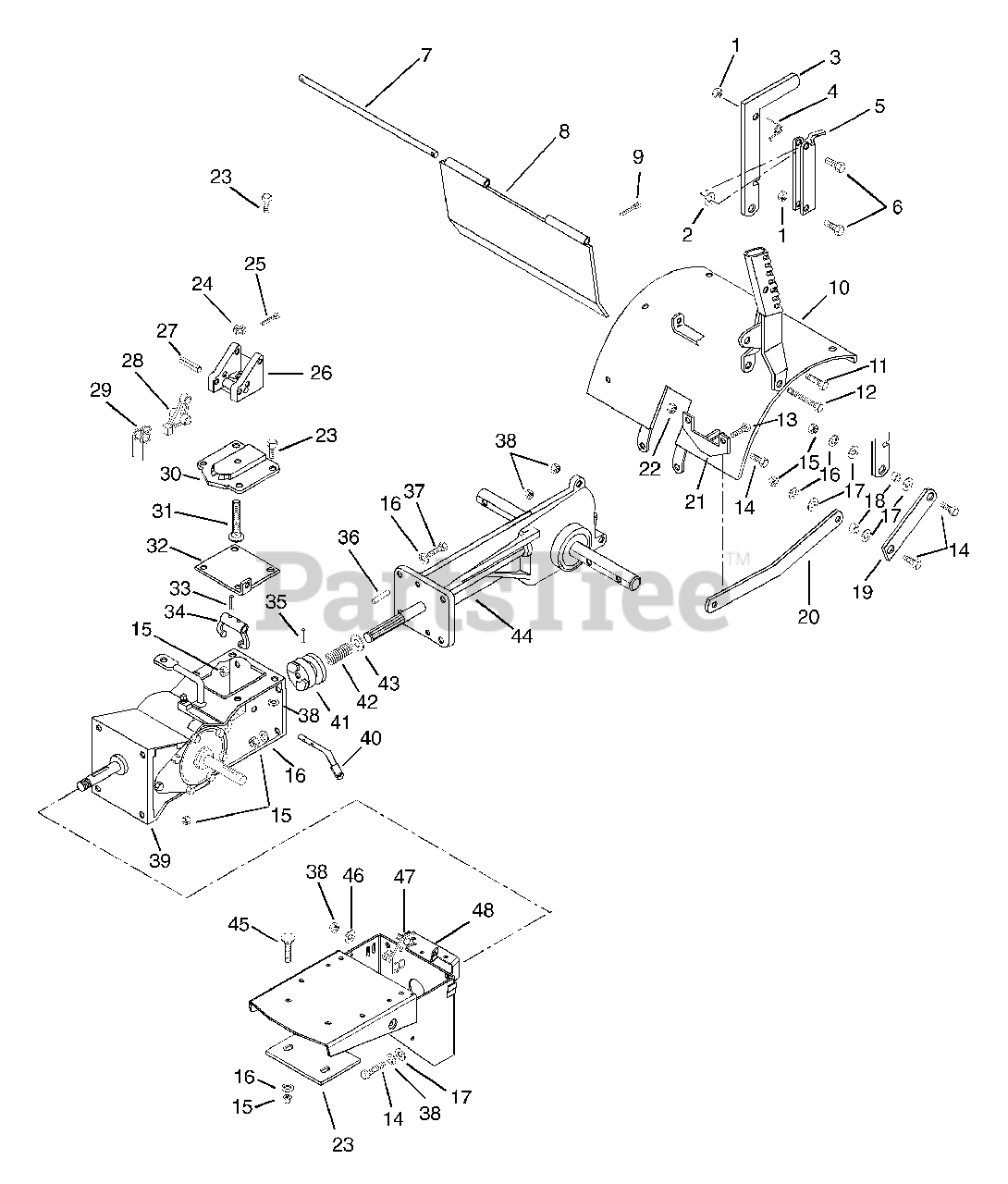

901024 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Briggs & Stratton (SN: 000101 & Above) Frame And Transmission Parts Diagram

20" Rear Tine Tiller, 8hp Briggs & Stratton

Frame And Transmission Parts Diagram

  • Title
1

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 00142859

HANDLE WELDMENT

$

$

Not available

4

Ariens 08321800

SG-TORS .050X.25X2.33

$

$

Not available

5

Ariens 00142559

TRIGGER

$

$

Not available

6

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

7

Ariens 00103700

TAILBOARD PIN

$

$

Not available

8

Ariens 00158959

TAILBOARD WELDMENT

$155.99

$

Usually ships in 4-12 days

0

9

Ariens 06707400

@PIN-CTR .09X.50 EXTPRSQCT YWZ

$0.99

$

Usually ships in 4-12 days

0

10

Ariens 50102200

TINE HOOD W/DECAL

$

$

Not available

11

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

12

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$

$

Not available

13

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

14

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 00144100

SPACER BUSHING .63 X .38 X .27

$18.99

$

Usually ships in 4-12 days

0

19

Ariens 00146000

CHISEL POINT
(Superseded to 00146051)

$31.99

$

Usually ships in 4-12 days

0

20

Ariens 00146100

DRAG LINK
(Superseded to 00146151)

$51.99

$

Usually ships in 4-12 days

0

21

Ariens 00142700

PIVOT BRACKET
(Superseded to 00142751)

$6.65

$

Usually ships in 4-12 days

0

22

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 00129559

WEIGHT, WAFER

$

$

Not available

24

Ariens 06505000

NUT-SL .50-13

$3.49

$

In Stock, Qty 20+

0

25

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

26

Ariens 00158800

BRACKET, HANDLEBAR

$

$

Not available

27

Ariens 05801300

PIN-ROLL .313X2.00

$2.99

$

Usually ships in 4-12 days

0

28

$

$

Not available

29

Ariens 08300300

SG-TORS .109X.88X2.25

$34.99

$

Usually ships in 4-12 days

0

30

Ariens 00129000

PIVOT CAP

$

$

Not available

31

Ariens 00107700

SWIVEL BOLT

$77.99

$

Usually ships in 4-12 days

0

32

Ariens 00136200

PIVOT BRACKET

$

$

Not available

33

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

34

Ariens 00100800

CLUTCH FORK

$56.99

$

Usually ships in 4-12 days

0

35

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

36

Ariens 05802000

PIN-GRV .375X1.00 TP C

$

$

Not available

37

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 50103100

TRANSMISSION GEARCASE ASSY

$

$

Not available

40

Ariens 00102300

TINE ENGAGING FORK SHAFT

$

$

Not available

41

Ariens 00103900

TILLER JAW CLUTCH

$147.99

$

Usually ships in 4-12 days

0

42

Ariens 08300500

SG-COMP .080X.97X2.18 WLD14

$14.99

$

In Stock, only 1 left!

0

43

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

$3.99

$

In Stock, only 1 left!

0

44

Ariens 50102900

TILLER GEAR CASE - C.I.

$

$

Not available

45

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

46

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 00133200

BELT FINGER BRACKET

$5.99

$

Usually ships in 4-12 days

0

48

Ariens 00157159

FRAME 8HP

$

$

Not available
