901021 (RT 5018 B) - Ariens 18" Rear Tine Tiller, 5hp Briggs & Stratton (SN: 000101 - 001099) Tine Hood Parts Diagram

18" Rear Tine Tiller, 5hp Briggs & Stratton

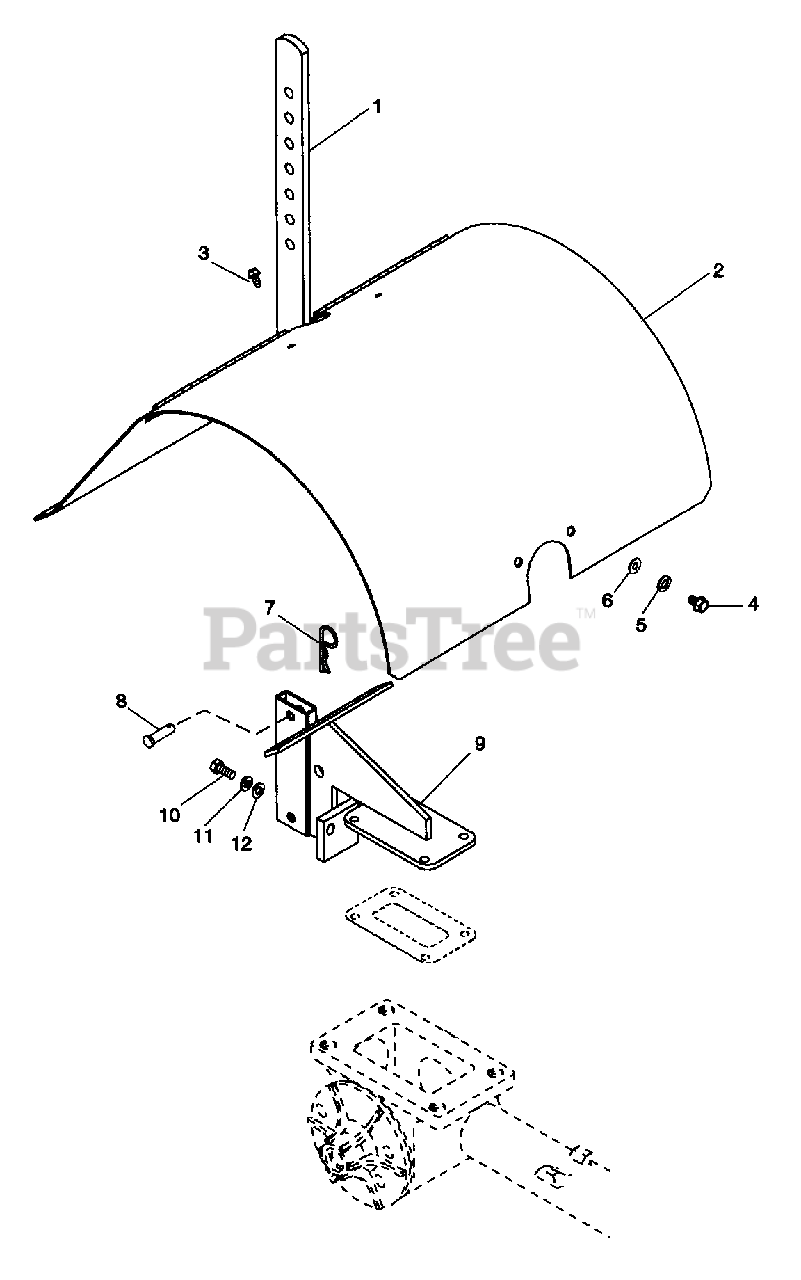

Tine Hood Parts Diagram

  • Title
1

Ariens 00229859

DEPTH STICK
(Superseded to 00229851)

$54.99

$

Usually ships in 4-12 days

0

2

Ariens 50103800

TINE HOOD W/ DECALS

$

$

Not available

3

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05934400

BLT-HEX .31-18X.50
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

5

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

6

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

$2.99

$

In Stock, only 2 left!

0

8

Ariens 06809200

PIN-CLEV .372X1.25
(Superseded to 06814900)

$3.99

$

In Stock, only 2 left!

0

9

Ariens 00102559

DEPTH STICK HOLDER
(Superseded to 00102500)

$

$

Not available

10

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0
