901021 (RT 5018 B) - Ariens 18" Rear Tine Tiller, 5hp Briggs & Stratton (SN: 000101 - 001099) Shifting Assembly Parts Diagram

18" Rear Tine Tiller, 5hp Briggs & Stratton

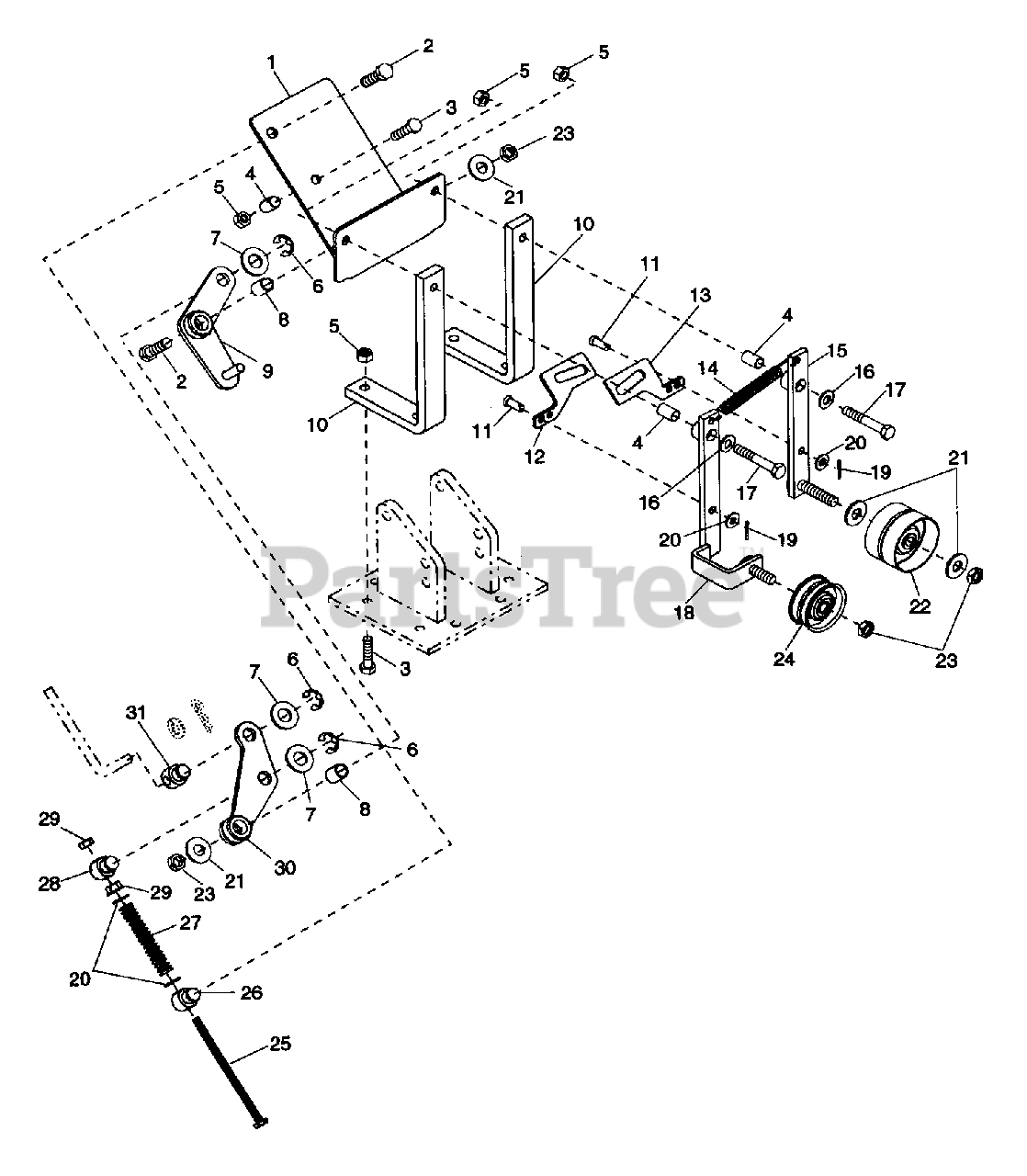

Shifting Assembly Parts Diagram

  • Title

1

Ariens 00147159

SHIFTING PLATE
(Superseded to 00147100)

$

$

Not available

2

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 11

0

4

Ariens 00147000

SLEEVE BUSHING

$

$

Not available

5

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 00147700

BSHG-SLV .406 X .545 X .68

$

$

Not available

9

Ariens 00147200

BELLCRANK WELDMENT

$

$

Not available

10

Ariens 00141959

SHIFT MTG BAR

$

$

Not available

11

Ariens 00147600

CLEVIS PIN

$

$

Not available

12

Ariens 00147500

SHIFT LINK - REVERSE

$

$

Not available

13

Ariens 00147400

SHIFT LINK - FORWARD

$

$

Not available

14

Ariens 08327200

SG-TENS .067X.437X3.25 WLD 4.5

$

$

Not available

15

Ariens 00146959

IDLER ARM - FORWARD
(Superseded to 00146951)

$

$

Not available

16

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 05905700

BLT-HEX .31-18X2.00 PL GR2
(Superseded to 05957200)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 00146859

IDLER ARM - REVERSE
(Superseded to 00146851)

$

$

Not available

19

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07310800

IDLER-FLAT 2.25 X .38

$34.99

$

In Stock, only 1 left!

0

23

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 07320400

IDLER-FLAT 2.000X.375

$

$

Not available

25

Ariens 05946300

BLT-HEX .25-20 X 4.5 PLATED

$

$

Not available

26

Ariens 00147800

PIVOT - BELLCRANK

$

$

Not available

27

Ariens 08327100

SG-COMP .080X.52X2.90

$9.49

$

Usually ships in 4-12 days

0

28

Ariens 00147900

THREADED PIVOT - RODCRANK

$

$

Not available

29

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

30

Ariens 00147300

RODCRANK WELDMENT

$

$

Not available

31

Ariens 00148000

PIVOT - SHIFT LEVER ROD

$

$

Not available
