901021 (RT 5018 B) - Ariens 18" Rear Tine Tiller, 5hp Briggs & Stratton (SN: 000101 - 001099) Gear And Shafts Parts Diagram

18" Rear Tine Tiller, 5hp Briggs & Stratton

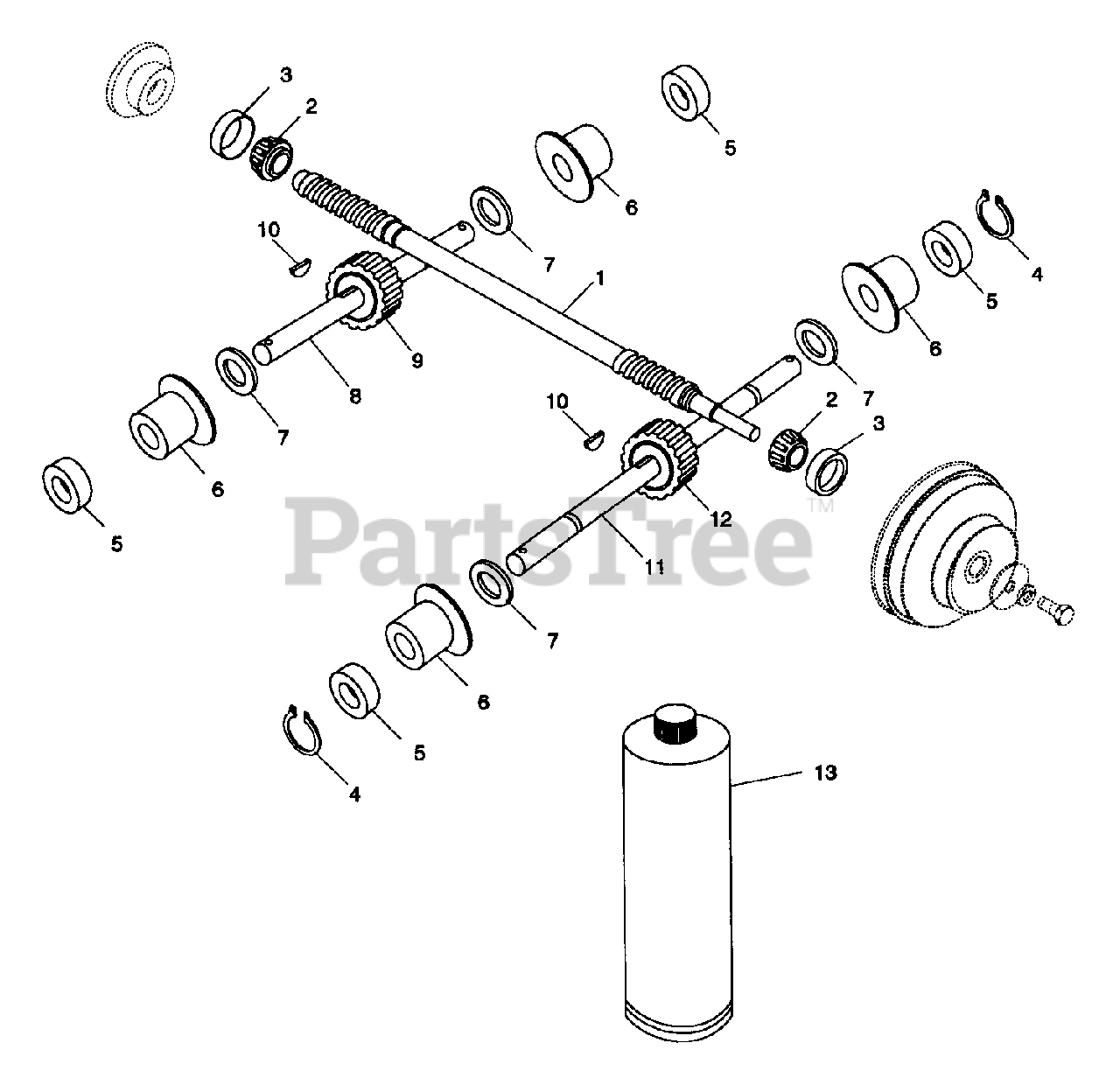

Gear And Shafts Parts Diagram

  • Title

1

Ariens 00152600

WORM SHAFT

$

$

Not available

2

Ariens 05404500

BRG-CONE .750X.61

$23.99

$

In Stock, Qty 11

0

3

Ariens 05404400

BRG-CUP 1.781X.475

$10.99

$

In Stock, Qty 20+

0

4

Ariens 05716800

RG-RTNG .822X1.500X.050 TYP E

$3.49

$

In Stock, only 3 left!

0

5

Ariens 05606100

SEAL 1.000X1.312X.150

$11.99

$

In Stock, Qty 20+

0

6

Ariens 05520900

BSHG-FLG 1.000X1.125X1.875

$18.99

$

In Stock, Qty 6

0

7

Ariens 06423500

WSHR-HDND-THRST 1.00X1.55X.030
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

8

Ariens 00151700

TINE SHAFT

$

$

Not available

9

Ariens 00151400

WORM GEAR

$193.99

$

Usually ships in 4-12 days

0

10

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

11

Ariens 00151800

WHEEL SHAFT

$102.99

$

Usually ships in 4-12 days

0

12

Ariens 00151200

WORM GEAR 61

$

$

Not available

13

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$18.99

$

In Stock, Qty 20+

0
