901020 (RT 5018 B) - Ariens 18" Rear Tine Tiller, 5hp Briggs & Stratton (SN: 000101 & Above) Gearcase Parts Diagram

18" Rear Tine Tiller, 5hp Briggs & Stratton

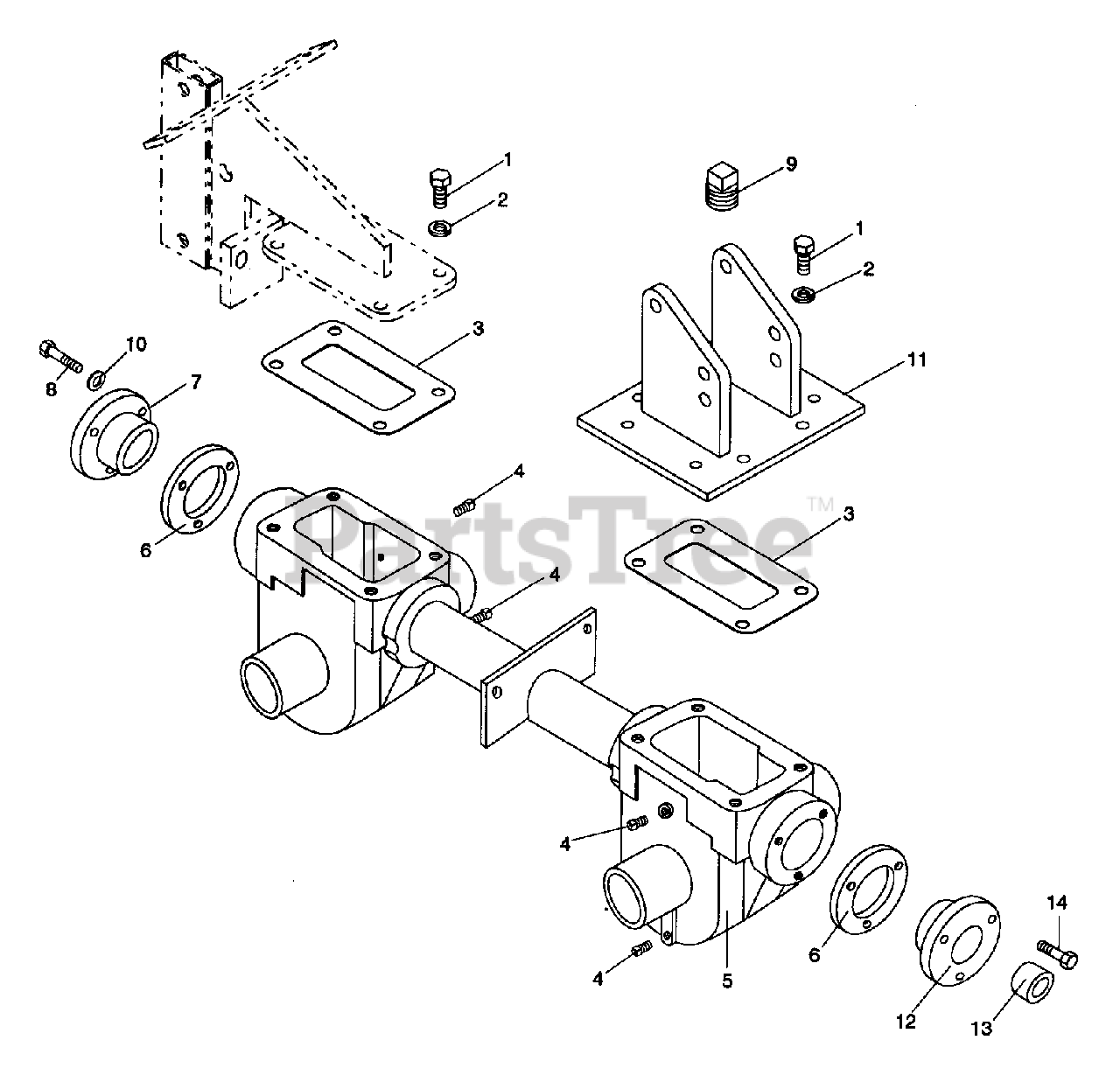

Gearcase Parts Diagram

  • Title

1

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 00148900

GASKET

$9.99

$

Usually ships in 4-12 days

0

4

Ariens 00150900

PIPE PLUG, 1/4 NPT

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 00150600

CASE - TRANSMISSION

$

$

Not available

6

Ariens 00151000

GASKET, BEARING CAP

$

$

Not available

7

Ariens 00150700

CAP - REAR BEARING

$

$

Not available

8

Ariens 05941100

BLT-HEX .25-20X1 HEX SKT HD

$

$

Not available

9

Ariens 00113700

PIPE PLUG

$

$

Not available

10

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

11

Ariens 00130400

HANDLEBAR MOUNT

$

$

Not available

12

Ariens 00150800

CAP - FRONT BEARING

$

$

Not available

13

Ariens 00151100

SEAL TILLER HSG
(Superseded to 05613800)

$12.99

$

In Stock, Qty 6

0

14

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0
