901020 (RT 5018 B) - Ariens 18" Rear Tine Tiller, 5hp Briggs & Stratton (SN: 000101 & Above) Gear And Shafts Parts Diagram

18" Rear Tine Tiller, 5hp Briggs & Stratton

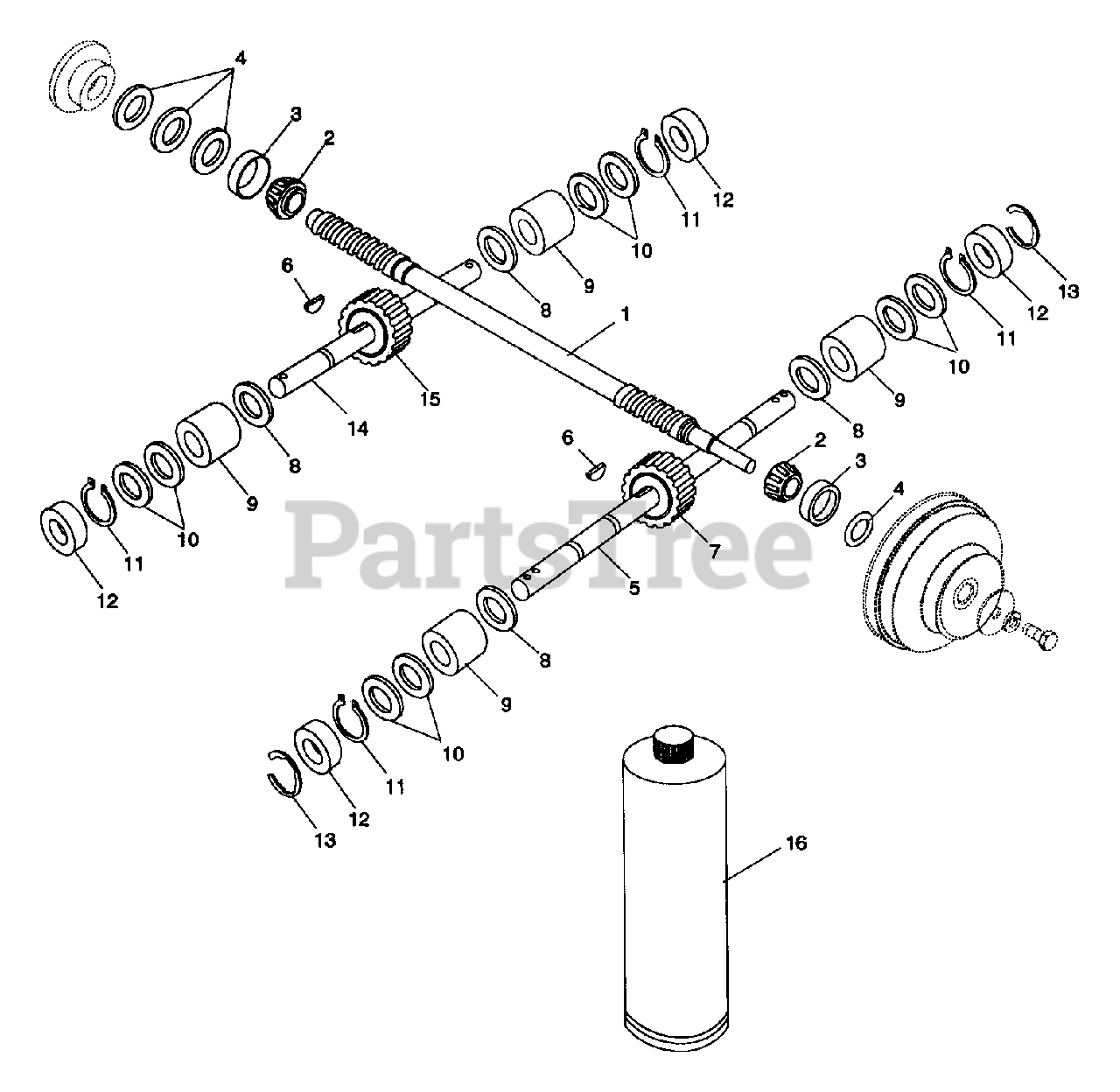

Gear And Shafts Parts Diagram

  • Title

1

Ariens 00149100

MAIN DRIVE SHAFT

$

$

Not available

2

Ariens 05404500

BRG-CONE .750X.61

$23.99

$

In Stock, Qty 9

0

3

Ariens 05404400

BRG-CUP 1.781X.475

$10.99

$

In Stock, Qty 20+

0

4

Ariens 00149200

SHIM SET, REAR CAP

$

$

Not available

5

Ariens 00149300

WHEEL SHAFT

$

$

Not available

6

Ariens 06606300

KEY-WDRF .25X1.00X.438 SAE15

$

$

Not available

7

Ariens 00149400

WORMGEAR, WHEEL SHAFT

Note: (Wheel Shaft)

$

$

Not available

8

Ariens 00149500

SPACER (.062)

Note: (.062)

$22.99

$

Usually ships in 4-12 days

0

9

Ariens 00149600

BUSHING

$

$

Not available

10

Ariens 00149700

SHIM (.062)

$

$

Not available

10

Ariens 00149800

SHIM (.030)

$

$

Not available

10

Ariens 00149900

SHIM (.015)

$

$

Not available

10

Ariens 00150000

SHIM (.010)

$

$

Not available

11

Ariens 05716800

RG-RTNG .822X1.500X.050 TYP E

$3.49

$

In Stock, only 3 left!

0

12

Ariens 00150500

OIL SEAL, TILLER SHAFT
(Superseded to 05617300)

$15.99

$

Usually ships in 4-12 days

0

13

Ariens 00150400

RETAINER, INTERNAL SNAP RING

$

$

Not available

14

Ariens 00150200

TILLER SHAFT

$

$

Not available

15

Ariens 00150300

WORMGEAR, TILLER SHAFT

Note: (Tiller Shaft)

$

$

Not available

16

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$18.99

$

In Stock, Qty 20+

0
