901015 (SRT 5020) - Ariens 20" Rear Tine Tiller, 5hp Tecumseh (SN: 000101 - 005000) Transmission Assembly Parts Diagram

20" Rear Tine Tiller, 5hp Tecumseh

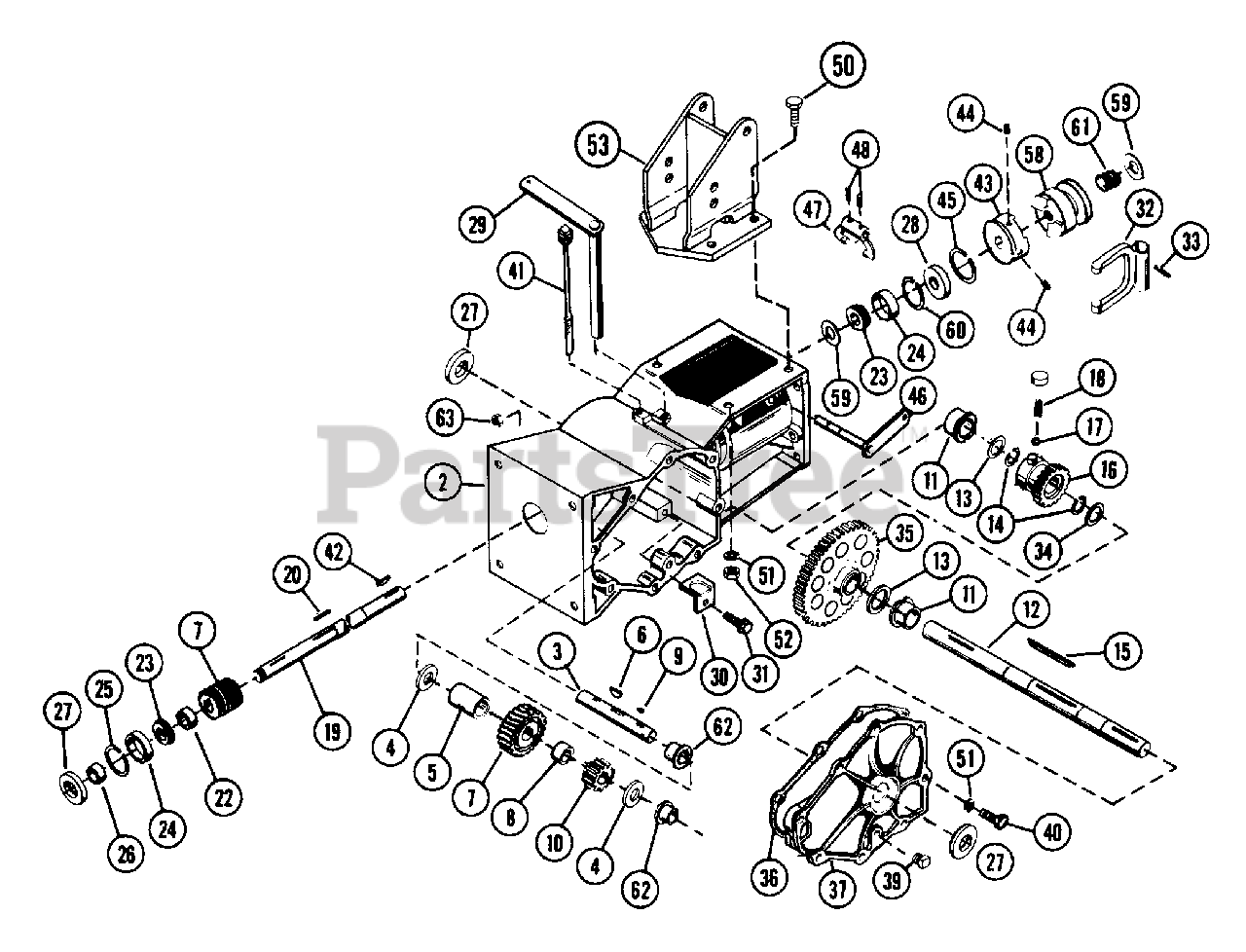

Transmission Assembly Parts Diagram

  • Title
1

Ariens 60106600

TRANSMISSION GEARCASE ASSEMBLY
(Superseded to 50103200)

$

$

Not available

2

Ariens 00127700

TRANSMISSION HOUSING

$

$

Not available

3

Ariens 00127800

PINION SHAFT
(Superseded to 00131100)

$

$

Not available

4

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

5

Ariens 00128000

SPACER 1.13 X .75 X 1.64

$

$

Not available

6

Ariens 06603700

KEY-WDRF .25X.687X.375
(Superseded to 06600800)

$3.99

$

In Stock, only 2 left!

0

7

Ariens 50101100

WORM AND WORM GEAR

$253.99

$

Usually ships in 4-12 days

0

8

Ariens 00128100

SPACER 1.25 X .75 X .75

$34.99

$

In Stock, only 1 left!

0

9

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

10

Ariens 00120500

LOW PINION

$68.99

$

Usually ships in 4-12 days

0

11

Ariens 05512400

BSHG-FLG 1.000X1.25X1.000X1.50

$11.99

$

In Stock, only 1 left!

0

12

Ariens 00128200

AXLE SHAFT

$

$

Not available

13

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

14

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

15

Ariens 06601600

KEY-FTHR .25X2.75X.25 SAE1035

$11.99

$

Usually ships in 4-12 days

0

16

Ariens 00121900

CLUTCH HUB

$

$

Not available

17

Ariens 00113900

STEEL BALL

$

$

Not available

18

Ariens 08315000

SG-COMP .047X.31X.593 WLD11

$20.99

$

Usually ships in 4-12 days

0

19

Ariens 00131700

WORM SHAFT

$

$

Not available

20

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

22

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, only 2 left!

0

23

Ariens 05404500

BRG-CONE .750X.61

$23.99

$

In Stock, Qty 11

0

24

Ariens 05404400

BRG-CUP 1.781X.475

$10.99

$

In Stock, Qty 20+

0

25

Ariens 60298200

SNAP RING KIT
(Superseded to 05702100)

$5.99

$

In Stock, only 1 left!

0

26

Ariens 00108100

SPACER BUSHING .99 X .75 X .50

$51.99

$

Usually ships in 4-12 days

0

27

Ariens 05605200

SEAL 1.000X1.785X.250

$16.99

$

In Stock, Qty 20+

0

28

Ariens 05605000

SEAL .750X1.781X.250

$21.99

$

In Stock, only 1 left!

0

29

Ariens 00110900

HIGH-LOW SHIFT LEVER

$

$

Not available

30

Ariens 00128500

RETAINER CLIP

$38.99

$

Usually ships in 4-12 days

0

31

Ariens 07002300

SCR-FLG-WHZ 10-24X.75 PL

$

$

Not available

32

Ariens 00109300

SHIFT YOKE

$44.99

$

In Stock, only 1 left!

0

33

Ariens 05800600

PIN-ROLL .250X1.00

$1.99

$

Usually ships in 4-12 days

0

34

$

$

Not available

35

Ariens 00120600

LOW GEAR

$

$

Not available

36

$8.99

$

Usually ships in 4-12 days

0

37

Ariens 00128400

TRANSMISSION COVER

$

$

Not available

39

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

40

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 00101300

DIP STICK

$21.99

$

In Stock, only 1 left!

0

42

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

$8.49

$

In Stock, Qty 7

0

43

Ariens 00103800

TILLER DRIVING JAW

$130.99

$

Usually ships in 4-12 days

0

44

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

45

Ariens 05704900

RG-RTNG-EXT .750X.078
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

46

Ariens 00102300

TINE ENGAGING FORK SHAFT

$

$

Not available

47

Ariens 00100800

CLUTCH FORK

$56.99

$

Usually ships in 4-12 days

0

48

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

50

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

52

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

53

Ariens 00140600

HANDLEBAR MOUNT

$

$

Not available

58

Ariens 00103900

TILLER JAW CLUTCH

$147.99

$

Usually ships in 4-12 days

0

59

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

$3.99

$

In Stock, only 1 left!

0

60

Ariens 05707700

RG-RTNG-INT 1.781X.052
(Superseded to 05702100)

$5.99

$

In Stock, only 1 left!

0

61

Ariens 08300500

SG-COMP .080X.97X2.18 WLD14

$14.99

$

In Stock, only 1 left!

0

62

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$11.99

$

In Stock, Qty 18

0

63

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0
