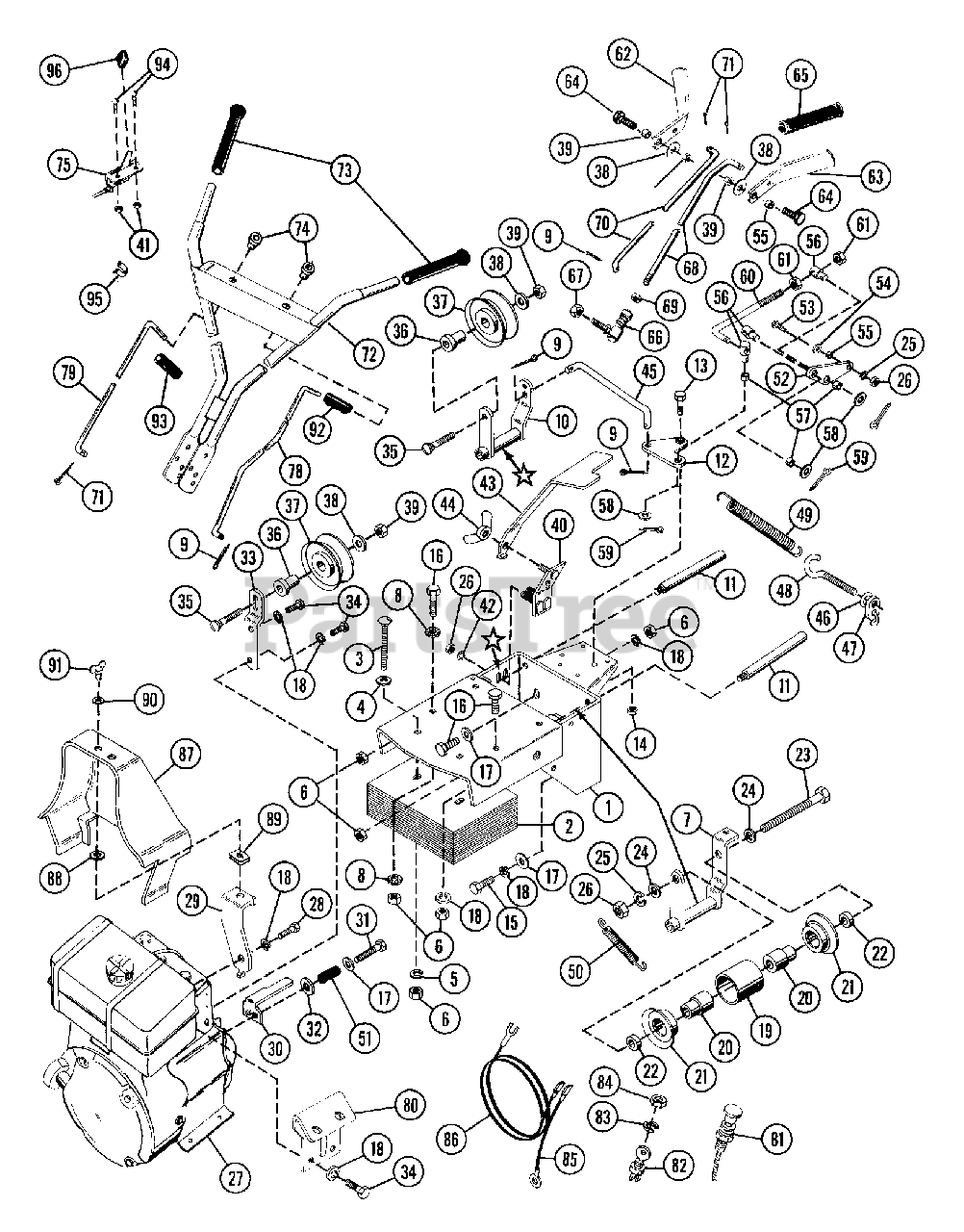

901009 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Kohler (SN: 000101 & Above) Weight & Frame Assembly Parts Diagram

20" Rear Tine Tiller, 8hp Kohler

Weight & Frame Assembly Parts Diagram

  • Title

1

Ariens 00135100

FRAME
(Superseded to 00135159)

$

$

Not available

2

Ariens 00129500

WEIGHT WAFER

$6.65

$

Usually ships in 4-12 days

0

3

Ariens 06200300

BLT-RDHDSQNK .38-16X1.75 PL
(Superseded to 06223800)

$3.99

$

In Stock, only 2 left!

0

4

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00135200

IDLER ARM

$

$

Not available

8

Ariens 06303000

WSHR-LK-EXT .375X.050

$

$

Not available

9

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

10

Ariens 00135400

REVERSE IDLER ARM

$

$

Not available

11

Ariens 00135500

IDLER PIN

$

$

Not available

12

Ariens 00135600

PIVOT LEVER

$

$

Not available

13

Ariens 00135700

BLT.SHLDR .38-16 X 1.25
(Superseded to 07023400)

$34.99

$

In Stock, only 1 left!

0

14

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

19

Ariens 00132800

SLEEVE

$32.99

$

Usually ships in 4-12 days

0

20

Ariens 00130300

BEARING SPACER

$21.99

$

Usually ships in 4-12 days

0

21

Ariens 00212500

IDLER

$52.99

$

Usually ships in 4-12 days

0

22

Ariens 00211100

BSHG, SPCR.500X.750X.321 PM

$3.49

$

In Stock, Qty 5

0

23

Ariens 05920400

BLT-HEX .31-18X4.00 PL GR2
(Superseded to 05963200)

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

25

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

27

ENGINE, KOHLER, 8 HP

$

$

Not available

28

Ariens 05909900

BLT-HEX .38-16X.63 PL GR2

$

$

Not available

29

Ariens 00132900

BELT COVER BRACKET

$

$

Not available

30

Ariens 00133000

BELT FINGER
(Superseded to 00133051)

$

$

Not available

31

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

32

Ariens 06410200

WSHR-FL-STL .406X1.125X.125 PL
(Superseded to 06309100)

$

$

Not available

33

Ariens 00133100

REVERSE IDLER BRACKET
(Superseded to 00133151)

$5.53

$

Usually ships in 4-12 days

0

34

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 19

0

36

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

37

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

38

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 00133200

BELT FINGER BRACKET

$5.99

$

Usually ships in 4-12 days

0

41

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

42

Ariens 06300100

WSHR-LK .313X.093 MED HICLR

$

$

Not available

43

Ariens 00133500

BELT FINGER

$

$

Not available

44

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

45

Ariens 00133600

CROSS LINK

$

$

Not available

46

Ariens 00133700

LINK-CLUTCH

$77.99

$

Usually ships in 4-12 days

0

47

Ariens 00126500

RETAINING NUT

$

$

Not available

48

Ariens 00133800

EYE BOLT

$30.99

$

Usually ships in 4-12 days

0

49

Ariens 08311700

SG-TENS .105X.812X3.88 WLD 15

$7.99

$

In Stock, only 1 left!

0

50

Ariens 08302600

SG-TENS .063X.44X2.81 WLD 18

$20.99

$

Usually ships in 4-12 days

0

51

Ariens 08318800

SG-COMP .125X.68X1.62

$

$

Not available

52

Ariens 00133900

ARM

$

$

Not available

53

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

54

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

55

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

56

Ariens 00134000

UNIVERSAL ROD ADAPTER

$

$

Not available

57

Ariens 00134100

SPACER .63 X .50 X .18

$

$

Not available

58

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

59

Ariens 06701600

PIN-COTR .15 X 1.0 PL
(Superseded to 06712300)

$2.49

$

In Stock, Qty 5

0

60

Ariens 00134300

ROD

$

$

Not available

61

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

62

Ariens 00104200

DRIVE CLUTCH HANDLE
(Superseded to 00104259)

$

$

Not available

63

Ariens 00104300

TILLER CLUTCH HANDLE
(Superseded to 00104359)

$

$

Not available

64

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

65

Ariens 07509400

GRIP

$

$

Not available

66

Ariens 00306000

SNAP IN BALL JOINT

$

$

Not available

67

Ariens 06504300

NUT-LK-CTR .312-24 PL
(Superseded to 06537000)

$

$

Not available

68

Ariens 00104400

TILLER CLUTCH ROD

$

$

Not available

69

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$1.99

$

Usually ships in 4-12 days

0

70

Ariens 00111500

DRIVE CLUTCH ROD

$45.99

$

Usually ships in 4-12 days

0

71

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

72

Ariens 00134800

HANDLEBAR

$

$

Not available

73

Ariens 07507700

HANDLEGRIP

$

$

Not available

74

Ariens 07501200

SNAP BUSHING
(Superseded to 07511200)

$1.49

$

In Stock, only 3 left!

0

75

Ariens 06912500

THROTTLE CONTROL

$

$

Not available

76

Ariens 06909100

CABLE CLAMP NON SKID

Note: (ON ENGINE)

$3.49

$

Usually ships in 4-12 days

0

77

Ariens 06102000

SCR-MCH 10-32X.38 SLHEXSEMS PL

Note: (ON ENGINE)

$

$

Not available

78

Ariens 00134200

CLUTCH ROD

$

$

Not available

79

Ariens 00131400

POSITION ROD

$

$

Not available

80

Ariens 00134400

CONTROL BRACKET

$

$

Not available

81

Ariens 06912800

CHOKE CONTROL
(Superseded to 06910300)

$50.99

$

Usually ships in 4-12 days

0

82

Ariens 62409700

SWITCH & KEY SET ASSEMBLY
(Superseded to 52406900)

$39.99

$

Usually ships in 4-12 days

0

83

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

84

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

$7.99

$

Usually ships in 4-12 days

0

85

Ariens 00134500

SHORTING WIRE

$

$

Not available

86

Ariens 00134600

SHORTING WIRE

$

$

Not available

87

Ariens 00134700

BELT GUARD
(Superseded to 50101800)

$

$

Not available

88

Ariens 07004900

NUT-SPEED 1/4 TURN SOUTHCO

$

$

Not available

89

Ariens 07005000

NUT-RETNR

$

$

Not available

90

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

Usually ships in 4-12 days

0

91

Ariens 07005100

SCR-WING .25 TURN SOUTHCO

$14.99

$

Usually ships in 4-12 days

0

92

Ariens 07509900

GRIP
(Superseded to 07514700)

$

$

Not available

93

Ariens 07510200

GRIP
(Superseded to 07530200)

$1.99

$

Usually ships in 4-12 days

0

94

Ariens 06105700

SCR-MCH 10-24X.50 SLRH BL

$

$

Not available

95

Ariens 07510000

CABLE RETAINER

$

$

Not available

96

Ariens 07510100

KNOB, CONTROL-THROTTLE

$

$

Not available
