90091 (99922204517) - Echo Complete Shaft Assembly for PPT-265 Throttle Control Parts Diagram

Complete Shaft Assembly for PPT-265

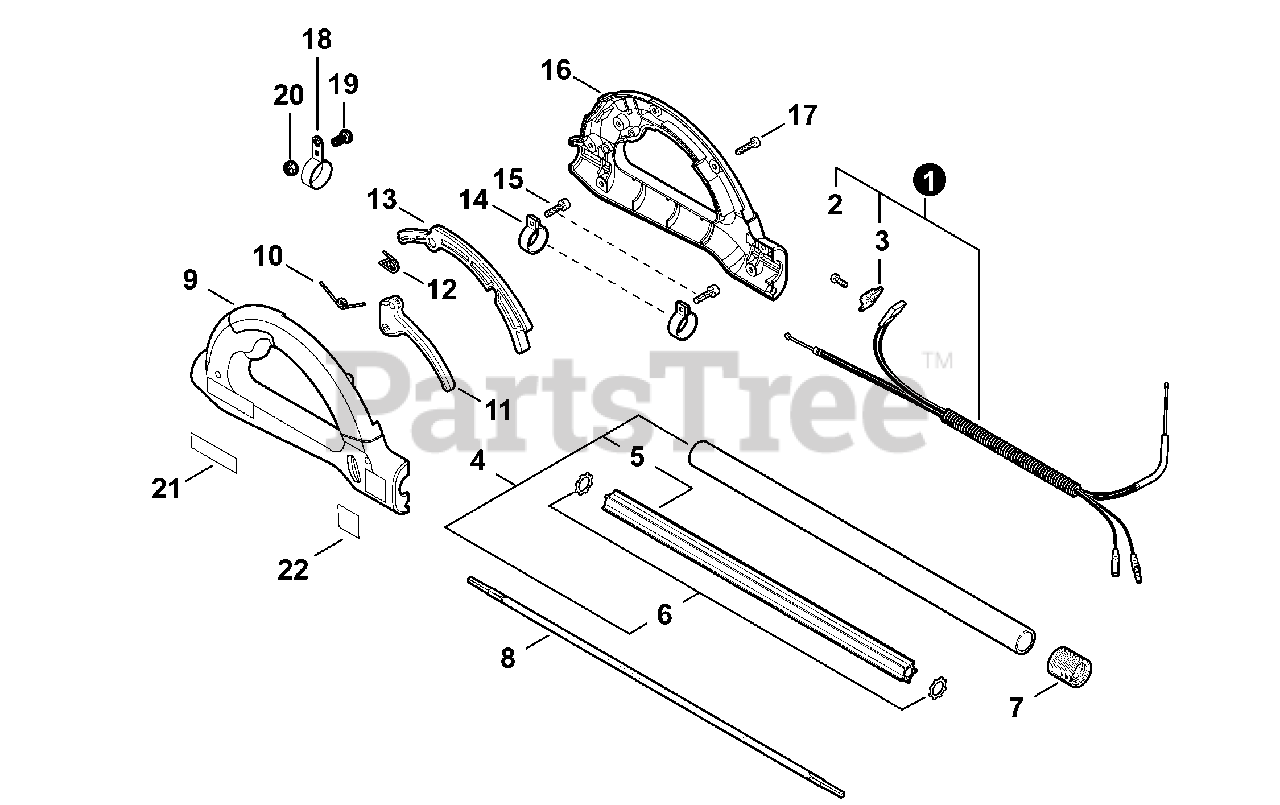

Throttle Control Parts Diagram

  • Title

1

Echo P021017020

CABLE ASSY, CONTROL

Note: Inlcudes Items 2-3

$18.99

$

In Stock, only 1 left!

0

2

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

3

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

4

Echo C050000770

MAIN PIPE ASSY

Note: Includes Items 5-6

$18.99

$

In Stock, Qty 6

0

5

Echo C507000160

LINER

$5.49

$

In Stock, only 1 left!

0

6

Echo V583000110

WASHER

$0.99

$

In Stock, Qty 17

0

7

Echo V475004000

TUBE, FLEXIBLE

$0.99

$

In Stock, only 3 left!

0

8

Echo C506000100

DRIVESHAFT - FLEXIBLE

$47.99

$

In Stock, Qty 14

0

9

Echo C041000011

BODY, HANDLE - LEFT
(Superseded to C041000012)

$10.99

$

Usually ships in 2-4 days

0

10

Echo V452000330

SPRING, TORSION

$0.99

$

In Stock, Qty 6

0

11

Echo C450000260

TRIGGER, THROTTLE

$1.99

$

In Stock, Qty 14

0

12

Echo V452000340

SPRING, TORSION

$0.99

$

In Stock, only 3 left!

0

13

Echo C460000100

LOCKOUT, THROTTLE

$2.49

$

In Stock, only 2 left!

0

14

Echo V495003020

CLAMP

$1.49

$

In Stock, Qty 9

0

15

Echo V253000220

SCREW M5×20

$1.49

$

In Stock, Qty 17

0

16

Echo C041000001

BODY, HANDLE - RIGHT
(Superseded to C041000002)

$10.99

$

Usually ships in 2-4 days

0

17

Echo V253000210

SCREW M5×18

$0.99

$

In Stock, Qty 16

0

18

Echo 30061022061

CLAMP

$4.99

$

Usually ships in 2-4 days

0

19

Echo V253000200

SCREW 5×10

$0.99

$

In Stock, Qty 9

0

20

Echo V263000080

NUT, M5×8 NYLON INSERT

$0.99

$

Usually ships in 2-4 days

0

21

Echo X502000610

LABEL, ECHO

$0.99

$

Usually ships in 2-4 days

0

22

Echo X505002362

LABEL, CAUTION

$1.99

$

Usually ships in 2-4 days

0
