90081 (99922203317) - Echo 35mm Oiler Gear Case Assembly Oiler Gear Case Assembly - 35mm Parts Diagram

35mm Oiler Gear Case Assembly

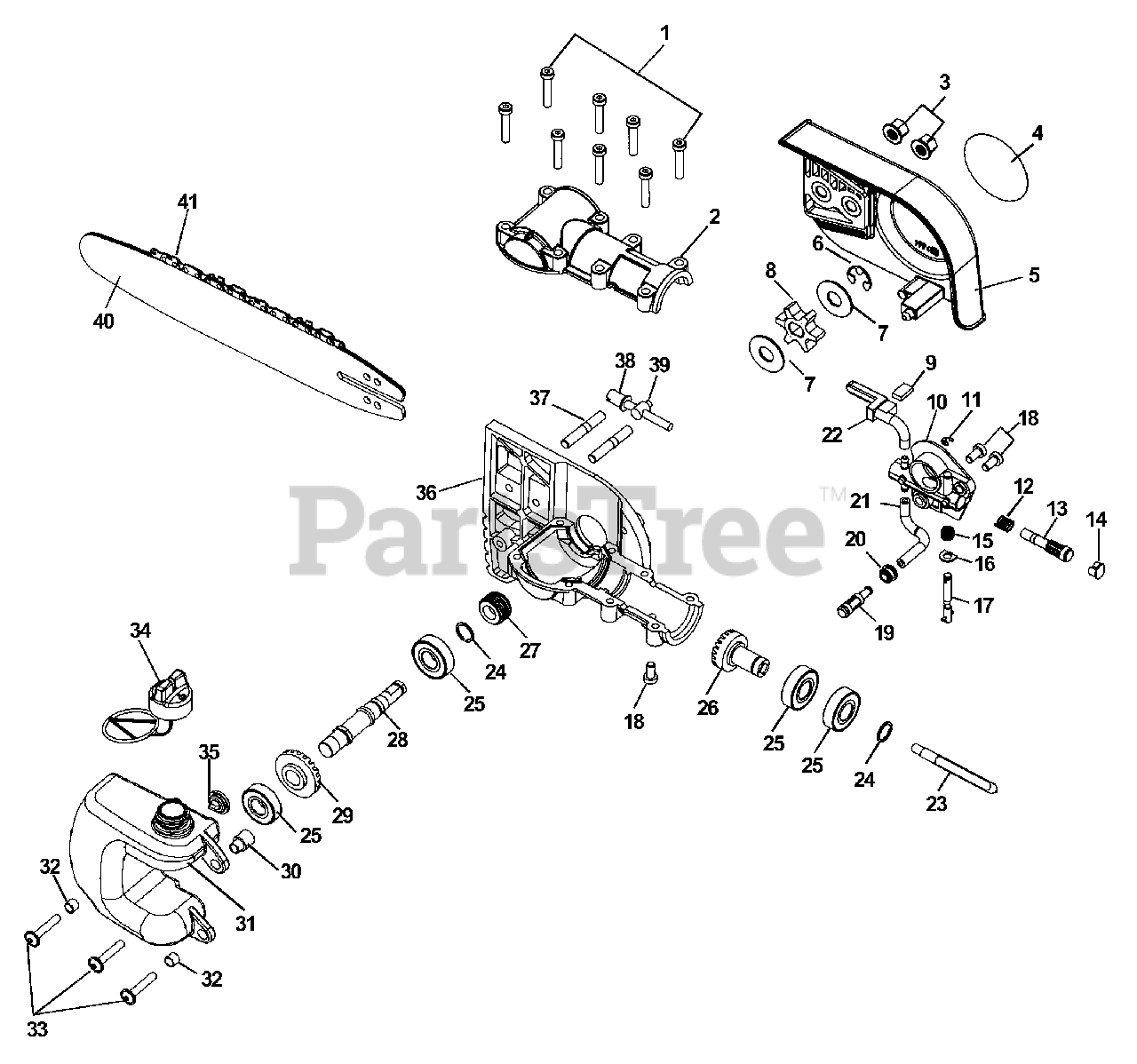

Oiler Gear Case Assembly - 35mm Parts Diagram

  • Title

1

Echo V253000000

SCREW - 5X25
(Superseded to 90010905025)

$0.99

$

In Stock, only 4 left!

0

2

Echo C531000030

CASE, GEAR - UPPER

$91.99

$

In Stock, only 1 left!

0

3

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

4

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

5

Echo C300000000

GUARD, SPROCKET
(Superseded to C300000001)

$16.99

$

In Stock, only 2 left!

0

6

Echo V583000010

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

7

Echo 17501439131

WASHER

$2.49

$

In Stock, only 4 left!

0

8

Echo C580000070

SPROCKET, DRIVE

$4.99

$

In Stock, Qty 10

0

9

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

10

Echo 43700239130

AUTO-OILER ASSY

Note: Includes ITEMS 11-17

$70.99

$

In Stock, only 1 left!

0

11

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

12

Echo 43701938330

SPRING, PLUNGER

$3.99

$

Usually ships in 2-4 days

0

13

Echo 43702437330

PLUNGER ASSY

$23.99

$

In Stock, only 1 left!

0

14

Echo 43706237330

CAP, OIL PUMP

$3.99

$

In Stock, only 3 left!

0

15

Echo 43701537330

SPRING

$3.99

$

Usually ships in 2-4 days

0

16

Echo 43702937330

WASHER

$2.99

$

Usually ships in 2-4 days

0

17

Echo 43701639130

NEEDLE, ADJUST

$17.99

$

Usually ships in 2-4 days

0

18

Echo V253000010

SCREW - 5X10
(Superseded to Discontinued)

$

$

Not available

19

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

20

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

21

Echo 13011014330

PIPE - 3X6X75 -- BLACK

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, Qty 7

0

22

Echo V470000180

PIPE, OIL OUTLET
(Superseded to V470000181)

$1.99

$

In Stock, only 3 left!

0

23

Echo 61002522360

CONNECTOR, SHAFT
(Superseded to 61002522361)

$5.99

$

Usually ships in 2-4 days

0

24

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 6

0

25

Echo 9405206001

BEARING, BALL - 6001

$

$

Currently unavailable

26

Echo V651000040

GEAR - BEVEL
(Superseded to V651000041)

$29.99

$

In Stock, only 1 left!

0

27

Echo V652000021

GEAR - WORM

$14.99

$

In Stock, only 1 left!

0

28

Echo C534000020

GEAR - SHAFT
(Superseded to P021005391)

$

$

Not available

29

Echo 61031122060

GEAR - BEVEL
(Superseded to P021011610)

$

$

Not available

30

Echo V354000010

SPACER

$6.99

$

Usually ships in 2-4 days

0

31

Echo C200000000

TANK, OIL

$9.99

$

In Stock, only 1 left!

0

32

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

33

Echo V253000020

SCREW - 5X20

$1.49

$

In Stock, Qty 9

0

34

Echo P021000950

CAP ASSY
(Superseded to P021000951)

$2.99

$

In Stock, Qty 14

0

35

Echo 13131406320

VENT

$5.49

$

In Stock, only 2 left!

0

36

Echo C531000040

CASE, GEAR - LOWER
(Superseded to C051000120)

$82.99

$

In Stock, only 1 left!

0

37

Echo V224000000

STUD - 6

$2.49

$

In Stock, only 4 left!

0

38

Echo 43301639131

SCREW, TENSIONER

$4.49

$

In Stock, Qty 19

0

39

Echo 43301403931

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

40

------------------

GUIDE BAR

$

$

Not available

41

------------------

CHAIN, SAW

$

$

Not available
