90026C (31AH54KS596) - Cub Cadet 26" Snow Thrower (2010) Drive Assembly Parts Diagram

26" Snow Thrower

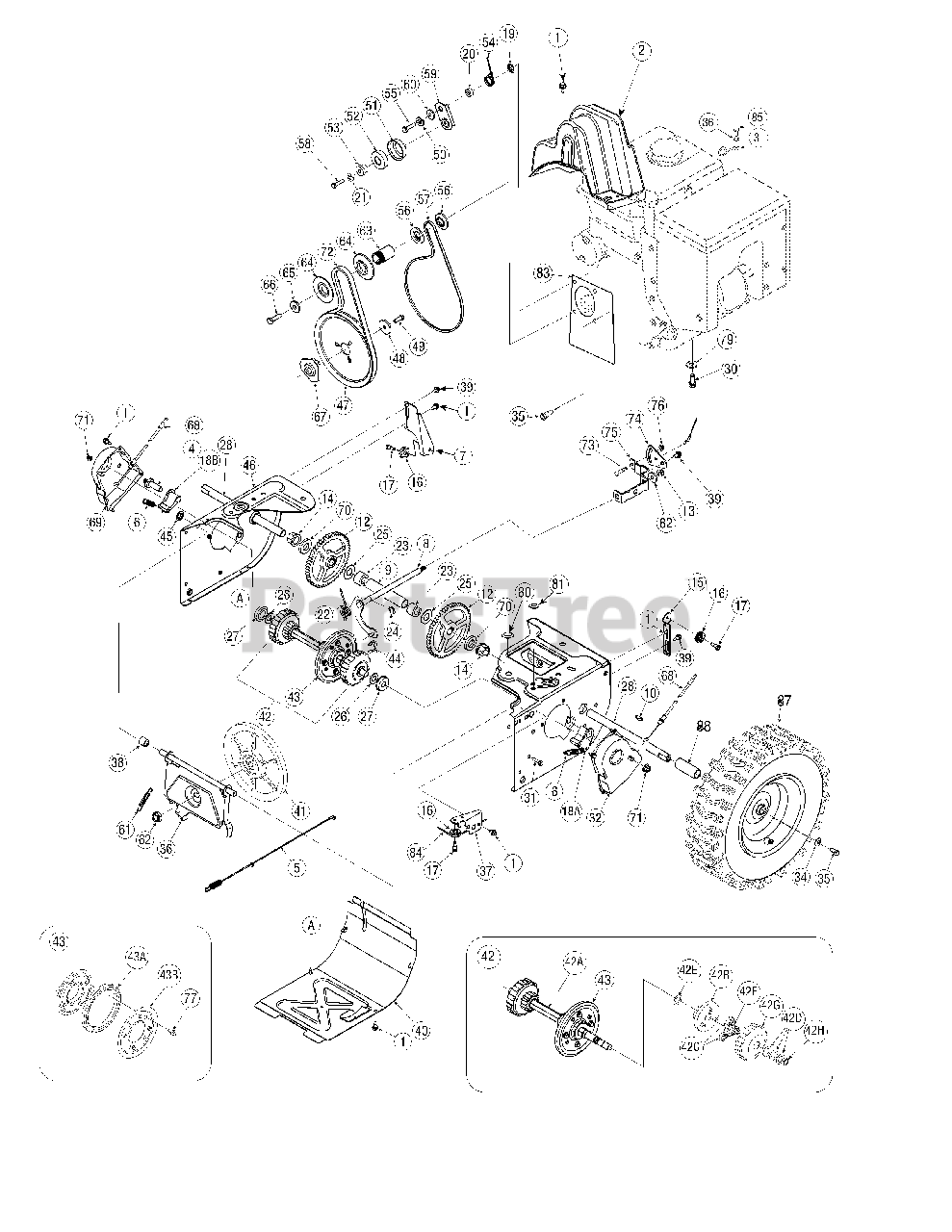

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 710-1652

Hex Wash Hd TT Scr. 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 731-06401

Belt Cover (w/277 cc - 357 cc engines)
(Superseded to 753-09065)

$27.99

$

In Stock, Qty 11

0

3

Cub Cadet 732-04677

Cable Control Wire

$8.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 711-1268B

Drive Shaft Actuator

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 746-04229

Drive Clutch Cable 44.83" Lg.
(Superseded to 946-04229B)

$21.99

$

In Stock, Qty 20+

0

6

Cub Cadet 732-04345

Extension Spring .5 OD x 1.71 Lg.

$10.99

$

In Stock, only 1 left!

0

7

Cub Cadet 790-00207B

Guide Bracket - Drive Cable
(Superseded to 790-03997)

$5.49

$

In Stock, only 4 left!

0

8

Cub Cadet 684-04156A

Shift Rod Ass’y

$61.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 750-04474

Axle Support Tube

$42.99

$

In Stock, only 1 left!

0

10

Cub Cadet 914-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 19

0

12

Cub Cadet 917-04210

Gear, 56T

$79.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-04063

Flange Lock-Nut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 941-0245

Hex. Flange Bearing.751" ID

$9.99

$

In Stock, Qty 20+

0

15

Cub Cadet 790-00206A-0637

Guide Bracket - Auger Cable
(Superseded to 790-00206B)

$8.49

$

In Stock, only 1 left!

0

16

Cub Cadet 756-0625

Cable Guide Roller

$9.49

$

In Stock, Qty 16

0

17

Cub Cadet 738-0924A

Hex Shld.Scr.1/4-28 x .375

$6.99

$

In Stock, Qty 5

0

18A

Cub Cadet 618-04288

Dogg Assembly - LH

$21.99

$

Usually ships in 3-6 days

0

18B

Cub Cadet 618-04287

Dogg Assembly - RH

$23.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 926-04012

Push Nut
(Superseded to 726-04012)

$

$

Not available

20

Cub Cadet 750-04477A

Spacer .340 x .750 x .360" Lg.

$5.49

$

In Stock, Qty 5

0

21

Cub Cadet 936-0329

L-Wash 1/4 ID

$4.49

$

In Stock, Qty 11

0

22

Cub Cadet 732-04311

Torsion Spring .750 ID x .968" Lg.
(Superseded to 732-04311A)

$10.99

$

In Stock, only 1 left!

0

23

Cub Cadet 731-05297

Spacer

$9.99

$

In Stock, only 2 left!

0

24

Cub Cadet 916-0104

Retaining Ring

$3.99

$

In Stock, Qty 15

0

25

Cub Cadet 736-0188

Flat Washer .760 ID x 1.49 OD

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0626

Flat Washer .580 x 1.125 x .080

$9.49

$

In Stock, only 2 left!

0

27

Cub Cadet 741-04076

Ball Bearing

$14.99

$

In Stock, Qty 16

0

28

Cub Cadet 938-04180

Axle

$70.99

$

In Stock, only 2 left!

0

30

Cub Cadet 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 3 left!

0

31

Cub Cadet 710-0788

Hex Bolt 1/4-20 x 1.00

$7.49

$

In Stock, only 4 left!

0

32

Cub Cadet 790-00185

Shaft Retainer - LH

Variations

Cub Cadet 790-00185-0606

RETAINER-HEX SHFT LH - MAJESTIC ORANGE (0606)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00185-0638

RETAINER-HEX SHFT LH - MTD/TROY-BILT RED (0638)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00185-0662

RETAINER-HEX SHFT LH - OYSTER GRAY (0662)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00185-0691

RETAINER:SHF:DR/ACTR LH - BLACK JACK (0691)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00185-0709

RETAINER:SHF:DR/ACTR LH - MASTERCRAFT GREEN (0709)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00185-0721

USE 790-00185-4044 RETAINER-H - SEARS RED (0721)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00185-4021

RETAINER-HEX SHFT LH - CUB YELLOW 2 (4021)

$30.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00185-4044

RETAINER-HEX SHFT LH - CRAFTSMAN RED (4044)

$22.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 738-04439

Shoulder Screw .50 x .145: 5/16-24

$3.99

$

In Stock, Qty 6

0

36

Cub Cadet 684-04154B

Friction Wheel Support Brkt Ass’y

Variations

Cub Cadet 684-04154B-0637

BRACKET ASM-SUPPORT - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 790-00096-0637

Auger Cable Guide Bracket
(Superseded to 790-00096B-0637)

$9.49

$

In Stock, only 1 left!

0

38

Cub Cadet 748-0190

Spacer .513 ID x 1.0

$6.49

$

In Stock, only 1 left!

0

39

Cub Cadet 738-04184A

Shoulder Screw .373 x .105:TT 1/4-20

$6.99

$

In Stock, Qty 15

0

40

Cub Cadet 790-00316

Frame Cover

Variations

Cub Cadet 790-00316-0637

Frame Snowth Cover - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

Cub Cadet 790-00316-4021

Snowthrower Frame Cover - CUB YELLOW 2 (4021)

$47.99

$

In Stock, only 1 left!

0

Cub Cadet 790-00316-0606

Snowthrower Frame Cover - MAJESTIC ORANGE (0606)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0638

Frame Snowth Cover - MTD/TROY-BILT RED (0638)

$47.99

$

In Stock, only 1 left!

0

Cub Cadet 790-00316-4033

Snowthrower Frame Cover - FLINT MICA (4033)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-4043

COVER-SNWTH FRAME - CRAFTSMAN METALLIC GRAY (4043)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0691

Frame Snowth Cover - BLACK JACK (0691)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0662

COVER-FRAME SNOWTH - OYSTER GRAY (0662)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0665

COVER-FRAME SNOWTH - YARDMAN GREEN (0665)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0667

COVER-FRAME SNOWTH - MIDNIGHT BLUE (0667)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0689

COVER-FRAME SNOWTH - POLO GREEN (0689)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0709

COVER-FRAME SNOWTH - MASTERCRAFT GREEN (0709)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0729

COVER-FRAME SNOWTH - STORM GRAY (0729)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-4041

CVR-SNWTH FRAME - PURE ORANGE (4041)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-4044

COVER-SNWTH FRAME - CRAFTSMAN RED (4044)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-4062

CVR-SNWTH FRAME - COOL GRAY (4062)

$44.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 656-04055

Friction Wheel Disc Assembly
(Superseded to 656-04055A)

$59.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 918-04322A

Drive Shaft Assembly (w/o Friction Wheel Ass'y)

$495.99

$

Usually ships in 3-6 days

0

42A

Cub Cadet 711-04416A

Hex Drive Shaft (500)

$128.99

$

Usually ships in 3-6 days

0

42B

Cub Cadet 918-04284

Planetary Carrier Ass'y

$67.99

$

Usually ships in 3-6 days

0

42C

Cub Cadet 717-1209A

Gear 12T

$4.99

$

Usually ships in 3-6 days

0

42D

Cub Cadet 936-0502

Flat Washer .58 x 1.12 x .02

$6.99

$

Usually ships in 3-6 days

0

42E

Cub Cadet 936-0336

Flat Washer 5/8 ID x 1.0 OD

$4.49

$

In Stock, Qty 7

0

42F

Cub Cadet 717-1210A

Gear 18T

$8.99

$

In Stock, only 3 left!

0

42G

Cub Cadet 918-04285

Ring Planetary Gear Ass'y (500)

$68.99

$

In Stock, only 1 left!

0

42H

Cub Cadet 716-0194

Retaining Ring 1.56 diam.

$3.99

$

In Stock, only 3 left!

0

43

Cub Cadet 684-04159

Friction Wheel Assembly
(Superseded to 684-04159C)

$96.99

$

In Stock, only 2 left!

0

43A

Cub Cadet 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

43B

Cub Cadet 790-00174

Friction Plate
(Superseded to 790-00174C)

$14.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 716-0136

Retainer Ring

$8.99

$

In Stock, only 2 left!

0

45

Cub Cadet 726-0221

Cap Speed Nut 1/4 Rod

$6.49

$

In Stock, only 1 left!

0

46

Cub Cadet 790-00183B

Wheel Drive Frame
(Superseded to 790-00183E)

Variations

Cub Cadet 790-00183B-0606

USE 790-00183C-0606 FRAME-500 - MAJESTIC ORANGE (0606)

$85.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00183B-0637

USE 790-00183C-0637 FRAME-500 - POWDER BLACK (0637)

$106.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00183B-0638

FRAME-WHEEL DRIVE - MTD/TROY-BILT RED (0638)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00183B-0650

FRAME-WHEEL DRIVE - RED METALLIC (0650)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00183B-0689

FRAME-WHEEL DRIVE - POLO GREEN (0689)

$85.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00183B-0691

USE 790-00183C-0691 FRAME-500 - BLACK JACK (0691)

$98.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00183B-0716

FRM:500:WHL DR CUB - CUB YELLOW-99 (0716)

$106.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00183B-4021

USE 790-00183C-4021 FRAME-500 - CUB YELLOW 2 (4021)

$106.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00183B-4033

USE 790-00183C-4033 FRAME-500 - FLINT MICA (4033)

$85.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00183B-4044

USE 790-00183C-4044 FRAME-500 - CRAFTSMAN RED (4044)

$85.99

$

Usually ships in 3-6 days

0

$85.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 756-04109

Auger Pulley

$54.99

$

In Stock, only 2 left!

0

48

Cub Cadet 736-0505

Flat Washer .34 x 1.50 x .150

$6.49

$

In Stock, only 2 left!

0

49

Cub Cadet 710-1245B

Hex Bolt 5/16-24 x 0.875

$8.49

$

In Stock, only 2 left!

0

50

Cub Cadet 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 790-00230

Bearing Sleeve

$7.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 941-0919

Ball Bearing 20 x 47 x 14:6204:DS
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

53

Cub Cadet 750-04571

Spacer

$6.99

$

In Stock, only 3 left!

0

54

Cub Cadet 732-04308A

Torsion Spring .850 ID x .354" Lg.
(Superseded to 732-04308C)

$5.49

$

In Stock, only 4 left!

0

55

Cub Cadet 710-0672

Hex HD. Cap Scr. 5/16-24 x 1.25 Lg.

$4.49

$

In Stock, Qty 19

0

56

Cub Cadet 756-04252

Pulley Half

$6.49

$

In Stock, only 1 left!

0

57

Cub Cadet 954-04201A

Belt 3/8 x 35.68" Lg.(w/277cc - 357cc engines)

$34.99

$

In Stock, Qty 20+

0

58

Cub Cadet 710-0809

Hex Bolt 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

59

Cub Cadet 790-00208C

Wheel Drive Idler Bracket
(Superseded to 790-00208D)

$8.99

$

In Stock, only 1 left!

0

60

Cub Cadet 748-04112B

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 932-0264

Extension Spring 3/8 OD x 2.50

$4.99

$

In Stock, Qty 20+

0

62

Cub Cadet 712-0417A

Jam L-Nut 5/8-18 Gr. 5 Nylon

$6.99

$

In Stock, Qty 20+

0

63

Cub Cadet 750-04303

Spacer .875 ID x 1.185 OD

$17.99

$

In Stock, only 1 left!

0

64

Cub Cadet 756-04113

Pulley Half
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

65

Cub Cadet 736-0247

Flat Washer .40 ID x 1.25 OD x .160

$9.49

$

In Stock, Qty 16

0

66

Cub Cadet 710-0191

Hex Screw 3/8-24 x 1.25

$4.99

$

In Stock, Qty 8

0

67

Cub Cadet 748-04053A

Pulley Adapter

$22.99

$

In Stock, only 1 left!

0

68

Cub Cadet 946-0956B

Steering Cable
(Superseded to 946-0956C)

$23.99

$

In Stock, Qty 7

0

69

Cub Cadet 790-00186

Shaft Retainer - RH

Variations

Cub Cadet 790-00186-0606

RETAINER-HEX SHFT RH - MAJESTIC ORANGE (0606)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00186-0638

RETAINER-HEX SHFT RH - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00186-0662

RETAINER-HEX SHFT RH - OYSTER GRAY (0662)

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00186-0691

RETAINER:SHF:DR/ACTR RH - BLACK JACK (0691)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00186-0709

RETAINER:SHF:DR/ACTR RH - MASTERCRAFT GREEN (0709)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00186-0721

USE 790-00186-4044 RETAINER-H - SEARS RED (0721)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00186-4021

RETAINER-HEX SHFT RH - CUB YELLOW 2 (4021)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00186-4044

RETAINER-HEX SHFT RH - CRAFTSMAN RED (4044)

$21.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 750-0767

Axle Spacer

$5.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

72

Cub Cadet 954-04195

Belt .5 x 37.0 (w/277cc - 357cc engines)
(Superseded to 954-04195A)

$34.99

$

In Stock, Qty 20+

0

73

Cub Cadet 710-0751

Hex Bolt 1/4-20 x .62 Gr. 5

$3.99

$

In Stock, Qty 20+

0

74

Cub Cadet 790-00217A-0637

Pivot Bracket
(Superseded to 790P01117)

$53.99

$

In Stock, only 1 left!

0

75

Cub Cadet 790-00218A-0637

Shift Bracket
(Superseded to 790-00218A)

$47.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 712-04064

Flange Lock-Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

77

Cub Cadet 710-0896

Hex Wash. Hd. TT Scr. 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 736-0320

Flat Washer .38 x 1.38 x .125 (Rear left hole)

$6.99

$

In Stock, Qty 7

0

80

Cub Cadet 735-04100

Plug 1/2"

$5.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 735-04099

Plug 3/8"

$5.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 936-3015

Flat Washer .469 x .875 x .105

$4.49

$

In Stock, only 1 left!

0

83

Cub Cadet 790-00289A-0637

Cover Plate (optional)
(Superseded to 790-00289B-0637)

$26.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 746-04230

Auger Clutch Cable 47.23" Lg.
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

85

Cub Cadet 710-04022

Hex. Hd. Cap Scr. M8-1.25:20 Gr. 8
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 936-0264

Flat Washer .330 ID x .630 OD x .0635

$6.99

$

In Stock, only 3 left!

0

87

Cub Cadet 634-04145

Wheel Ass'y 16 x 4.8 x 8 LH

Note: X-Trac

Variations

Cub Cadet 634-04145-0911

Wheel Assembly, Gray LH X-Track - Carlisle Gray (0911)

$268.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04145-0921

Wheel Complete, LH X-Trac - Carlisle White (0921)

$250.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04145-0931

WHEEL COMP-LH X-TRA - Carlisle Beige (0931)

$250.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04145-0941

WHEEL COMP-LH X-TRA - Carlisle Yellow (0941)

$250.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04145-0961

WHL COMP-LH X-TRA - Carlisle Gray (0961)

$268.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04145-0971

WHEEL COMP-LH X-TRA - Carlisle Yellow (0971)

$234.99

$

Usually ships in 3-6 days

0

$218.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 634-04146

Wheel Ass'y 16 x 4.8 x 8 RH

Note: X-Trac

Variations

Cub Cadet 634-04146-0931

Wheel Assembly, RH X-Tra - Carlisle Beige (0931)

$248.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04146-0911

WHEEL COMP-RH X-TRA - Carlisle Gray (0911)

$267.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04146-0921

WHL COMP-RH X-TRA - Carlisle White (0921)

$267.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04146-0941

WHEEL COMP-RH X-TRA - Carlisle Yellow (0941)

$248.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04146-0961

WHL COMP-RH X-TRA - Carlisle Gray (0961)

$248.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04146-0971

WHEEL COMP-RH X-TRA - Carlisle Yellow (0971)

$233.99

$

Usually ships in 3-6 days

0

$217.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 734-2038

Tire Only
(Superseded to 734-2038-0901)

Note: Not shown

Variations

Cub Cadet 734-2038-0901

TIRE-16X4.8X8XTRAC - Carlisle (0901)

$96.99

$

Usually ships in 3-6 days

0

$96.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 634-04173

Rim Only

Note: Not shown

Variations

Cub Cadet 634-04173-0499

Rim Assembly, 8.0 X 3.75 with Valve - CUB BEIGE (0499)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04173-0662

RIM ASM-8.0X3.75 W - OYSTER GRAY (0662)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04173-0674

RIM ASM-8.0X3.75 W - YARDMAN YELLOW (0674)

$77.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04173-4042

RIM ASM-8.0X3.75 W - CRAFTSMAN GRAY (4042)

$62.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 731-04873

Spacer, Wheel 1.25ODX.75X3.00

$10.99

$

In Stock, only 2 left!

0
