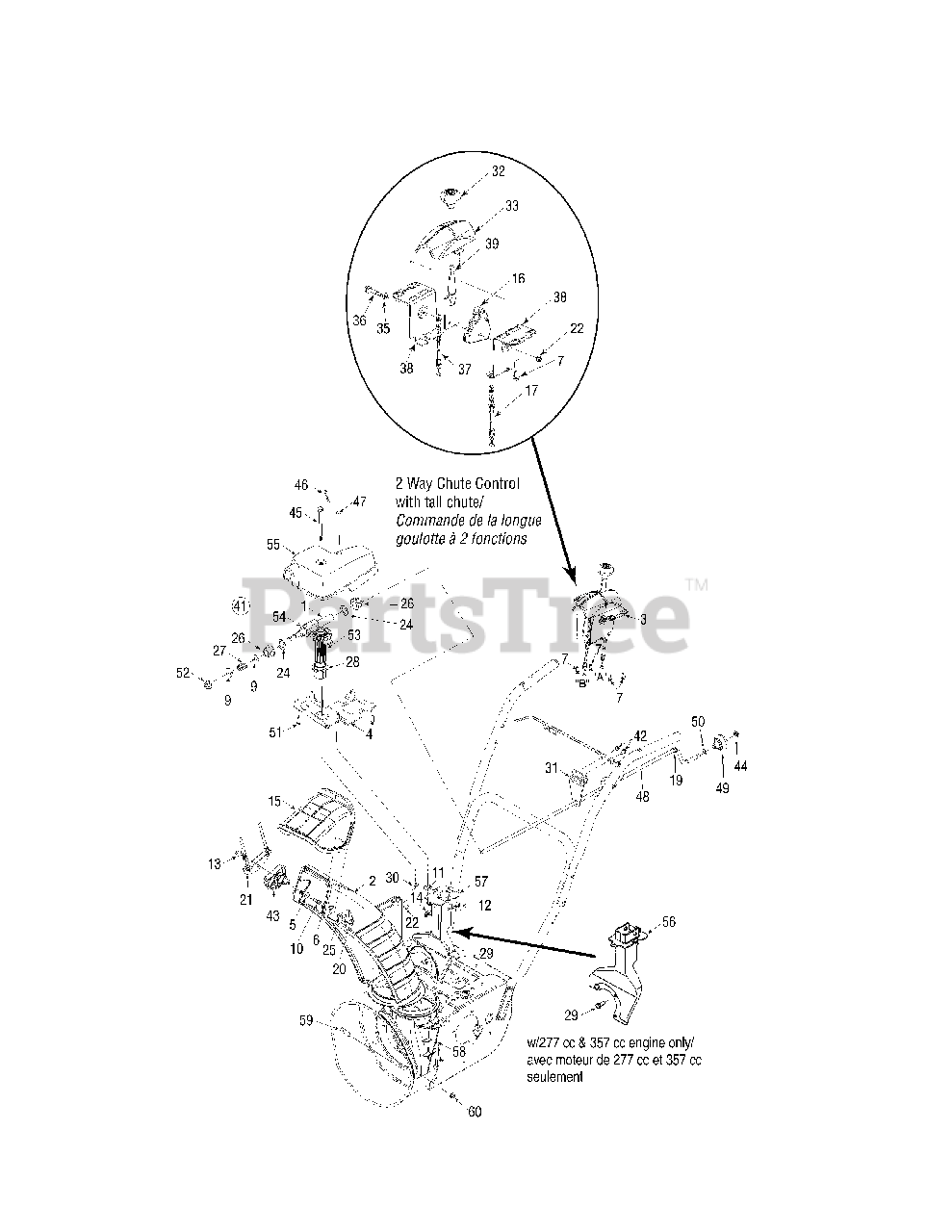

90026C (31AH54KS596) - Cub Cadet 26" Snow Thrower (2010) Chute Control 2 Way Parts Diagram

26" Snow Thrower

Chute Control 2 Way Parts Diagram

  • Title

1

Cub Cadet 711-05329

Hex Shaft
(Superseded to 711-05329A)

$22.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 731-06440A

Tall Lower Chute

$51.99

$

In Stock, Qty 19

0

3

Cub Cadet 984-04325

2 Way Chute control Assembly
(Superseded to 984-04325A)

$98.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 790-00342B-0637

Chute Gear Rotation Bracket
(Superseded to 790-00342C-0637)

$28.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0262

Carriage Bolt 5/16-18 x 1.50 Gr. 2

$3.99

$

In Stock, Qty 12

0

6

Cub Cadet 710-04071

Carriage Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 15

0

7

Cub Cadet 710-04187

Hi-Lo Screw 1/4-15 x .5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

9

Cub Cadet 736-3072

Flat Washer .38 x .92 x .110

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 5

0

11

Cub Cadet 711-04469A

Clevis Pin 3/8 x 1.87

$5.99

$

In Stock, only 4 left!

0

12

Cub Cadet 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04063

Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3087

Wing Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 731-04425B

Upper Chute w/Export Label, Remote
(Superseded to 931-04425B)

$22.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-1313C

Cable Guide

$11.99

$

In Stock, Qty 20+

0

17

Cub Cadet 946-04551

Cable

Note: Used with 946-04527

$38.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 720-04072A

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 784-5594

Cable Bracket Chute Tilt

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0290

Flat Washer .625 x 1.0 x .067

$6.99

$

In Stock, only 3 left!

0

25

Cub Cadet 936-0159

Flat Washer .349 ID x .879 OD x .063
(Superseded to 736-0159)

$

$

Not available

26

Cub Cadet 941-0225

Hex Flg. Bearing

$7.49

$

In Stock, Qty 20+

0

27

Cub Cadet 732-04756

Compression Spring .39 x .60 x .88

$3.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 741-04388

Hex Bearing
(Superseded to 741-04388A)

$7.49

$

In Stock, only 1 left!

0

29

Cub Cadet 710-0627

Hex Hd. Cap Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-04446

Flat Washer .25 ID x .63 OD x .0515 HT.

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 790-00341

Support Rod Bracket

Variations

Cub Cadet 790-00341-0637

Support Rod Bracket - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 720-04039

Knob

$10.99

$

In Stock, only 2 left!

0

33

Cub Cadet 731-05307

control Cover - 2 Way

$11.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0413

Spring Washer .390 x .625 x .012

$6.99

$

In Stock, only 2 left!

0

36

Cub Cadet 738-04185

Flg Shlder Screw .310 x .995: 1/4-20

$8.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 946-04238

Cable - w/standard chute

$36.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 946-04527

Cable - w/tall chute

$38.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 790-00200

Mounting Bracket - 2 Way
(Superseded to 790-00200A)

Variations

Cub Cadet 790-00200-0637

BRACKET-2 WAY CNTRL - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 790-00210A

Lever - 2 Way

Variations

Cub Cadet 790-00210A-0637

LEVER-2 WAY CONTRO - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 918-04933

Gear box Assembly
(Superseded to 918-04933B)

$93.99

$

In Stock, only 1 left!

0

42

Cub Cadet 710-1652

Hex Wash Hd TT Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 731-06451

Cable Guide

$4.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 926-0100

Push Nut 3/8" Rod
(Superseded to 726-0100)

$

$

Not available

45

Cub Cadet 738-04367

Flg. Shoulder Screw .312 x 3.5: 1/4-20

$4.99

$

In Stock, only 1 left!

0

46

Cub Cadet 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

47

Cub Cadet 710-04370

Hex. Hd. Cap Screw 1/4-20 x 3.0 Gr. 5

$4.49

$

In Stock, only 1 left!

0

48

Cub Cadet 747-05386-0637

Chute Crank .375 Dia. x 30.5" Lg.
(Superseded to 747-05386A-0637)

$31.99

$

In Stock, only 1 left!

0

49

Cub Cadet 720-04102

Knob

$6.99

$

In Stock, only 2 left!

0

50

Cub Cadet 936-0185

Flat Washer .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 2 left!

0

51

Cub Cadet 710-04373A

Hi-Lo Screw #12-16 x .75

$4.49

$

In Stock, Qty 15

0

52

Cub Cadet 712-04065

Hex L-Flanged Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 717-04667

Gear 14 teeth helical w/hub
(Superseded to 717-04667B)

$10.99

$

In Stock, only 4 left!

0

54

Cub Cadet 717-04672

Worm - Nylon
(Superseded to 717-04672A)

$9.49

$

In Stock, only 3 left!

0

55

Cub Cadet 731-07529

Cover
(Superseded to 731-07529A)

$18.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 684-04310A-0637

Chute Sup. Bkt. Ass'y
(Superseded to 684-04310B-0637)

Note: (w/277 cc & 357 cc engines only)

$40.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 684-04311A-0637

Chute Support Bracket Ass'y

$42.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 731-07525

Chute Adapter

$18.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 710-0703

Carriage Screw 1/4-20 x .75 Gr. 5

$4.49

$

In Stock, Qty 15

0

60

Cub Cadet 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0
