90026 PC (31AH54K3897) - Columbia 26" Snow Thrower (2011) Auger & Housing Assembly Parts Diagram

26" Snow Thrower

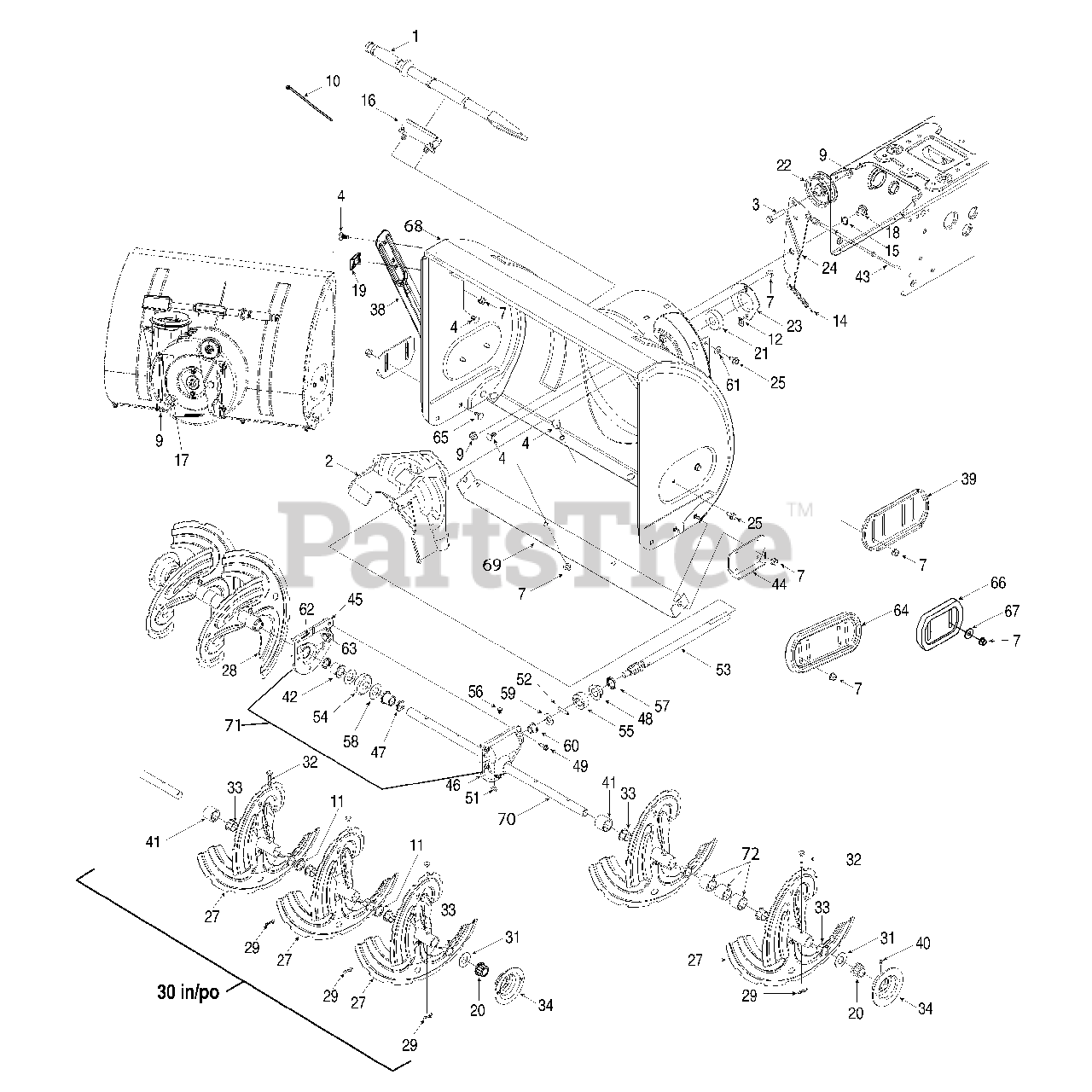

Auger & Housing Assembly Parts Diagram

  • Title

1

White Outdoor 931-2643

Clean-Out Tool

$19.99

$

In Stock, Qty 16

0

2

White Outdoor 684-04057A-0637

Impeller Ass'y
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-04065

Hex L-Flanged Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 731-04871

Spacer 1.25 x .75 x 3/16" Lg.

$6.99

$

In Stock, Qty 20+

0

12

White Outdoor 926-04012

Push-on Nut .25 dia.
(Superseded to 726-04012)

$

$

Not available

14

White Outdoor 732-04460

Extension Spring .38 OD x 4.59" Lg.

$5.49

$

In Stock, Qty 20+

0

15

White Outdoor 736-0174

Wave Washer .660 ID x .88 OD x .010

$6.99

$

In Stock, Qty 11

0

16

White Outdoor 731-2635

Cleanout Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 20+

0

17

White Outdoor 738-0143

Shld. Scr. .500 Dia. x .335" Lg.

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 938-0281

Shoulder Scr .625 Dia x .170
(Superseded to 738-0281)

$

$

Not available

19

White Outdoor 920-0284

Hand Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 9

0

20

White Outdoor 941-0245

Hex. Flange Brg. .751" I.D.

$9.99

$

In Stock, Qty 20+

0

21

White Outdoor 941-0309

Self-aligning bearing

$74.99

$

Usually ships in 3-6 days

0

22

White Outdoor 756-04224

Flat Idler Pulley 2.75" OD

$26.99

$

In Stock, Qty 20+

0

23

White Outdoor 790-00075

Bearing Housing 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 12

0

24

White Outdoor 790-00080A-0637

Auger Idler Brake Bracket
(Superseded to 790-00080D)

$28.99

$

In Stock, Qty 11

0

25

White Outdoor 710-04484

Hex TT Screw 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 684-04107-0637

Spiral Ass'y LH
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 20+

0

28

White Outdoor 684-04108-0637

Spiral Ass'y RH
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 10

0

29

White Outdoor 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

31

White Outdoor 736-0188

Flat Washer .760 ID x 1.49 OD

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 738-04124A

Shear Pin .25 x 1.5 Gr. 2

$1.99

$

In Stock, Qty 20+

0

33

White Outdoor 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 790-00087A-0637

Bushing Housing

$22.99

$

In Stock, Qty 8

0

34

White Outdoor 790-00138A-0637

Bushing Housing (w/grease fitting hole)

$15.99

$

Usually ships in 3-6 days

0

38

White Outdoor 790-00181-0637

Drift Cutter - Optional

$43.99

$

Usually ships in 3-6 days

0

39

White Outdoor 790-00091-0637

Reversible Slide Shoe (steel)

$30.99

$

In Stock, Qty 20+

0

40

White Outdoor 937-3000

Grease Fitting (optional)

$4.99

$

In Stock, Qty 20+

0

41

White Outdoor 731-04870

Spacer 1.25 x .75 x 1.00

$4.99

$

In Stock, Qty 20+

0

42

White Outdoor 741-0661A

Flange Bearing.75 ID x 1.0 OD x .975
(Superseded to 741-0661B)

$10.99

$

In Stock, Qty 11

0

43

White Outdoor 946-04230A

Auger Clutch Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

44

White Outdoor 784-5580-0637

Slide Shoe

$23.99

$

In Stock, Qty 20+

0

45

White Outdoor 918-0123A

RH Reduced Auger Housing

$52.99

$

In Stock, Qty 19

0

46

White Outdoor 918-0124A

LH Reduced Auger Housing

$52.99

$

In Stock, Qty 16

0

47

White Outdoor 921-0338

Oil Seal .75 x 1.0 x .125

$7.49

$

In Stock, Qty 20+

0

48

White Outdoor 741-0662

Flange Bearing .75 ID x 1.00 OD x .50

$10.99

$

In Stock, Qty 17

0

49

White Outdoor 710-0642

Thd Forming Scr. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 914-0161

Hi Pro Key 3/16 x 5/8

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 715-04021

Dowel Pin .25 OD x 1.2

$4.49

$

In Stock, Qty 15

0

53

White Outdoor 917-04126

Worm Shaft .75 OD

$79.99

$

In Stock, Qty 11

0

54

White Outdoor 917-04861

Worm Gear 20T (22", 24" & 26")

$43.99

$

In Stock, Qty 20+

0

54

White Outdoor 917-0528A

Worm Gear 20T (28" & 30")
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

55

White Outdoor 718-04071

Thrust Collar

$7.99

$

In Stock, Qty 9

0

56

White Outdoor 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 721-0327

Oil Seal .75 x 1 x .131

$6.99

$

In Stock, Qty 20+

0

58

White Outdoor 936-0351

Flat Washer .76 ID x 1.5 OD x .03
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 736-3084

Fl. Washer .510 x 1.120 x .060

$4.99

$

In Stock, Qty 20+

0

60

White Outdoor 741-0663

Flange Bearing .75 ID x 1.0 OD x .925

$9.99

$

In Stock, Qty 20+

0

61

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

62

N/A

Loctite Sealant 5699

$

$

Not available

63

N/A

Grease - Alvania EP Lead Free

$

$

Not available

64

White Outdoor 731-05984A

Reversible Slide Shoe, Polymer

$30.99

$

In Stock, Qty 16

0

64

White Outdoor 753-06205

Deluxe Polymer Reversible Shoe Kit

Note: (Will replace 731-05984A, includes hardware & 2 shoes)

$45.99

$

In Stock, Qty 5

0

65

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75 (w/steel slide shoes)

$4.49

$

In Stock, Qty 20+

0

65

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.0 (w/ polymer slide shoes)

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 731-06439

Small/Standard Polymer Reversible Slide Shoe

$21.99

$

In Stock, Qty 19

0

66

White Outdoor 753-06206

Standard Polymer Reversible Shoe Kit

Note: (Will replace 731-06439, includes hardware & 2 shoes)

$54.99

$

In Stock, Qty 8

0

67

White Outdoor 936-0159

Flat Washer .349 ID x .879 OD x .063
(Superseded to 736-0159)

$

$

Not available

68

White Outdoor 684-04270-0606

24"Auger Housing Majestic Orange
(Superseded to 684-04270A-0606)

Note: Columbia Model

$555.99

$

Usually ships in 3-6 days

0

68

White Outdoor 684-04271-0606

26"Auger Housing Majestic Orange
(Superseded to 684-04271A-0606)

Note: Columbia Model

$246.99

$

Usually ships in 3-6 days

0

68

White Outdoor 684-04272-0606

28"Auger Housing Majestic Orange
(Superseded to 684-04272A-0606)

Note: Columbia Model

$280.99

$

Usually ships in 3-6 days

0

68

White Outdoor 684-04273-0606

30"Auger Housing Majestic Orange
(Superseded to 684-04273A-0606)

Note: Columbia Model

$288.99

$

Usually ships in 3-6 days

0

69

White Outdoor 790-00120-0606

24" Shave Plate Majestic Orange
(Superseded to 790-00120-0637)

Note: Columbia Model

$34.99

$

In Stock, Qty 20+

0

69

White Outdoor 790-00121-0606

26" Shave Plate Majestic Orange
(Superseded to 790-00121-0637)

Note: Columbia Model

$36.99

$

In Stock, Qty 20+

0

69

White Outdoor 790-00118-0606

28" Shave Plate Majestic Orange
(Superseded to 790-00118-0637)

Note: Columbia Model

$37.99

$

In Stock, Qty 20+

0

69

White Outdoor 790-00119-0606

30" Shave Plate Majestic Orange
(Superseded to 790-00119-0637)

Note: Columbia Model

$39.99

$

In Stock, Qty 20+

0

70

White Outdoor 711-04285

24" Auger Axle
(Superseded to 711-04285A)

$90.99

$

In Stock, only 3 left!

0

70

White Outdoor 711-04284

26" Auger Axle
(Superseded to 711-06144)

$82.99

$

In Stock, Qty 6

0

70

White Outdoor 711-04283

28" Auger Axle
(Superseded to 711-06145)

$89.99

$

In Stock, only 2 left!

0

70

White Outdoor 711-04282

30" Auger Axle
(Superseded to 711-04282A)

$112.99

$

Usually ships in 3-6 days

0

71

White Outdoor 918-04171B

24" Gearbox Assembly
(Superseded to 918-04171C)

$407.99

$

In Stock, only 2 left!

0

71

White Outdoor 918-04172B

26" Gearbox Assembly
(Superseded to 918-04172C)

$434.99

$

Usually ships in 3-6 days

0

71

White Outdoor 918-04173A

28" Gearbox Assembly
(Superseded to 918-04173B)

$331.99

$

In Stock, only 1 left!

0

71

White Outdoor 918-04165A

30" Gearbox Assembly
(Superseded to 918-04165B)

$447.99

$

In Stock, only 3 left!

0

72

White Outdoor 731-04870

Spacer 1.25 x .75 x 1.00

Note: 24",26" & 28" Models

$4.99

$

In Stock, Qty 20+

0

72

White Outdoor 731-04871

Spacer 1.25 x 75 x 2.00

Note: 30" Models Only

$6.99

$

In Stock, Qty 20+

0
